Connecting the Battery

The UPS is shipped with the battery disconnected. The battery must be connected for the UPS to
operate; this should be done prior to connecting the UPS to AC mains or connecting any
equipment to the UPS. Follow the installation procedure below:

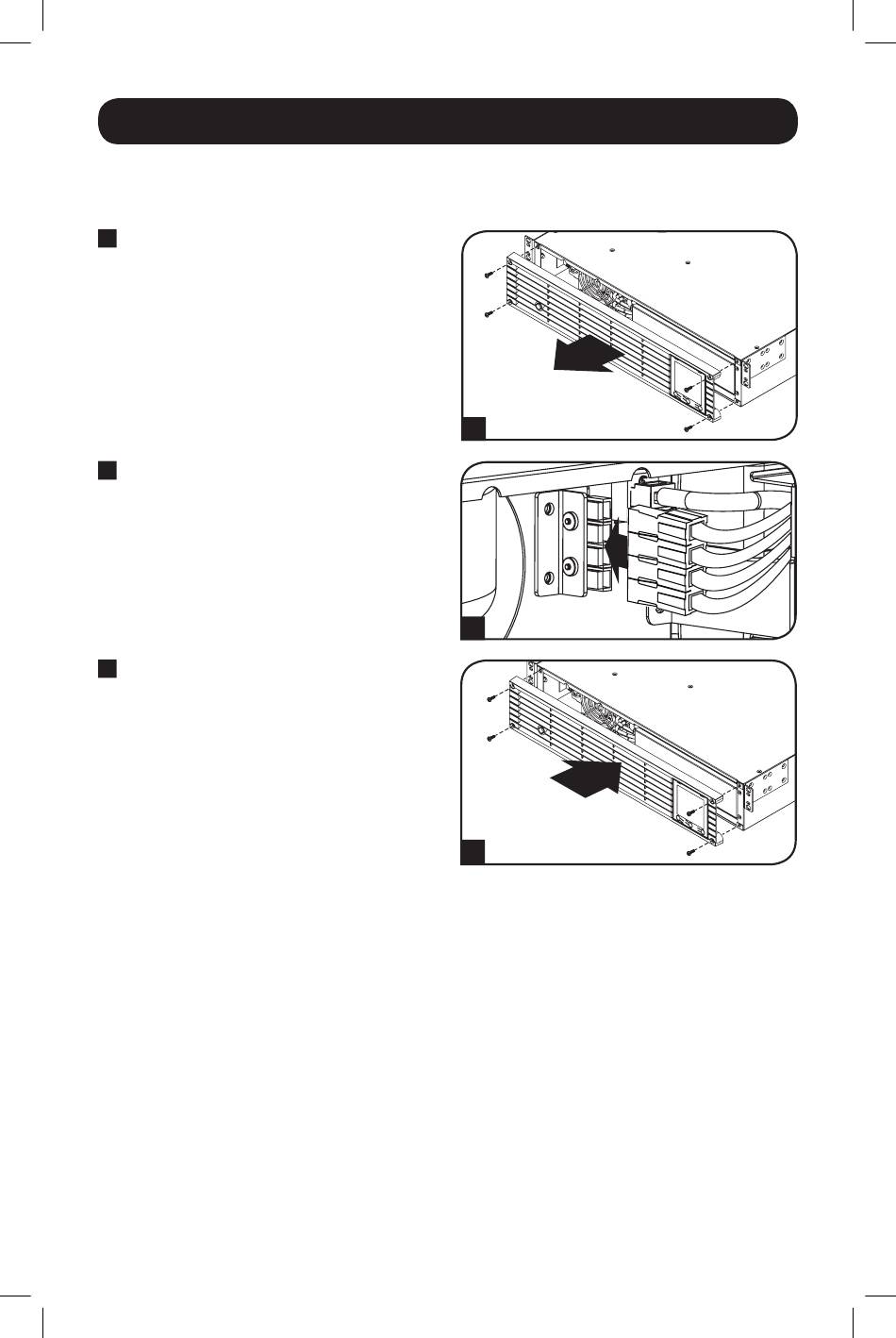

Remove Front Panel.
1
Connect Batteries.
2
Attach both sets of connectors as shown:
black-to-black and red-to-red.
Always ensure that the battery
terminals are properly secured.
Replace Front Panel.
3
18-01-271-933440.indb 4
1
4 x screws
2
3
4 x screws
4
