Installation

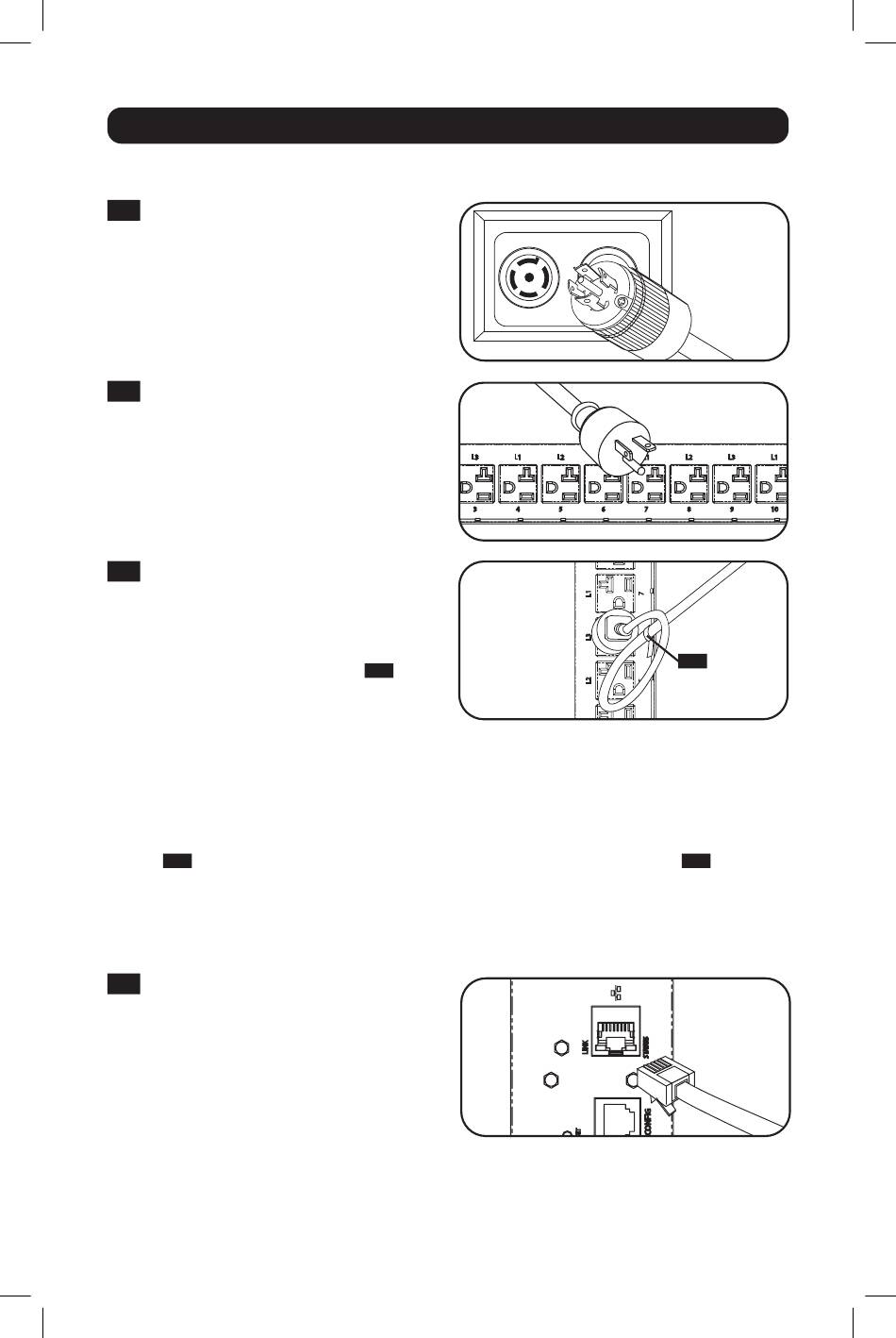

Connecting the PDU

2-1 Connect the input plug to your facility's
compatible AC power source.
2-2 Both models contain 3 banks of output
receptacles (3 banks of 12 NEMA
5-20Rs). Connect your equipment's
input plugs to the appropriate outlets on
the PDU.
2-3 (Optional) If you attached the cord
retention bracket(s), tie each equipment
power cord to the retention bracket.
Attach each cord to the retention shelf
by looping the cord and securing it with
one of the included cable ties
Make sure each cord can be unplugged
from the PDU without removing the
cable tie.

Networking the PDU

Note: The MAC address of the PDU (a 12-digit string in this format: 000667xxxxxx) is printed on a label at-
tached to the PDU enclosure.
If your network's DHCP server will assign a dynamic IP address to the PDU automatically, go
to Step . If you will assign a static IP address to the PDU manually, go to Step
3-1
are uncertain which method to use, contact your network administrator for assistance before
continuing the installation process.

Dynamic IP Address Assignment

3-1 Connect PDU to Network: While the
PDU is powered, connect a standard
Ethernet patch cable to the RJ-45
Ethernet port on the PDU.
Note: This port is not compatible with PoE
(Power over Ethernet) applications. The PDU
will attempt to obtain an IP address via DHCP .
This may take as long as several minutes,
depending on your network environment.
