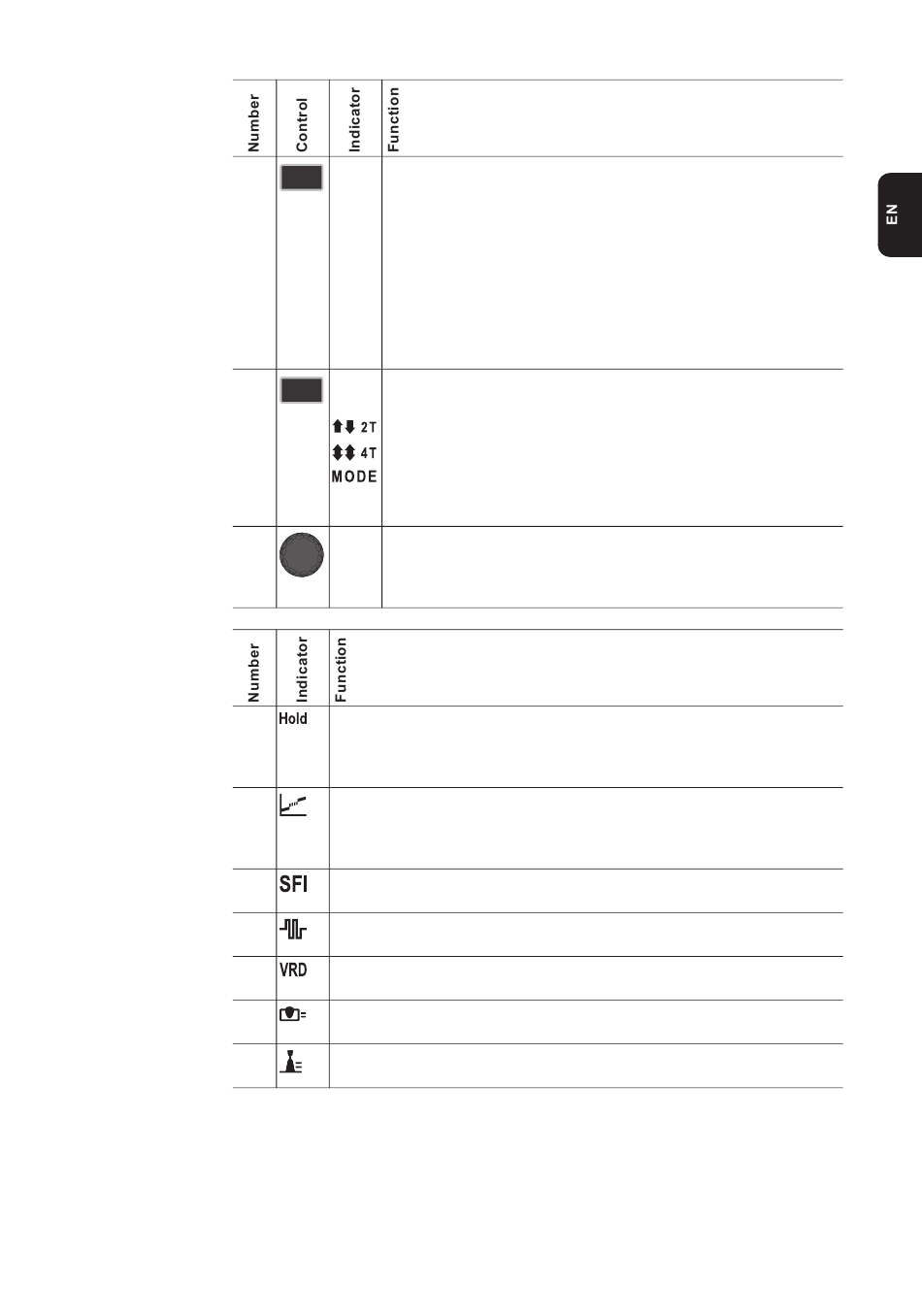

(5) Welding process button
for selecting the welding process
-
-
-
-
-
-
(6) Mode button
for selecting the operating mode
2-step mode
4-step mode
Depending on the function package, various special operating
modes can be selected. Press the button to see the available op-
erating modes shown on the display one after the other
(7) Adjusting dial with turn/press function
-
-
(8) Hold indicator
the actual values are displayed automatically at the end of each welding
operation (current, voltage, wire feed speed, etc.). The actual values are
displayed through the HOLD indicator lighting up.
(9) Intermediate arc indicator
a spatter-prone intermediate arc occurs between the short arc and the
spray arc. The intermediate arc indicator lights up to draw attention to this
critical area.
(10) SFI (Spatter Free Ignition) indicator
lights up when the Spatter Free Ignition function is active
(11) SynchroPuls indicator
lights up when the SynchroPuls function is active
(12) VRD (Voltage Reduction Device) indicator
lights up when the voltage reduction device (VRD) is active
(13) Penetration stabiliser indicator
lights up when the penetration stabiliser function is active
(14) Arc length stabiliser indicator
lights up when the arc length stabiliser function is active
PULS SYNERGIC - MIG/MAG pulse synergic welding
SYNERGIC - MIG/MAG standard synergic welding
MANUAL - MIG/MAG standard manual welding
JOB - Job Mode
STICK - Manual metal arc welding
SP (SP = special programs: LSC, PMC, TIG, etc.) - Depending
on which package of functions is enabled, various welding pro-
cesses can be selected. Press the button to see the available
welding processes shown on the display one after the other
for changing the material thickness, current, wire feed speed
and special function parameters
for selecting and changing parameters in the Setup menu
