RC Panel Basic controls

General

Adjuster func-

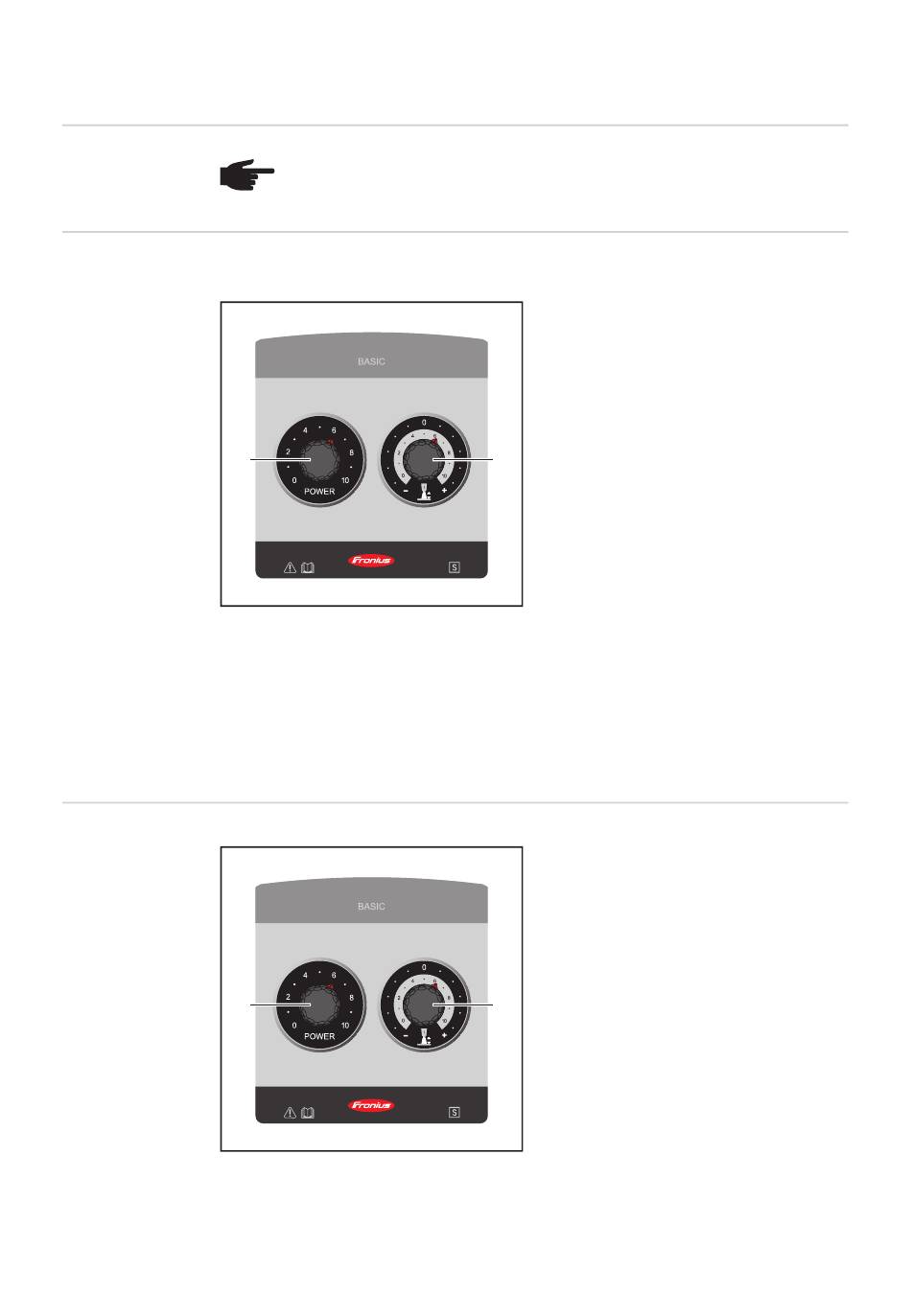

The adjuster performs different functions depending on the welding process.
tions during MIG/
MAG welding
(1)
(2)
Adjuster func-
tions during elec-
trode welding
(1)
20
All manuals and user guides at all-guides.com
NOTE! See the power source operating instructions for more details of the weld-
ing parameters listed below.
- Correcting the arc length
(during MIG/MAG synergic welding - Standard, Puls, PMC, LSC)
- = shorter arc length
0 = neutral arc length
+ = longer arc length
- Setting the welding voltage
(during MIG/MAG standard manual welding)
(1) - Setting the welding power
(during MIG/MAG synergic
welding - Standard, Puls,
PMC, LSC)
- Setting the wire feed speed
(during MIG/MAG standard
manual welding)
(2)
(1) Setting the welding current
(2) Influencing the arc-force dynam-
ic:
- 0 = soft, low-spatter arc
- 10 = harder, more stable arc
(2)
