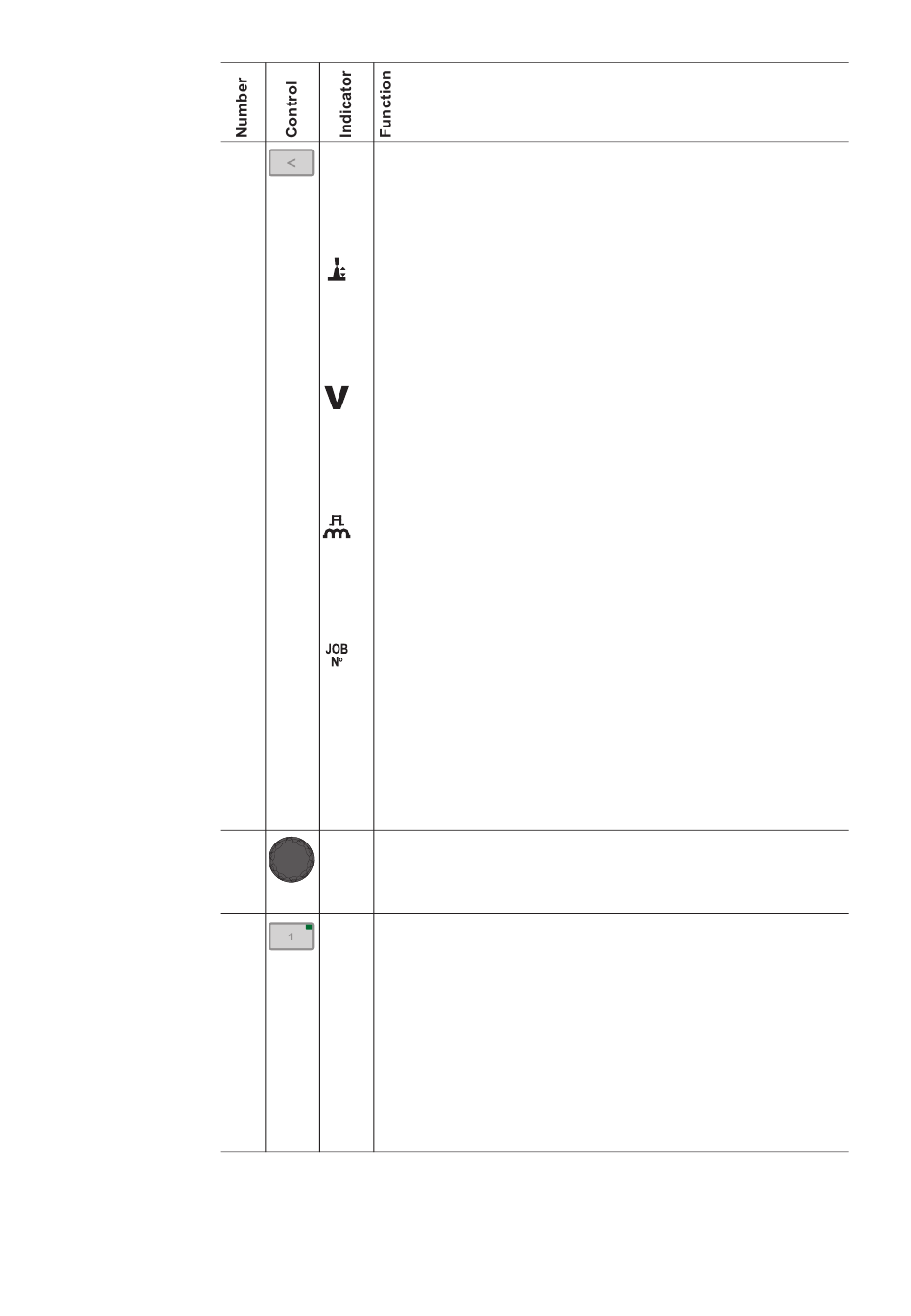

Parameter selection button (right)
for selecting the parameters listed below.
The corresponding indicator lights up when a parameter is select-
ed.
Arc length correction
for correcting the arc length
- ... shorter arc length
0 ... neutral arc length
+ ... longer arc length
Voltage *)
in V
Before the start of welding, the machine automatically displays a
standard value based on the programmed parameters. During
welding, the actual value is displayed.
Pulse/dynamic correction
for correcting the pulse energy during pulsed arc welding
- ... lower droplet detachment force
0 ... neutral droplet detachment force
+ ... increased droplet detachment force
Job number
(can only be selected if the JOB welding process has first been se-
lected using the "Welding process" button (5))
for selecting a job number
*) = Synergic parameter
When a synergic parameter is changed, the synergic function au-
tomatically changes all other synergic parameters to match.
Adjusting dial with turn/press function
- for changing the arc length correction, voltage, pulse/dynamic
correction parameters
- for selecting the job number
EasyJob button
for saving, opening and deleting EasyJobs.
The LED in the button indicates that EasyJob is selected
How it works:
- Press and hold the button for 3 seconds = save EasyJob (all
current settings are saved). After saving, the LED in the button
lights up and 'Store' is shown on the display
- Press and hold the button for 5 seconds = delete EasyJob.
'Store' is shown on the display after 3 seconds, 'Clear' is
shown after 5 seconds and the LED in the button goes out
- Press the button = select the saved EasyJob
