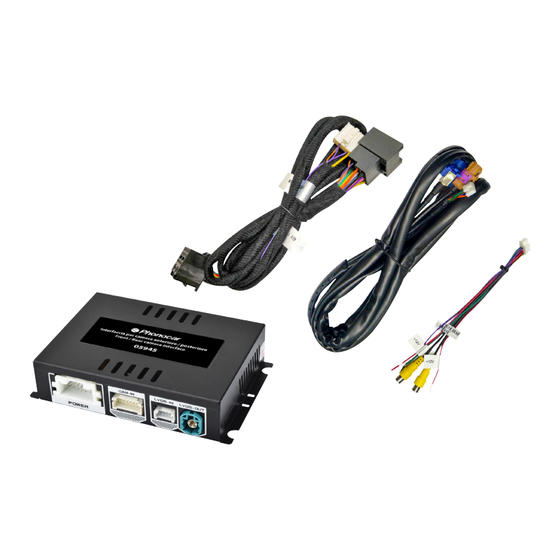

INTERFACCIA TELECAMERA ANTERIORE/POSTERIORE
03/2021
FRONT/REAR CAMERA INTERFACE
Instrucciones para el montaje
Sistema/System SYNC 3.2, 3.3, 3.4, 3.5 TABLET
Sistema/System SYNC 2.5 TABLET
Istruzioni di montaggio
Installation instructions
Instructions de montage
Montageanleitung
05945
FORD
Fiesta 2018>,
Ecosport 2018>,
Transit tourneo 2018 >,
Focus 2018>,
Kuga 2020>,
Puma 2020>.
Fiesta 2019>,
Ka+ 2019>,
Transit tourneo 2018>.
IT
EN
FR
DE
ES

Publicité

loading

Sommaire des Matières pour Phonocar 05945

  • Page 1 05945 INTERFACCIA TELECAMERA ANTERIORE/POSTERIORE FRONT/REAR CAMERA INTERFACE FORD Sistema/System SYNC 3.2, 3.3, 3.4, 3.5 TABLET Fiesta 2018>, Ecosport 2018>, Transit tourneo 2018 >, Focus 2018>, Kuga 2020>, Puma 2020>. Sistema/System SYNC 2.5 TABLET Fiesta 2019>, Ka+ 2019>, Transit tourneo 2018>.
  • Page 2 Utilizzo • Use • Utilisation • Nutzung • Utilizo IT -Dispositivo che permette di collegare una telecamera universale anteriore e/o posteriore (mirror) al monitor originale della auto. EN - Device which allows to connect a universal front and/or rear camera (mirror) to the original monitor of the vehicle.
  • Page 3 Collegamenti • Connections • Branchements • Verbindungen • Conexiones ORIGINAL DISPLAY CABLE REAR CENTRAL DISPLAY UNIT CAR CONNECTOR TRIGGER +12 V REVERSE REAR FRONT CAMERA CAMERA ATTENZIONE in alcune vetture è necessario collegare il filo TRIGGER al +12 V retromarcia (lampadina retromarcia). WARNING on some cars it is necessary to connect the TRIGGER wire to the +12 V reverse gear (reverse gear bulb).
  • Page 4 1 - Pulsar la tecla SOUND durante 3 s para activar el menú de la centralita 2 - Seleccionar las funciones mediante la pantalla táctil. PHONOCAR Via F.lli Cervi, 167/C • 42124 Reggio Emilia (Italy) • Tel. +39 0522 941621 www.phonocar.com • e-mail:info@phonocar.it...
