• Flush out thoroughly supply pipes BEFORE connection to the
flush valve.
• In straight type (inline connection) ensure that water circulation
is in direction of the arrow marked on the body.
• Push on several times to stabilise the timer.
• Push button height / WC pan : 500 mm. minimum
• Flush tube height : 400 mm. minimum with 50° bent minimum.
• Recommended dynamic pressure : 1 to 5 bar
RECESSED TEMPOFLUX :
• Use the recessing box master for wall fitting :
H.170 x L.145 x D.90 Adjustable Depth : 80 à 105 mm. (fig.1)

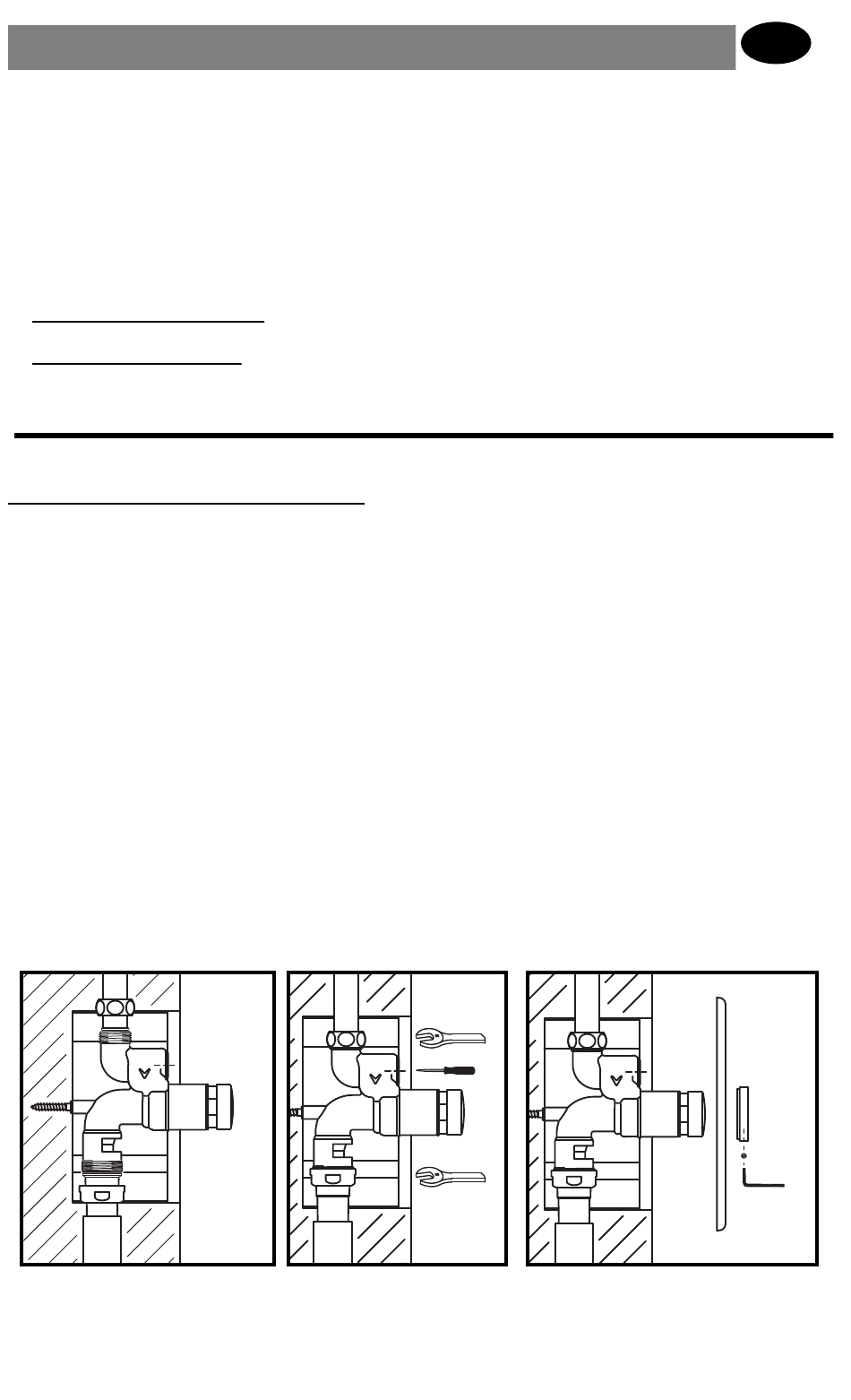

• Screw the flush valve on to the wall (fig.2)
• Connect water supply ø20/22, and install the PVC flush
tube ø32/26 or 32x3, or use the flush tube ref.769400).
Tighten union nuts on water supply and flush tube. (fig.3)
• Push the button to start water flushing, and adjust the flow
rate on adjustable screw during flushing (fig.3).
• Install the wall plate and its ring, with stop screw. (fig.4)
INSTALLATION
fig. 2
fig. 3
GB
fig. 4
