PSI Woodworking Products PKCANKIT5B Instructions

Requires accessories:
- 7mm pen turning mandrel
- 7 mm Drill Bit
#PK-7MM
- Bushings for Candle Holder:
- Bushings for Diner Bell:
#PKMONT-BU

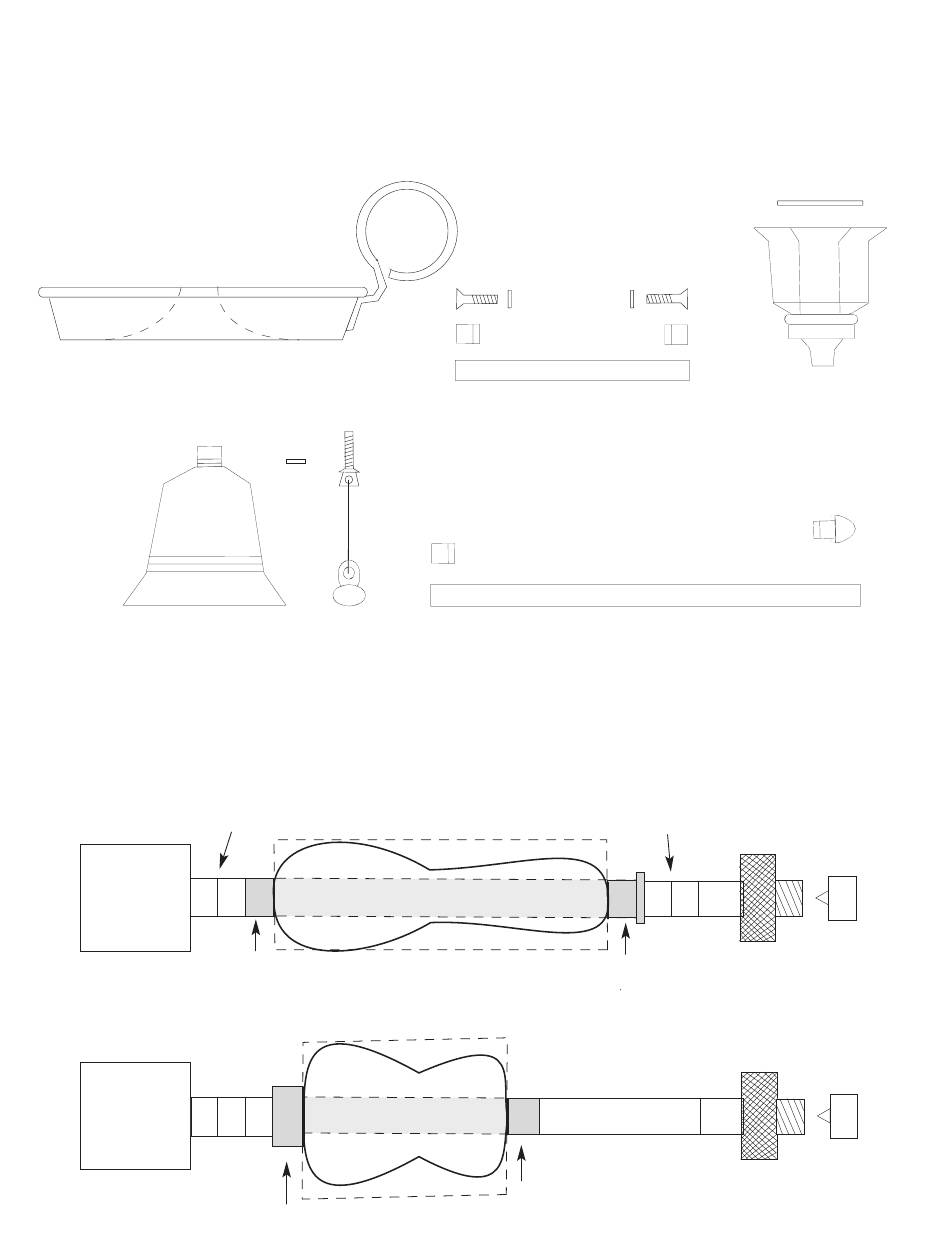

Diagram A: Candle Holder Parts List
Candle Dish
Diagram A: Dinner Bell Parts List
Bell
Preparing to Turn the Blank
• Cut a square blank of 3/4"to 1-1/4"for the candle holder or about
1"for the bell to the length of the brass tube (add 1/16"for squaring off)
• Drill a 7mm center hole lengthwise through the blank
Diagram B: Turning the Blank
BELL
Headstock Spacer Bushings
— — — — — — — — — — — — — — — — — — — — — — — — — — — — — — —
CANDLESTICK
Spacer Bushings
Headstock
— — — — — — — — — — — — — — — — — — — — — — — — — — — — — — —
Classic Candle Holders
Dinner Bell
(use 2 of 3)
#PKBULPENBU
(use 2 of 3)
Washer
Clapper Assembly
Cap Bushing
Mandrel Shaft
Center Bushing
©2003 PSI Woodworking Products - Philadelphia, PA 19115
Instructions for
#PKCANKIT5B & #PKCANKIT5S
#PKBELLG & #PKBELLS
- 7mm Barrel Trimmer
- 2 Part Epoxy Glue or Insta-Cure (Cyanoacrylate)
Overall Length:
Washer
Screw
Cap Nut
2" Brass Tube
Cap Nut
• Spread glue over the tube. Insert the tube into the blank with a
twisting motion to spread the glue evenly inside. Center the tube
lengthwise inside the blank.
• When the glue dries, square the ends of the blanks. Use a 7mm barrel
trimmer to trim the wood down to the brass tube.
Blank
Mandrel Shaft
Blank
Upper
Cap Bushing
#PKTRIM7
Dinner Bell - 5-7/8"
Candle - 4-5/16"
Washer
Screw
Cap Nut
3-1/2" Brass Tube
Spacer Bushings Lock Nut Live Center
Center Bushing
Spacer
Protective Disk
Candle Cup
End Cap
