Steam Punk Bolt Action Pen Kit
Kit Features:
• Easy to turn with straight tubes
• Minimum parts - easy to assemble
• Available in multiple fi nishes
• Decorative Hand Made Components
• Uses Parker® Style Refi ll
• Overall Length: 6" Long
Required Accessories:
• 7mm Pen Mandrel
• Drill Bit: 3/8" #PKEXEC-38
• Bushing set(2 pc): #PKVICBU (use 2 of 3 in set)
• Barrel Trimming set: #PKTRIM38
• Live Tailstock Center or Mandrel Saver tailstock Center
• Live Tailstock Center or Mandrel Saver tailstock Center
• 2 Part Epoxy Glue or Insta Cure (Cyanoacrylate) Glue
• 2 Part Epoxy Glue or Insta Cure (Cyanoacrylate) Glue
• Pen Blank: Minimum Size: 3/4" x 2-1/4"
Front End Assembly
Spring
Preparing the Blank:
• Cut 1 blank to the length of the tube and add 1/16" for squaring off.
• Drill a 3/8" hole lengthwise through the blank.
• Spread glue over the tube, insert the blank with a twisting motion to spread the glue evenly inside.
• Center the tube lengthwise inside the blank.
• When the glue is dry, square the ends of the blanks. Use a 3/8" barrel trimmer shaft, or a universal pen blank squar-
ing jig with a power disc sander. Take the excess material down fl ush with the ends of the brass tube. (do not trim
beyond the length of the tube since this may interfere with operation of the mechanism and assembly). Use a barrel
trimmer to clean the inside of the tube.

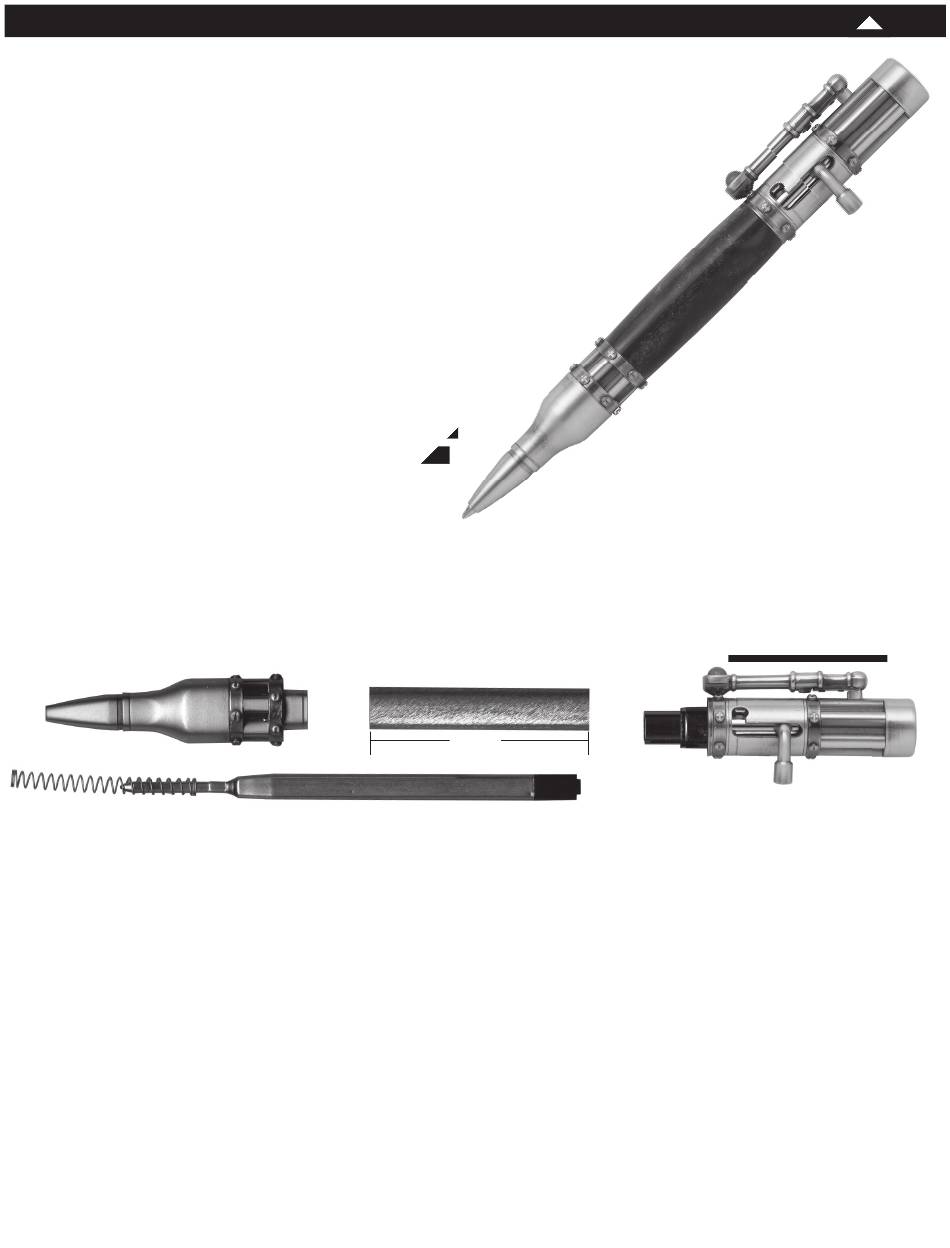

DIAGRAM A / PARTS LAYOUT
Tube/Barrel
1.85"
Refi ll
PSI Woodworking Products
PSI Woodworking Products
Back End Assembly
Back End Assembly
