Safety Instructions
. . . . . . . . . . . . .2-5
Clock and Timer . . . . . . . . . . . . . . . .15
Convenience Outlet . . . . . . . . . . . . .11
Oven . . . . . . . . . . . . . . . . . . . . . . .12-14
Broiling Guide . . . . . . . . . . . . .13, 14
Oven Controls . . . . . . . . . . . . . . .10, 11
Sabbath Feature . . . . . . . . . . . . .18, 19
Self-Cleaning . . . . . . . . . . . . . . . .22, 23
Special Features . . . . . . . . . . . . . . . . .17
Surface Units . . . . . . . . . . . . . . . . . 6-9
Temperature Conversions . . . . . . . .11
Thermostat Adjustment-
Do It Yourself . . . . . . . . . . . . . . . . . . .19
Roasting Features . . . . . . . . . . . . . . .16
Warming Drawer . . . . . . . . . . . . .20-21
. . . . . . . . . 24-29
. . . . . . . . 34-38
. . . . . . . . . . . . . . . . . . . . 40
Consumer Support
Consumer Support . . . . . . . . . . . . . 44
Product Registration . . . . . . . . . 41, 42
Warranty . . . . . . . . . . . . . . . . . . . . . . 43
Write the model and serial
numbers here:
# ______________
Model
# ______________
Serial
You can find them on a label
behind the storage drawer
on the range frame.
. . . . . 30-33

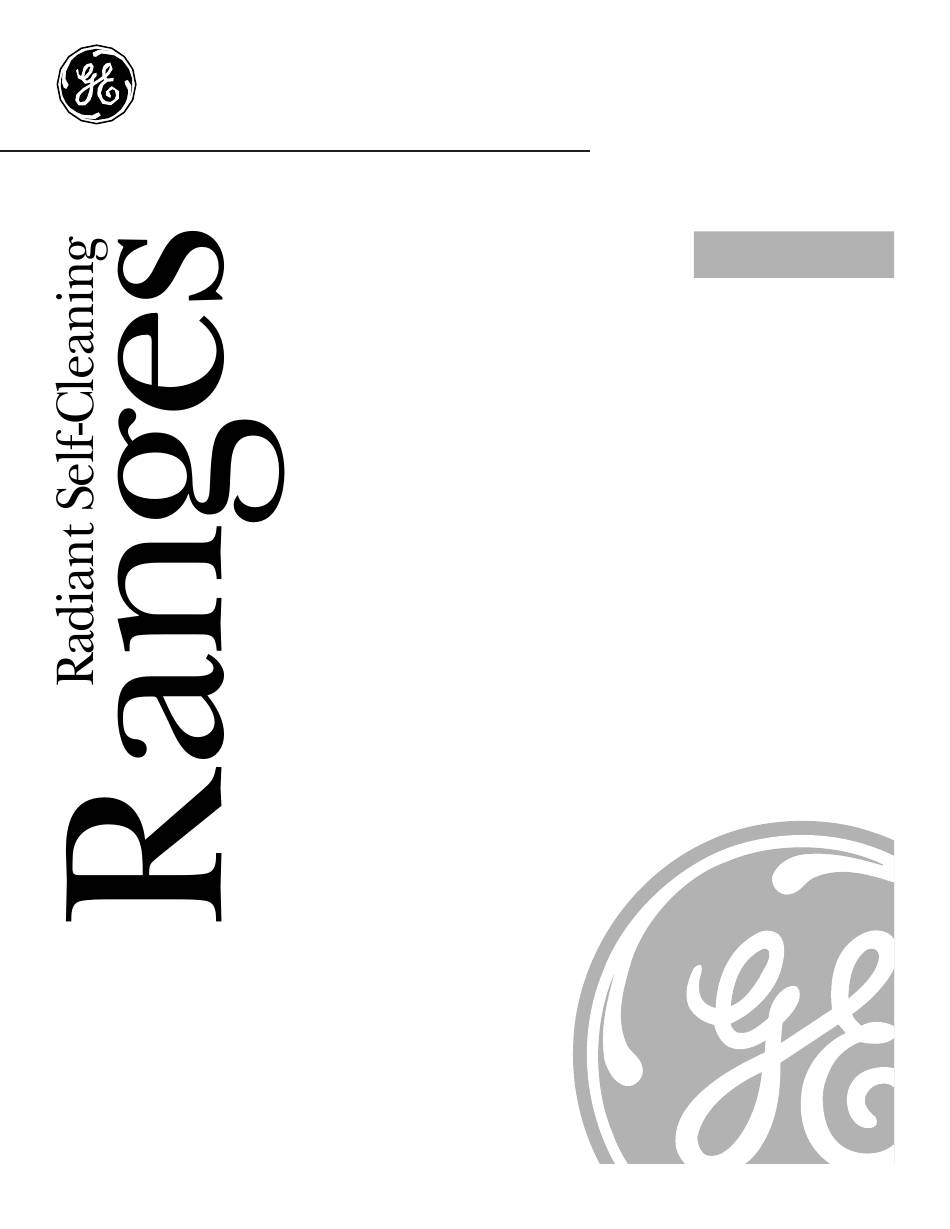

Owner's Manual and
Installation Instructions
JCBP62
JCBP65
JCBP66
JCBP67
JCBP68
JCBP70
JCBP71
JCBP78
JCBP80
JCBP83
JCB710
29-5560 04-07 JR
