Brigade VBV-7104FM Guide D'installation Rapide

Vehicle cctv monitor
Masquer les pouces Voir aussi pour VBV-7104FM:

Publicité

Liens rapides

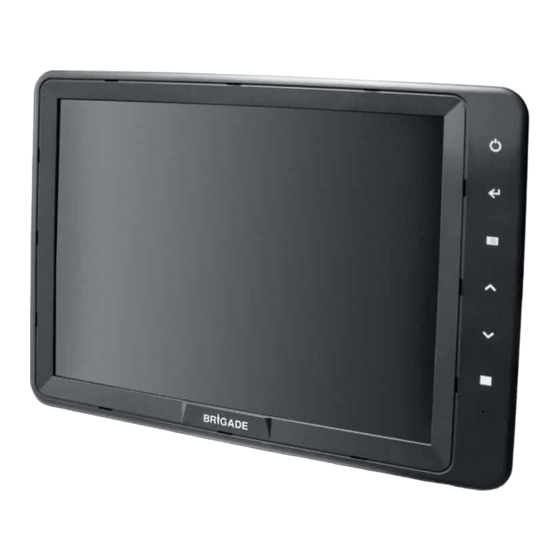

VBV-7104FM vehicle CCTV monitor
Quick installation guide
Guide d'installation rapide
Kurzanleitung
Guida di installazione rapida
Guía rápida de instalación
Snelle installatie handleiding
Guia rápida de instalação
Stock code #4571

Publicité

loading

Sommaire des Matières pour Brigade VBV-7104FM

  • Page 1 VBV-7104FM vehicle CCTV monitor Quick installation guide Guide d’installation rapide Kurzanleitung Guida di installazione rapida Guía rápida de instalación Snelle installatie handleiding Guia rápida de instalação Stock code #4571...
  • Page 2 Contents Contenu/Inhalt/Contenuti/Contenidos/inhoud/Conteúdo VBV-7104FM-M BMM-015 VBV-7104FM-SS BMM-023 VBV-7X0FM-RC VBV-7104FM-CA...
  • Page 3 Monitor installation Surveiller l’installation/Monitor-Einbau/L’installazione del monitor/ Instalación del monitor/Monitor installatie/ Instalação do monitor 75mm VESA M5x6mm...
  • Page 4 Connections Connexions/Anschlüsse/Connessioni/Conexiones/Aansluitingen/Conexão CA1 CA2 CA3 CA4 Camera Trigger White Blue Green Brown Caméra Déclencher Blanc Bleu Vert Brun Kamera Trigger Weiß Blau Grün Braun Telecamera Attivare Bianco Verde Marrone Cámara Desencadenar Blanco Azul Verde Marrón Camera Trekker Blauw Groen Bruin Câmera Gatilho Branco...
  • Page 5 Controls Contrôles/Bedienung/Controlli/Controles/Controles/Controles =OK / Remote control receiver. Récepteur de la télécommande. Empfänger für Fernbedienung. Ricevitore per telecomando. Receptor de control remoto. Afstandsbediening ontvanger. Receptor de controle remoto. Automatic low light sensor. Capteur optique automatique de basse luminosité. Licht Sensor. Sensore automatico di bassa luminosità. Sensor automático de baja luminosidad.
  • Page 6 Operation Opération/Betrieb/Operazione/Operación/Werking/Operação MAIN MENU MAIN MENU OSD SETUP CAMERA SETUP CAMERA SETUP MARKER SETUP SETUP BEEP SYSTEM SETUP SYSTEM SETUP INPUT SCAN TRIGGER SETUP TRIGGER SETUP BOUNDARY WHITE TRIGGER PRIORITY TRIGGER PRIORITY LANGUAGE ENGLISH SPLIT SETUP SPLIT SETUP <SOFTWARE VERSION> RESET RESET Button lock...
  • Page 7 Operation Opération/Betrieb/Operazione/Operación/Werking/Operação Split setting Mise en diviser/Split-Einstellung/Impostazione Divisione/Ajuste de la Division/ Split instelling/Definir Divisão MAIN MENU MAIN MENU SPLIT SETUP CAMERA SETUP CAMERA SETUP DOUBLE SCREEN 1 SETUP SETUP DOUBLE SCREEN 2 SYSTEM SETUP SYSTEM SETUP TRIPLE SCREEN 1 TRIGGER SETUP TRIGGER SETUP...
  • Page 8 Operation Opération/Betrieb/Operazione/Operación/Werking/Operação Trigger setting Paramètre de déclenchement/Trigger-Einstellung/Impostazione trigger/ Configuración de disparadores/Drempelwaarde/Configuração de acionadores MAIN MENU MAIN MENU TRIGGER SETUP CAMERA SETUP CAMERA SETUP TURN IMAGE FULL SETUP SETUP REAR IMAGE SYSTEM SETUP SYSTEM SETUP TRIGGER DELAY TRIGGER SETUP DOUBLE SCREEN TRIGGER SETUP TRIGGER...
  • Page 9 Specifications Spécifications/Spezifikationen/Specifiche/Especificaciones/ Specificaties/ Especificações ENGLISH FRANÇAIS Specifications Specifications Monitor VBV-7104FM Moniteur VBV-7104FM TV system NTSC / PAL Système TV NTSC / PAL Picture 10.4" Digital TFT LCD colour Image 10,4" Numérique TFT LCD monitor with on-screen display moniteur couleur avec affichage...
  • Page 10 Specifications Spécifications/Spezifikationen/Specifiche/Especificaciones/ Specificaties/Especificações ESPAÑOL NEDERLANDS Especificaciones Specificaties Monitor VBV-7104FM Monitor VBV-7104FM Sistema de TV NTSC / PAL TV-systeem NTSC / PAL Imagen Monitor a color de 10,4" digital Beeld 10,4" digitale TFT LCD TFT LCD con visualización de las kleurenmonitor met on-screen...
  • Page 11 Brigade y sus distribuidores comerciales no way be attached to Brigade or to the distributor. se responsabilizan de cualquier daño derivado del uso o de un mal funcionamiento del producto.
  • Page 12 2682.VBV-7104M...
