SAFETY INFORMATION
Please read and understand this entire manual before attempting to assemble, operate or install
the product.
• Do not allow children to climb or play in or around this product.
• Use this unit for its intended purpose only. Do not use shelves as step ladder.
• To avoid damage, assemble the product on a sturdy, level and protective surface.
• Two or more persons must work together to install the unit onto the wall.
• Make sure all bolts/screws are tightly fastened before the unit is used.
• Check bolts/screws periodically and tighten them if necessary.
• Each shelf maximum load: 30 lbs.
WARNING
THIS UNIT IS INTENDED FOR USE ONLY WITH THE MAXIMUM WEIGHTS INDICATED. USE
WITH PRODUCTS HEAVIER THAN THE MAXIMUM WEIGHTS INDICATED MAY RESULT IN
INSTABILITY CAUSING POSSIBLE INJURY. DISTRIBUTE WEIGHT EVENLY.
PREPARATION
Before beginning assembly of product, make sure all parts are present. Compare parts with package
contents list and hardware contents list. If any part is missing or damaged, do not attempt to
assemble the product.
Estimated Assembly Time: 60 minutes
Tools Required for Assembly (not included): Phillips Screwdriver, Power Drill, 3/16 in. Drill Bit, 3/8 in.
Drill Bit, 1/2 in. Socket Wrench, Level, Stud Finder, Marking Pencil, Tape Measure, Step Ladder and
Hammer.

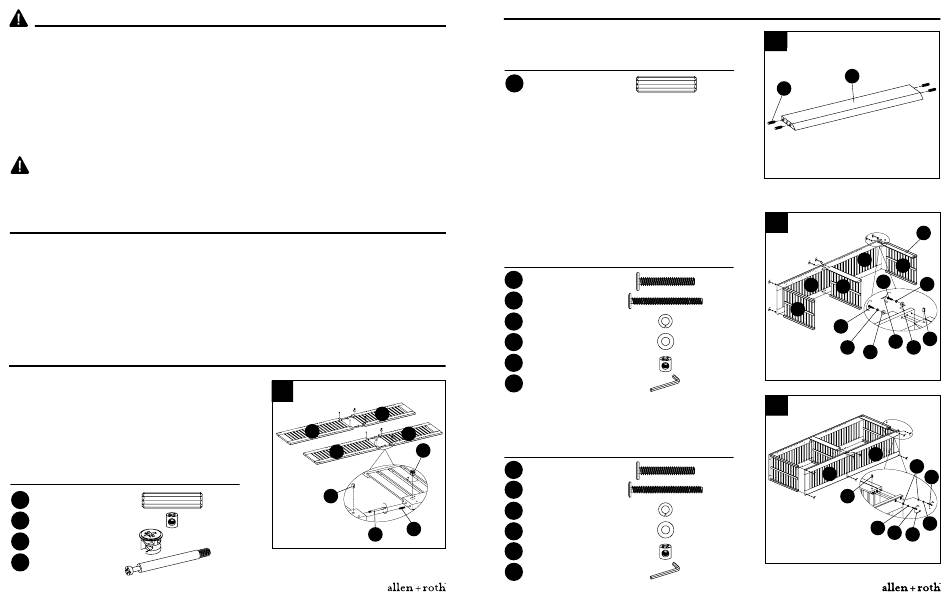

ASSEMBLY INSTRUCTIONS
1. Insert barrel nuts (HH), wood dowels (GG) and
large cam bolts (NN) into upper left side panel (B) and
upper right side panel (C) as shown. Then, attach upper
left side panel (B) and upper right side panel (C) to lower
left side panel (I) and lower right side panel (J). Insert
large cam locks (MM) into lower left side panel (I) and
lower right side panel (J) to secure panel assembly.
Hardware Used
GG
Wood Dowel
HH
Barrel Nut
MM
Large Cam Lock
NN
Large Cam Bolt
1
I
B
C
HH
x 4
x 4
NN
x 4
x 4
Lowes.com/allenandroth
4
ASSEMBLY INSTRUCTIONS
2. Insert wood dowels (GG) into mounting cleat (F).
Hardware Used
GG
Wood Dowel
3. Insert barrel nut (HH) into mounting cleat (F). Secure
mounting cleat (F), beveled edge down, to upper right side
panel (C) and lower right side panel (J) where shown with
lock washers (CC), small flat washers (DD) and M6 x 60 mm
bolts (BB). Then, attach the middle fixed shelf (H) and top/
bottom fixed shelves (D) to upper right side panel (C) and
lower right side panel (J) with lock washers (CC), small flat
washers (DD) and M6 x 40 mm bolts (AA). Tighten all
connections with Allen wrench (KK).
Hardware Used
AA
M6 x 40 mm Bolt
BB
M6 x 60 mm Bolt
CC
Lock Washer
DD
Small Flat Washer
HH
Barrel Nut
KK
Allen Wrench
4. Repeat step 3 for upper left side panel (B) and
lower left side panel (I).
J
MM
Hardware Used
AA
M6 x 40 mm Bolt
BB
M6 x 60 mm Bolt
CC
Lock Washer
GG
DD
Small Flat Washer
HH
Barrel Nut
KK
Allen Wrench
2
F
x 4
GG
3
C
x 7
AA
J
H
x 1
D
x 8
BB
x 8
KK
CC
DD
x 1
x 1
4
B
x 7
I
x 1
HH
x 8
CC
x 8
BB
x 1
x 1
Lowes.com/allenandroth
Lowes.com/allenandroth
5
F
D
CC
HH
DD
DD
AA
CC
KK
