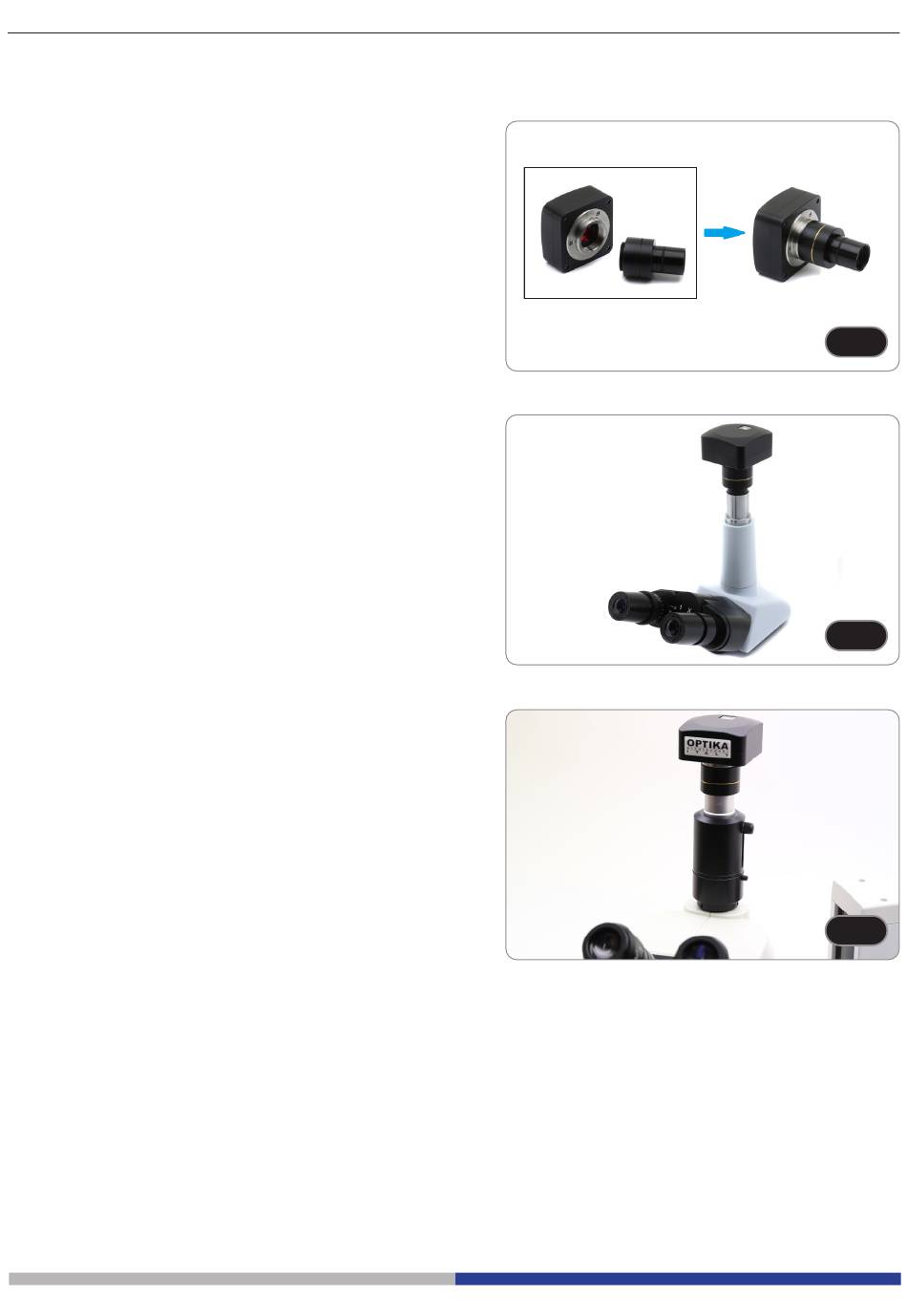

7.3.2 Connection to trinocular port using projection lens

1. Remove the dust cover from camera and from projec-
tion lens.
2. Screw the projection lens to the camera's thread. (Fig.
4)
Installing on biological microscopes
3. Insert the final part of the projection lens into the empty
hole of the photo tube. (Fig. 5)
Installing on stereo microscopes
4. Insert the final part of the projection lens into the empty
hole of the photo tube. (Fig. 6)
Page 7
F ig. 4
F
ig. 4
F ig. 5
F
ig. 5
F ig. 6
F
ig. 6
