INSTRUCTION MANUAL FOR WIRE WELDING MACHINE

IMPORTANT
READ THIS MANUAL AND THE SAFETY RULES MANUAL
CAREFULLY BEFORE INSTALLING, USING, OR SERVICING
THE WELDING MACHINE, PAYING SPECIAL ATTENTION
TO SAFETY RULES. CONTACT YOUR DISTRIBUTOR IF
YOU DO NOT FULLY
INSTRUCTIONS.
This machine must be used for welding only. It must not be
used to defrost pipes.
It is also essential to pay special attention to the "SAFETY
RULES" Manual. The symbols next to certain paragraphs
indicate points requiring extra attention, practical advice or
simple information.
This MANUAL and the "SAFETY RULES" MANUAL must be
stored carefully in a pica familiar to everyone involved in using
the machine. They must be consulted whenever doubts arise
and be kept for the entire lifespan of the machine; they will also
be used for ordering replacement parts.
1. GENERAL DESCRIPTION
1.1. SPECIFICATIONS
This manual has been prepared for the purpose of educating
personnel assigned to install, operate and service the welding
machine.
This equipment is a constant-voltage power source, suitable
for MIG/MAG and OPEN-ARC welding.
Upon receiving the machine, make sure there are no broken or
damaged parts.
The purchaser should address any complaints for losses or
damage to the vector. Please indicate the article and serial
number whenever requesting information about the welding
machine.

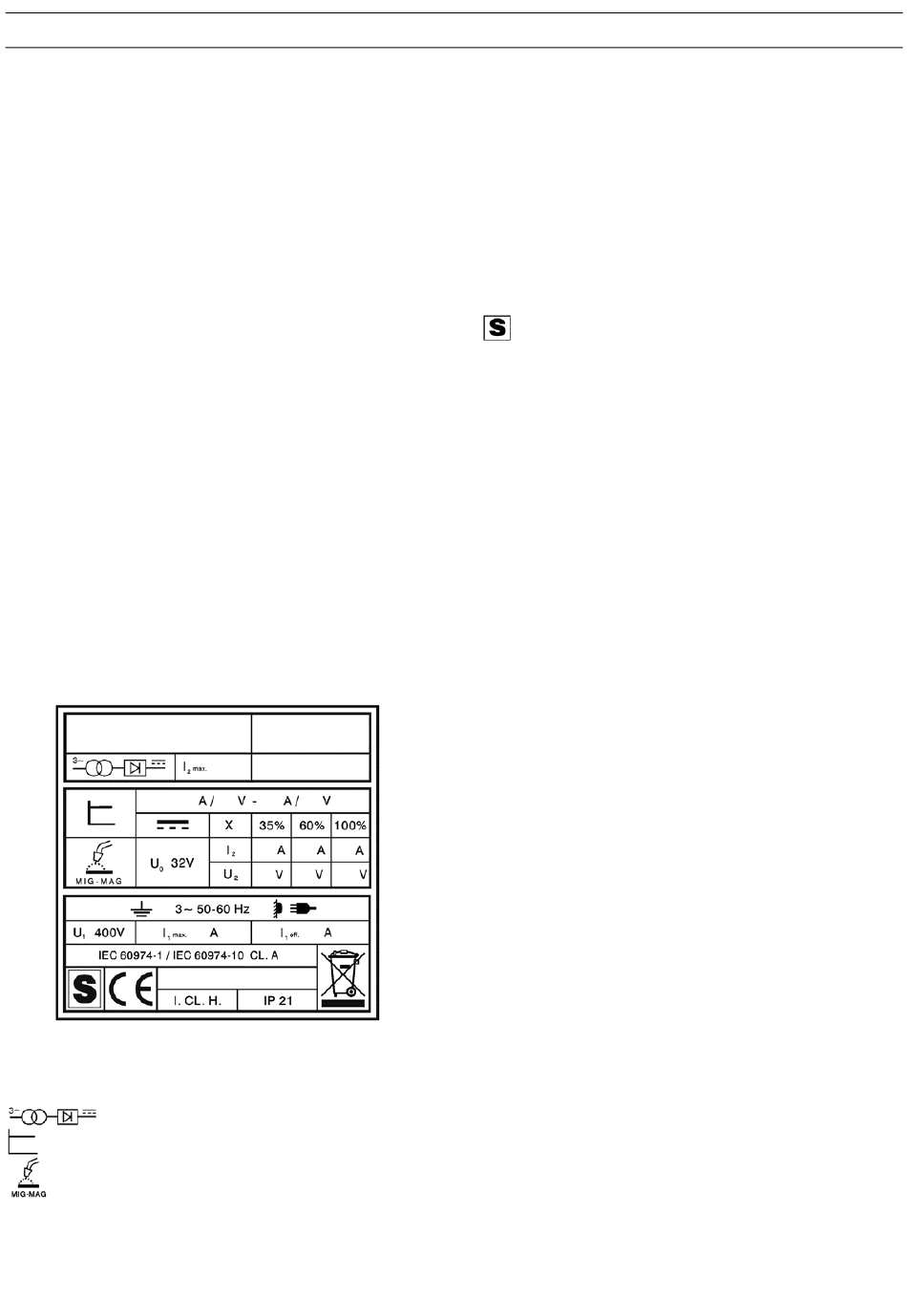

1.2. EXPLANATION OF TECHNICAL SPECIFICATIONS
IEC60974.1 The welding
IEC60974.10 according
standards.
Cl. A Machine for professional and industrial use.
Three-phase transformer-rectifier.
Flat characteristic.
Suitable for continuous electrode welding.
I max Unconventional welding current. This value
2
represents the max. limit attainable in welding.
U0 Secondary open-circuit voltage.
X Duty cycle percentage.
UNDERSTAND THESE
machine is manufactured
to these international
The duty cycle expresses the percentage of 10
minutes during which the welding machine may
run at a certain current without overheating.
I Welding current.
2
U Secondary
2
I .
2
U Rated supply voltage
1
3~ 50/60Hz 50- or 60-Hz three-phase power supply.
I max Maximum absorbed current value.
1
I eff This is the maximum value of the actual
1
current absorbed, considering the duty cycle.
IP21 Protection rating for the housing.
Grade 1 as the second digit means that
this equipment is suitable for use outdoors in
the rain.
Suitable for use in high-risk environments.
NOTES: The welding machine has also been designed for use
in environments with a pollution rating of 3. (See IEC 664).
1.3. OVERLOAD CUT-OUT
This machine is protected by a thermostat, which prevents the
machine from operating if the allowable temperatures are
exceeded. In these conditions the fan continues to operate and
the lamp A lights.
2. INSTALLATION
• Only skilled personnel should install the machine.
• All connections must be carried out according to current
regulations, and in full observance of safety laws.
Make sure that the supply voltage corresponds to the value
indicated on the power cable. If it is not already fitted, connect
a plug suited to the power cable, making sure that the
yellow/green conductor is connected to the earth pin.
The capacity of the overload cut-out switch or fuses installed in
series with the power supply must be equivalent to the
absorbed current I1 max. of the machine.
2.1. PLACEMENT (pict. 1 and 2)
Mount the handle, wheels. The handle must not be used for
lifting the welding machine.
Place the welding machine in a ventilated area.
Dust, dirt, and any other foreign matter entering the welding
machine can interfere with ventilation and thus with smooth
operation.
Therefore, in relation to the environment and working
conditions, it is important to keep the internal parts clean.
Clean using a jet of dry, clean air, being careful to avoid
damaging the machine in any way.
Before working inside the welding machine, make sure it is
unplugged from the power mains.
Any intervention carried out inside the welding machine must
be performed by qualified personnel.
To make firm the cylinder on the back of the machine, mount
the M8x16 screw and the corresponding box nut supplied with
the equipment as shown in picture 2.
2.2. EXTERNAL CONNECTIONS
2.2.1 Connecting the mass clip.
• Connect the earth clamp to the workpiece.
2.2.2 Cylinder placement and connecting the gas hose
• Position the cylinder on the cylinder holder of the welding
machine, using the chains provided to fasten it to the top panel
of the machine.
• The gas cylinder must not be higher than 1 m, to avoid
creating hazardous conditions.
• Periodically check for wear on the chains, and order
replacements if necessary.
5
voltage with welding current
