8. Technische Daten
Betriebsspannung:
230V/50Hz
Regelbereich:
10 ... 50°C
Fühlertoleranz:
1K
Schaltdifferenz:
ca. 1K
Leistungsaufnahme:
ca. 1W
Temperaturabsenkung:
ca. 5K
Kontakt:
Schließer max. 230V 16(2)A
Wirkungsweise:
1.C
externer Fühler:
2k NTC nach DIN 44574
(doppelt isoliert) nach DIN EN 60730-2-1
Fühlerbruch:
Heizung wird abgeschaltet
Fühlerkurzschluss:
Heizung wird abgeschaltet
Anzeigen:
Heizen (rot), Temperaturabsenkung (grün)
Schraubklemmen:
Schraubanschlüsse 0,5 bis 2,5 mm
Befestigung:
in UP-Dose Ø 55 mm
Schutzart:
IP30
Schutzklasse:
Nach sachgemäßer Montage werden die
Anforderungen der Schutzklasse II erfüllt
Verschmutzungsgrad:
2
Bemessungsstoßspannung:
4.000V
Umgebungstemperatur:
0 ... +40°C
Lagertemperatur:
-20 ... +70°C
Funkentstörung:
gemäß EN 50081-1, EN 50082-1

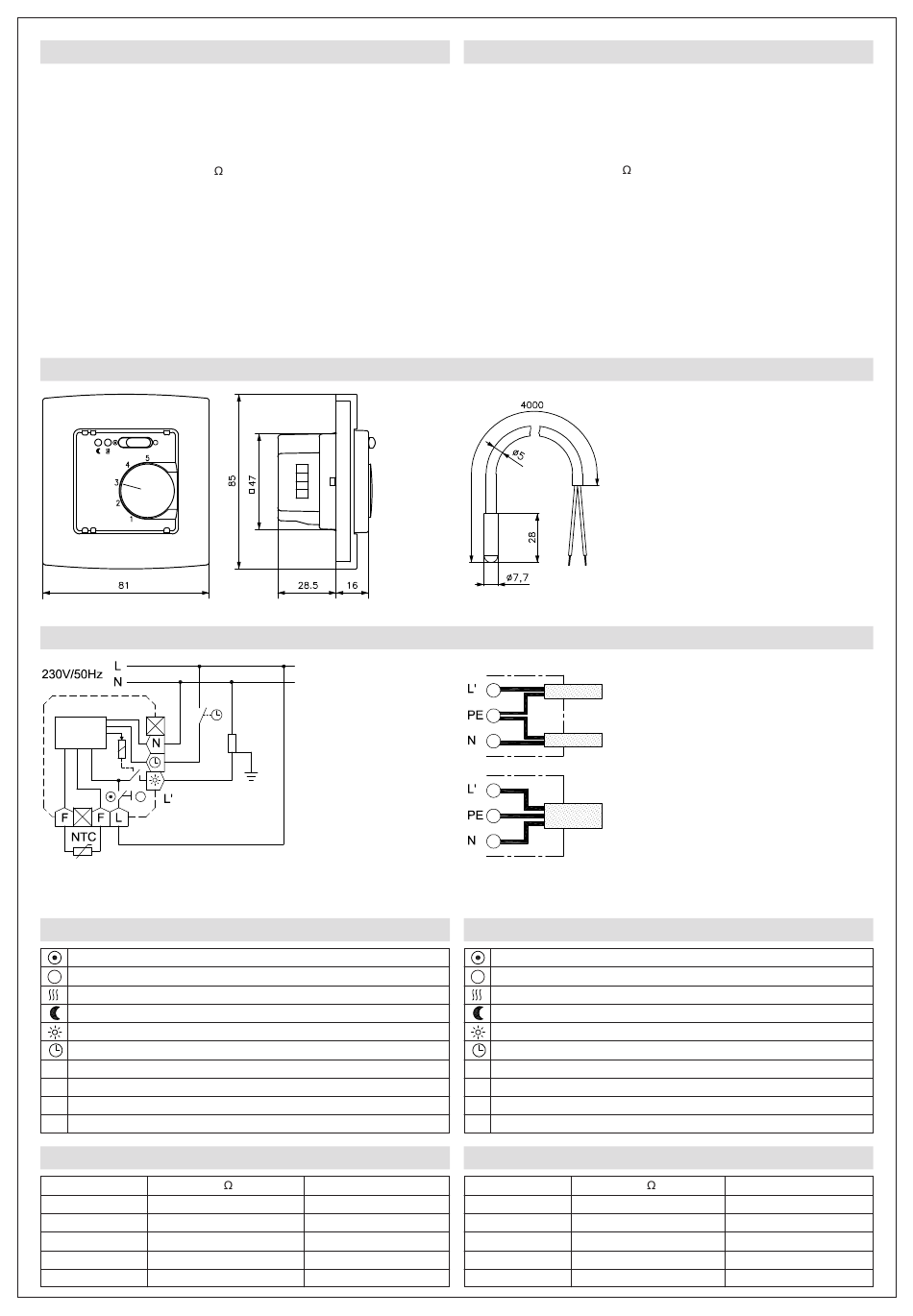

9. Maßzeichnungen / Dimensional drawings
Regler / Controller
10. Schaltbild, Anschluss / Wiring diagram, connection
Regler/Controller
Elektronik/
Electronics
L'Lastversorgung
Load supply
Fühler Bodentemperatur / Floor temperature sensor
11. Erläuterung Symbole
Regelung Ein
Regelung Aus
Heizung Ein
Temperaturabsenkung Ein
Anschluss Heizung
Anschluss Temperaturabsenkung
L
Netzanschluss Phase
L'
Lastversorgung (Heizmatten)
N
Netzanschluss Nullleiter
F
Anschluss Temperaturfühler
12. Fühlerkennwerte
Temp. [º C]
R[k ]
10
3,66
20
2,43
30
1,65
40
1,15
50
0,82
8. Technical Data
Operating voltage:
Control range:
Sensor tolerance:
Switching difference:
Power consumption:
Temperature decrease:
Contact:
Mode of action:
Externals sensor:
Sensor breakdown:
Sensor short-circuit:
Indications:
2
Terminal screws:
Mounting:
Degree of protection:
Protection class:
Pollution level:
Rated impulse voltage:
Ambient temperature:
Storage temperature:
Radio interference suppression: acc. to EN 50081-1 and EN 50082-1
Fühler / Sensor
Anschluss Kaltleitungen / Cold lead connections
Schaltuhr für
Temperaturabsenkung
Temperature decrease
mode timer
Last max. 16(2) 230 V~
Max. load 16(2) 230 V~
PE bei Heizleitungen
mit Schutzgeflecht
PE (with heating lines with
a protective braid)
0
L' Phase über Regler geschaltet
PE Schutzumflechtung falls vorhanden
N Nullleiter
11. Explanation of symbols
L
L'
N
F
12. Sensor characteristics
U [V]
2,49
2,22
1,92
1,63
1,35
2
230V/50Hz
10 ... 50°C
1K
approx. 1K
approx. 1W
approx. 5K
make contact, max. 230 V 16(2)A
1.C
2k NTC acc. to DIN 44574
(double insulated in compliance with DIN EN 60730-2-1)
heating is turned off
heating is turned off
heating (red), temperature decrease (green)
screw terminals (0.5 up to 2.5 mm
in an UP box (Ø 55 mm)
IP30
The requirements of protection class II are fulfilled after
proper installation.
2
4.000 V
0 ... 40° C
-20 ... +70°C
Heizmatten mit beidseitigem
Kaltleitungsanschluss
Electric heating mats with cold lead connections
on both sides
Heizmatten mit einseitigem
Kaltleitungsanschluss
Electric heating mats with cold lead connection
on one side
L' Phase switched via controller
PE Protective braid, if existing
N Neutral conductor
Control ON
Control OFF
Heating ON
Temperature decrease mode ON
Heating connection
Temperature decrease connection
Mains supply connection (phase)
Load supply (heating mats)
Mains supply connection (neutral conductor)
Temperature sensor connection
Temp. [ºC]
R[k ]
10
3.66
20
2.43
30
1.65
40
1.15
50
0.82
2
)
U [V]
2.49
2.22
1.92
1.63
1.35
