Installing the Wireless Control Card

• Power off the Zoneline
• Insert the Control Card wiring harness into the thermostat
connection port on the front of the Zoneline control box cover.
• For Makeup Air Models (*DBM and *EBM), insert the small
connector into the mating CDC Connection port next to the
thermostat port. (See Drawing 1)
NOTE: If not a Makeup Air Model, DO NOT plug in the CDC/
occupancy connection.
AC input
49-5000416 Rev. 1

Thermostat Installation

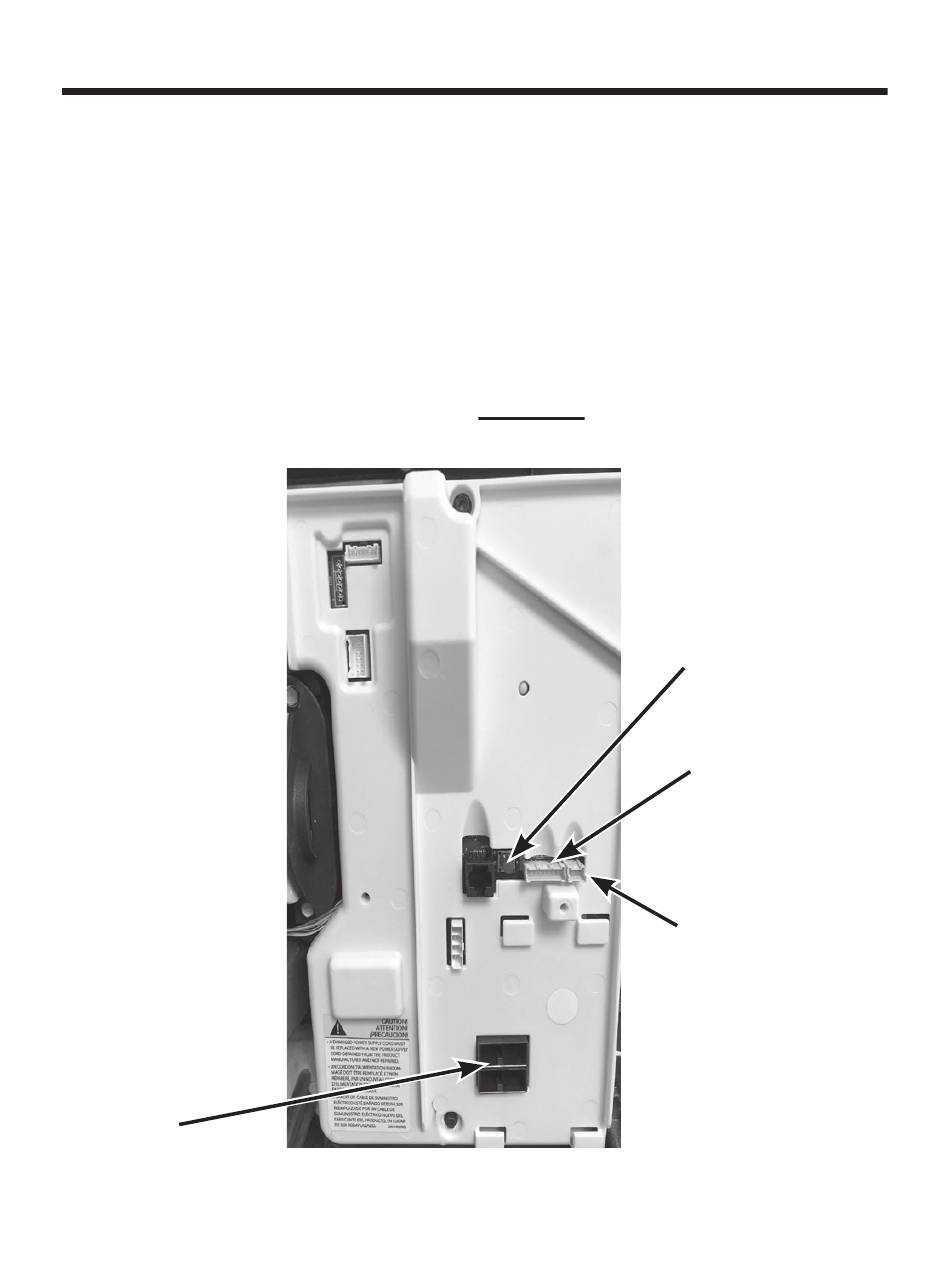

Drawing 1
Red Aux Set
Button
Remote
Thermostat
Connection
CDC /
Occupancy
Connection
