12. VENTILATION SYSTEMS

VENTILATION DEVICE 1 – FACE SHIELD SETTING
EN
The R2 has a face shield that adjusts to several positions. Depending on your
road speed and the tendency of the face shield to mist up, open the face shield
sufficiently wide to stop it misting up but so that it still protects your eyes from
excessive draft.
Urban position
In its second locking position, the face shield is automatically in urban position.
Air entering through the bottom gap flows over the inside of the face shield and
escapes through the opening at the top.
VENTILATION DEVICE 2 – INLET VENT IN CHIN AREA
(face shield ventilation)

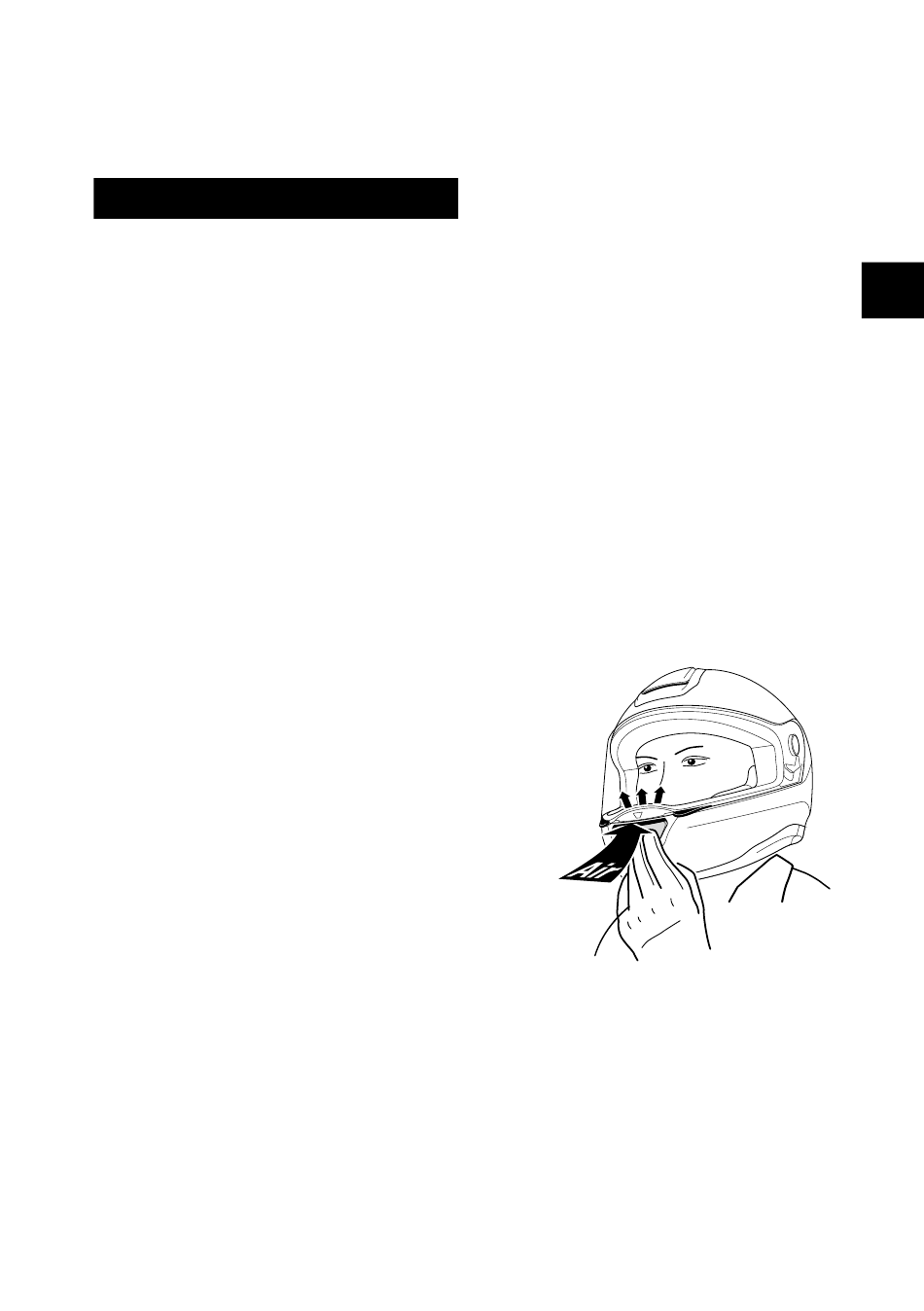

The R2 features an air inlet in the chin section
for visor ventilation.
Air flows through the open air inlet regardless
of riding position. A deflector ensures that
the visor is effectively ventilated even at low
speeds. By pressing on the lower or upper
part of the ventilation element, the air inlet is
opened or closed.
VENTILATION SYSTEM 3 –
HEAD VENTILATION
To ventilate the head, a large air vent with
adjustable ventilation system is located at the top
of the helmet shell. The air entering through this
vent is routed through channels to the top of the
head.
