If the anti-fog lens is not air-tight and the face shield mists up, either the visor
is not correctly in place or the pressure on the seal is inadequate. You can
regulate the pressure on the seal by adjusting the eccentric locking pins. To do
so, remove the anti-fog lens, then use a flat object with no sharpedges to push
the locking pins out of the face shield carefully from the inside; then rotate
them by 180° and reinsert them. Fit the anti-fog lens and check the seal.
Removal
1. Before starting to remove the antifog lens, first lay the face shield on a
soft, clean cloth so that its top edge is facing you.

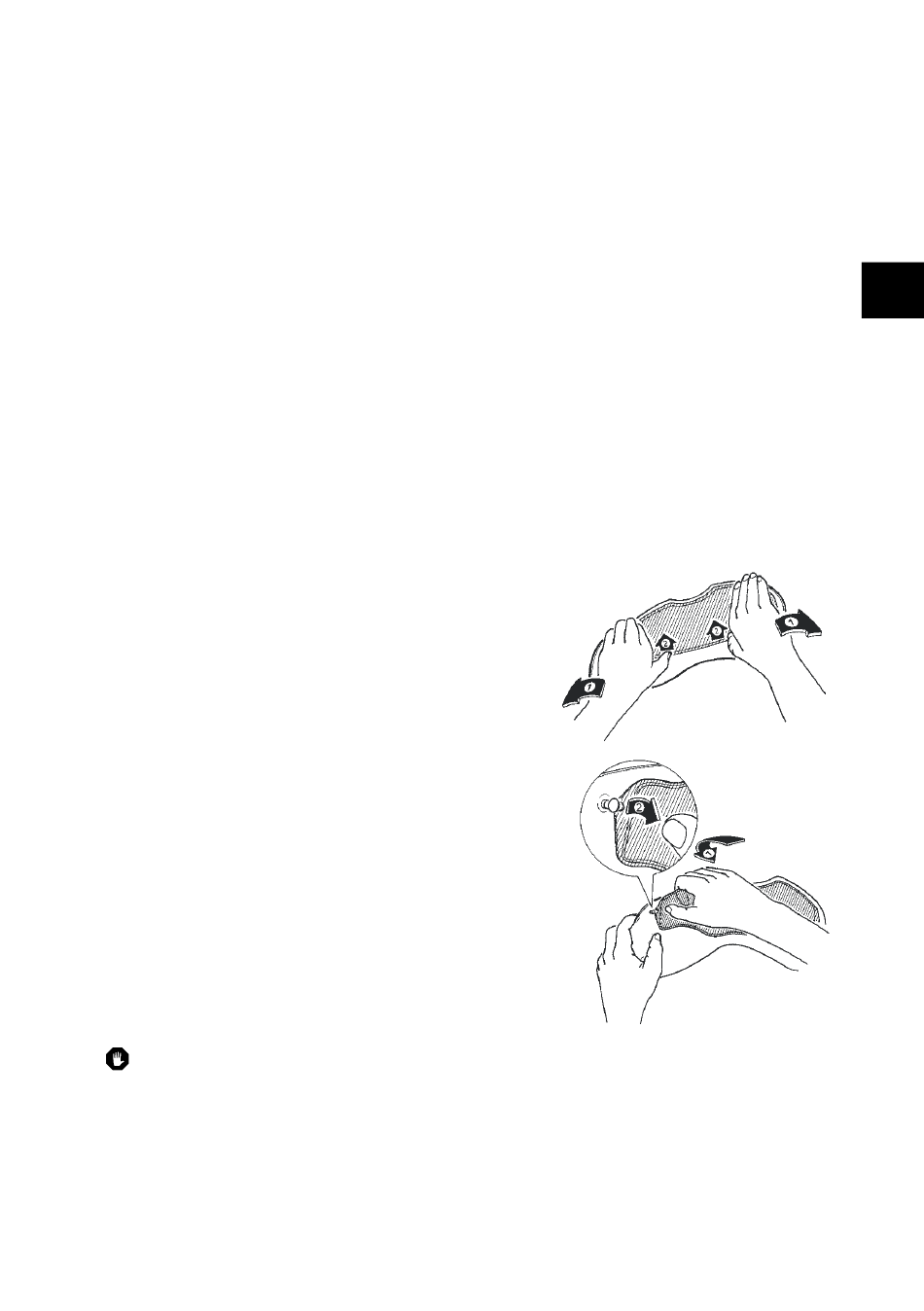

2. To reduce the pretensioning of the
antifog lens slightly if necessary, use the
balls of your thumbs to carefully bend
the face shield sufficiently apart while
applying pressure with your thumbs to
release the anti-fog lens and move it
approx. 2-3 mm forward.
3. Now grip the back of the anti-fog lens with
your index and middle fingers and lift it
off the face shield. In this position you can
easily remove the anti-fog lens from the
locking pin with your thumb.
4. You can now remove the anti-fog lens
from the face shield.
Note:
To avoid scratching the face shield, never remove or fit the anti-fog lens
unless the visor unit is clean and dry.
When fitting the anti-fog lens, check that neither dust nor moisture are
able to get between the two plates.
