Rear Panel - Ramiaudio TUS204 Manuel Utilisateur

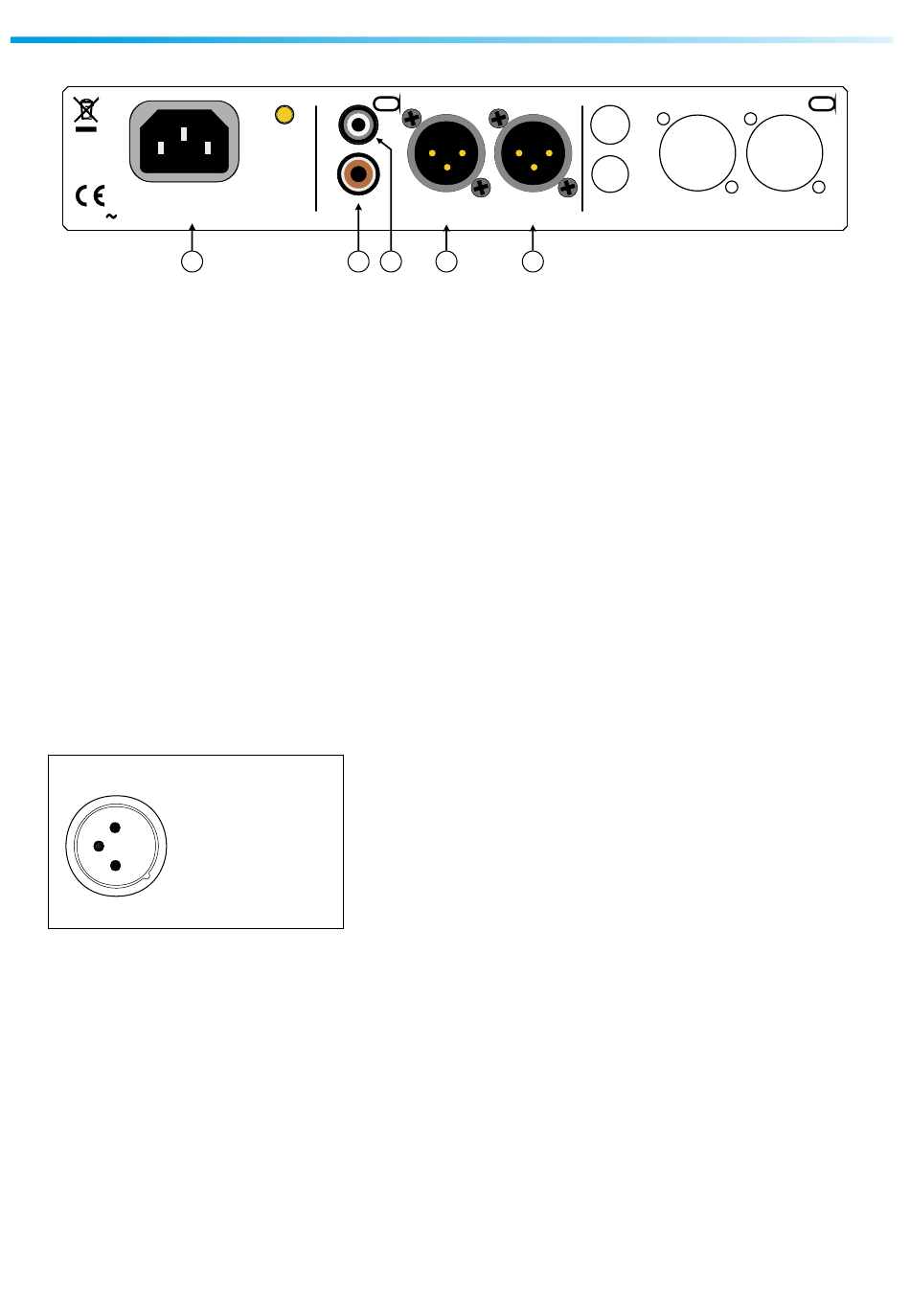

REAR PANEL

Made in Europe (Fr)
230V 50/60Hz 5W
A - XLR male balanced left output.
This output is electronically balanced (1 Earth , 2 input +, 3 input -)
B - XLR male balanced right output.
This output is electronically balanced (1 Earth , 2 input +, 3 input -)
C - RCA unbalanced left input.
D - RCA unbalanced right input.
I - Power supply plug
1
3
2
Rami
L
R
T 160mA L
E D
3 pts Male XLR
1: Ground
2: Signal +
3: Signal -
B
B. RIGHT B. LEFT
C B A
12
L
R
A. RIGHT A. LEFT
A
TUS204
