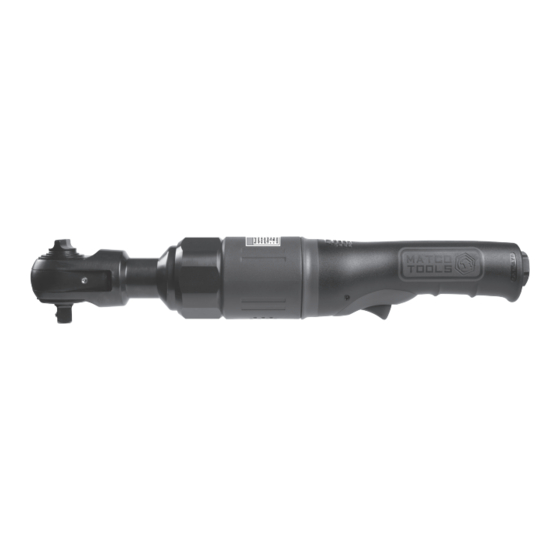

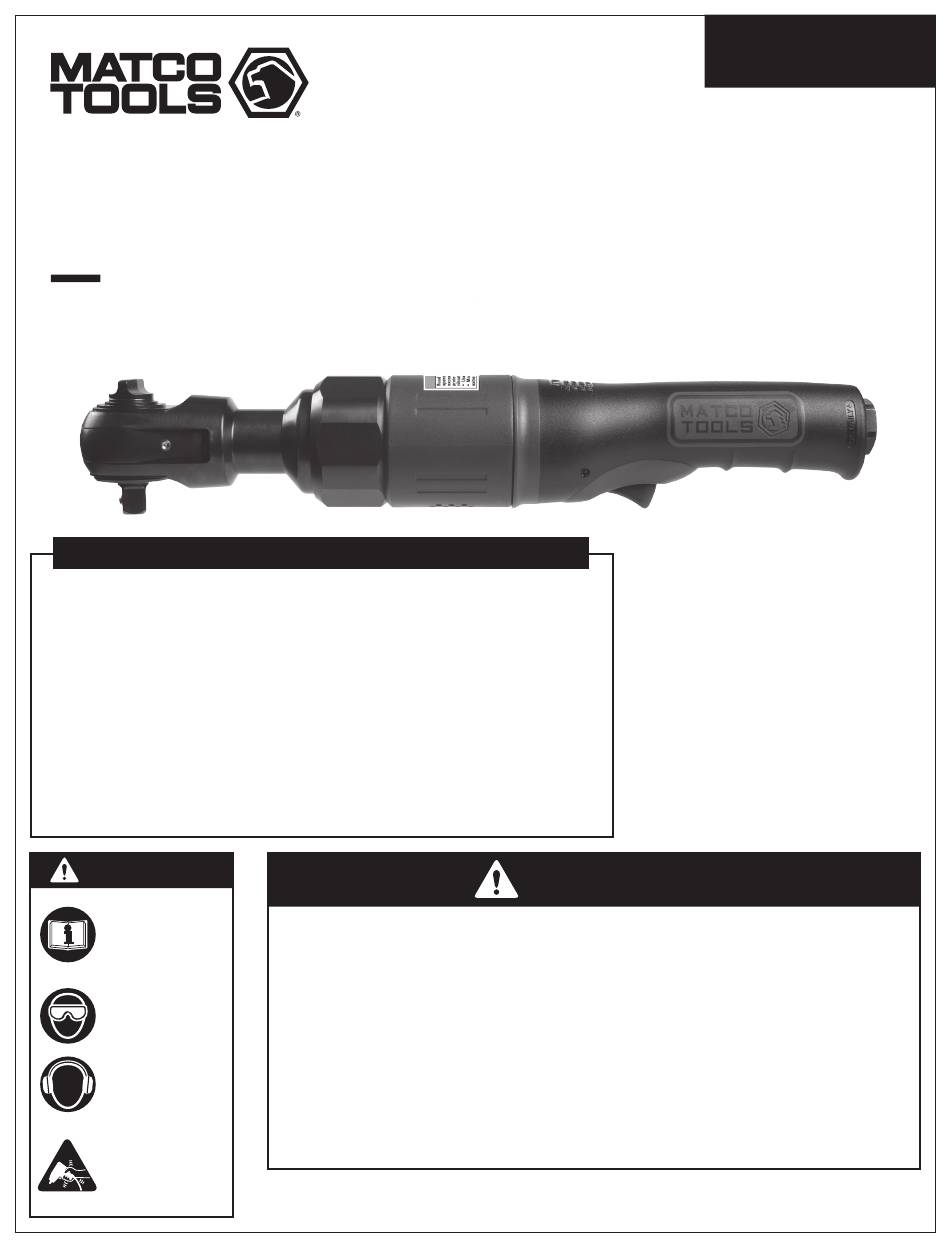

TRINQUETE NEUMÁTICO PARA SERVICIO PESADO 3/8"
CLIQUET PNEUMATIQUE 3/8 PO TRÈS RÉSISTANT
HEAVY DUTY
3
"
AIR RATCHET
8
S P E C I F I C A T I O N S
Max. Torque ............................................................................. 130 ft. lbs.
Working Torque .................................................................. 30-110 ft. lbs.
Max. Free Speed ....................................................................... 180 RPM
Air Inlet .......................................................................................1/4" NPT
Avg. Air Consumption .................................................................. 4 CFM
Sound Pressure Level.................................................................. 84 dBA
Vibration Level ...................................................................... 2.54 m/sec²
Recommended Air Pressure ....................................................... 90 psig
Air Hose Size ................................................................................. 3/8" ID
Length ............................................................................................. 12.45"
Weight ......................................................................................... 3.3 LBS.
WARNING
AlwAYS reAd
inSTrucTionS
before uSing
power ToolS
AlwAYS weAr
SAfeTY
goggleS
AlwAYS weAr
heAring
proTecTion
Avoid
prolonged
expoSure To
vibrATion
Some dust created by power sanding, sawing, grinding, drilling, and other
construction activities contains chemicals known to cause cancer, birth defects or
other reproductive harm. Some examples of these chemicals are:
• lead from lead-based paints,
• crystalline silica from bricks and cement and other masonry products, and
• arsenic and chromium from chemically-treated lumber.
Your risk from these exposures varies, depending on how often you do this type
of work. To reduce your exposure to these chemicals: work in a well ventilated
area, and work with approved safety equipment, such as those dust masks that are
specially designed to filter out microscopic particles.
MT2858A
WARNING
Copyright © Professional Tool Products, 2015
MT2858A
• Operating Instructions
• Warning Information
• Parts Breakdown
All rights reserved
