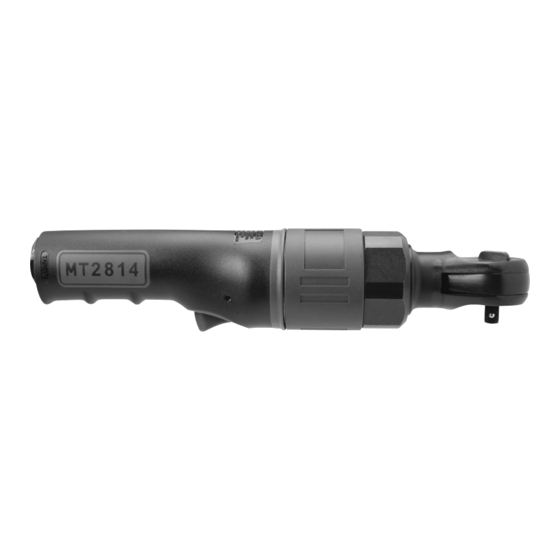

TRINQUETE NEUMÁTICO COMPUESTO 1/4"
CLÉ À CLIQUET 1/4 PO COMPOSITE
1
"
COMPOSITE
AIR RATCHET
4
WARNING
ALWAYS READ
INSTRUCTIONS
BEFORE USING
POWER TOOLS
ALWAYS WEAR
SAFETY GOGGLES
ALWAYS WEAR
HEARING
PROTECTION
AVOID PROLONGED
EXPOSURE TO
VIBRATION
MT2814
Max. Torque ......................................................................................................45 ft. lbs.
Working Torque ............................................................................................. 5-40 ft. lbs.
Max. Free Speed ...............................................................................................270 RPM
Air Inlet ............................................................................................................1/4" NPT
Avg. Air Consumption .........................................................................................3.5 CFM
Sound Pressure Level ..........................................................................................87 dBA
Recommended Air Pressure ..................................................................................90 PSI
Air Hose Size ....................................................................................................... 3/8" ID
Length .................................................................................................................... 8.6"
Weight ..............................................................................................................1.8 LBS.
Some dust created by power sanding, sawing, grinding, drilling, and other
construction activities contains chemicals known to cause cancer, birth defects or
other reproductive harm. Some examples of these chemicals are:
• lead from lead-based paints,
• crystalline silica from bricks and cement and other masonry products, and
• arsenic and chromium from chemically-treated lumber.
Your risk from these exposures varies, depending on how often you do this type
of work. To reduce your exposure to these chemicals: work in a well ventilated
area, and work with approved safety equipment, such as those dust masks that are
specially designed to filter out microscopic particles.
S P E C I F I C A T I O N S
WARNING
Copyright © Professional Tool Products, 2016.
1
MT2814
• Operating Instructions
• Warning Information
• Parts Breakdown
MT2814
All rights reserved.
rev. 06/22/16
