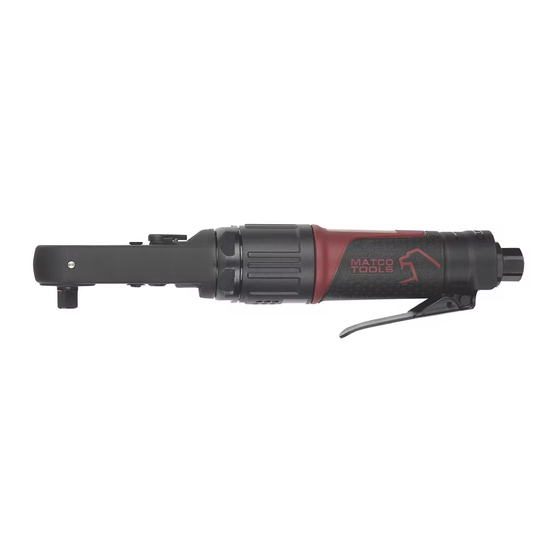

TRINQUETE DE ESTRANGULADOR GIRATORIO CON CABEZA SELLADA 3/8"
CLICQUET À MANETTE PIVOTANTE ET À TÊTE SCELLÉE DE 3/8 PO
3
"
SEALED HEAD ROTATING
8
THROTTLE RATCHET
WARNING
ALWAYS READ INSTRUCTIONS
BEFORE USING POWER TOOLS
ALWAYS WEAR
SAFETY GOGGLES
USER AND BYSTANDERS
ALWAYS WEAR HEARING
PROTECTION USER AND
BYSTANDERS
AVOID PROLONGED
EXPOSURE TO VIBRATION
MT2855R
Max. Torque . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 90 ft. lbs.
Max. Free Speed . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 250 RPM
Air Inlet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1/4" NPT
Avg. Air Consumption . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4.0 CFM
Sound Pressure Level . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 81 dBA
Recommended Air Pressure . . . . . . . . . . . . . . . . . . . . . . . . . . . . 90 psig
Air Hose Size . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3/8" ID
Length . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11-1/2"
Weight . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3.2 LBS.
Throttle Positions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Some dust created by power sanding, sawing, grinding, drilling, and other
construction activities contains chemicals known to cause cancer, birth defects or
other reproductive harm. Some examples of these chemicals are:
• lead from lead-based paints,
• crystalline silica from bricks and cement and other masonry products, and
• arsenic and chromium from chemically-treated lumber.
Your risk from these exposures varies, depending on how often you do this type
of work. To reduce your exposure to these chemicals: work in a well ventilated
area, and work with approved safety equipment, such as those dust masks that are
specially designed to filter out microscopic particles.
S P E C I F I C A T I O N S
WARNING
Copyright © Professional Tool Products, 2017
1
MT2855R
• Operating Instructions
• Warning Information
• Parts Breakdown
MT2855R
All rights reserved.
11/30/17
