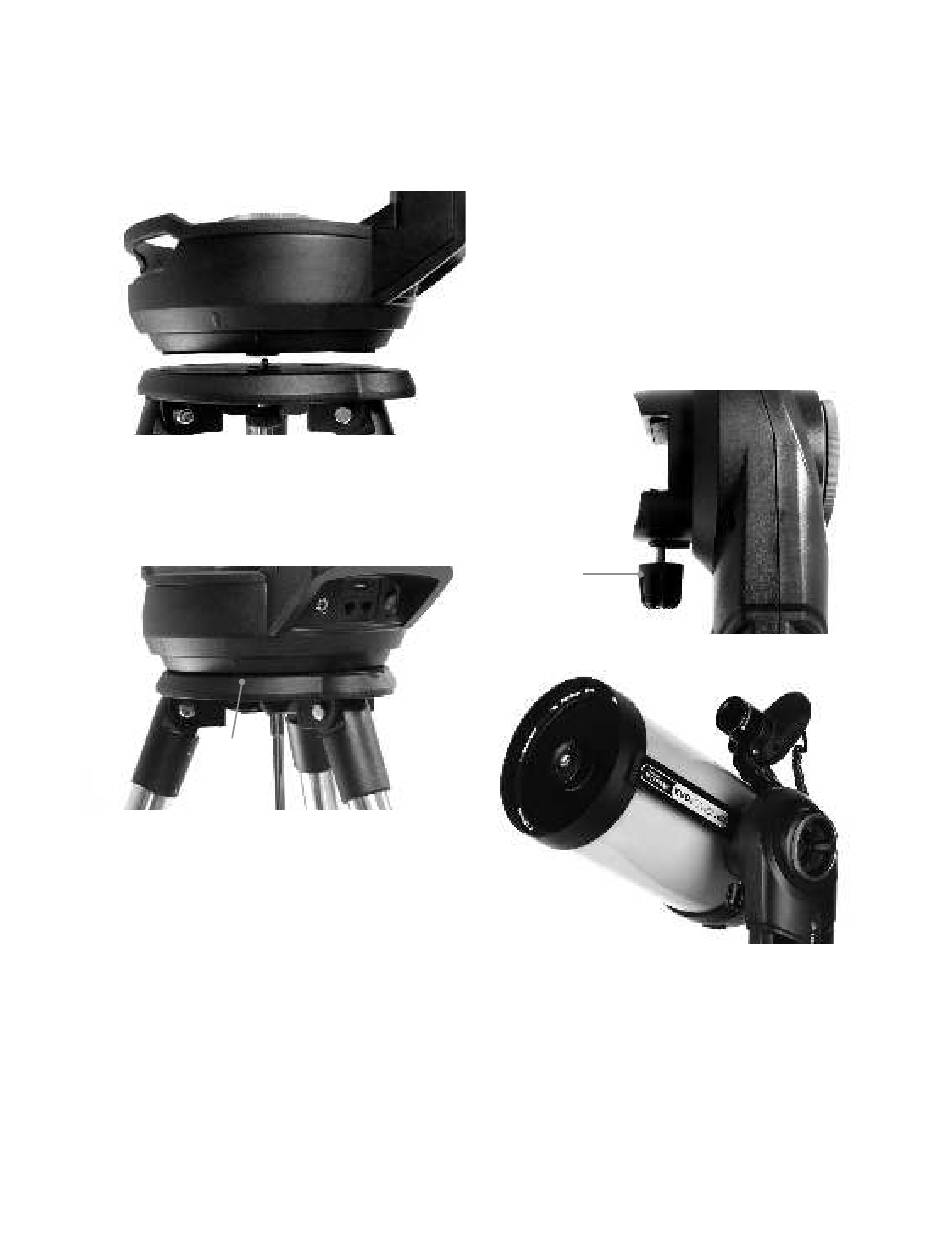

Attach the Mount to the Tripod
1 . Position the fork arm mount over the center post on the
tripod head . Do not let go of the mount until it has
registered with the center post . The mount should not
wobble .
2 . With the mount resting on the tripod head, rotate the
mount until the three mounting sockets align . The
sockets will click into place, indicating they are aligned .
3 . Thread the three captive mounting bolts from underneath
the tripod head into the bottom of the telescope base .
Mounting Bolds
ENGLISH
8
I
1 of 3
Attach the Telescope to the Mount
1 . Loosen the orange altitude clutch lock knob and rotate
the altitude axis until the quick release knob faces
downward .
2 . Tighten the altitude clutch lock knob .
3 . Loosen the quick release knob a couple of turns to allow
room for the dovetail on the telescope optical tube .
4 . Slide the telescope optical tube into the quick release
slot from the back side of the telescope . The fork arm
should be on the left side of the optical tube . For correct
balance, position the telescope so that you can read the
"Evolution" nameplate . If you choose to add different
accessories to your telescope, you can rebalance it later .
Quick Release
Knob
