Loading label roll in rewind mode

K
J
I
H
G
NOTICE!
In rewind mode the labels are wound up internally after printing for later use.
•

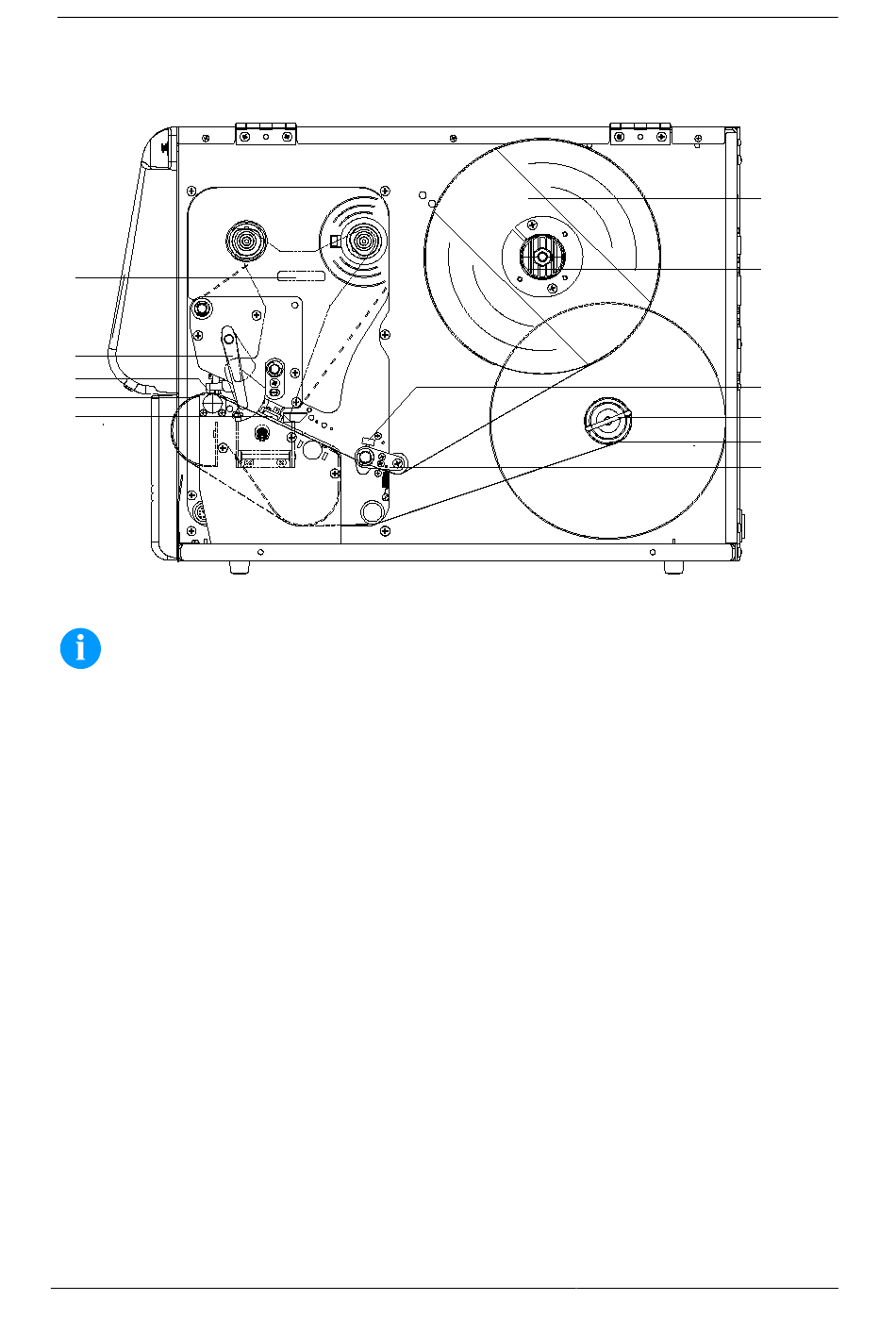

Open the printer cover.
•
Open printhead (I) by turning the pressure lever (J) anticlockwise.
Spectra 216: Pull centring plate (K) outwardly.
•
Remove the outside label mounting plate (A).
•
Load the label roll with inner winding onto the unwinding roll (B) and attach again the label mounting plate (A).
•
Lead the label material below the label guiding (F).
Pay attention that the label runs through the photocell (G).
Spectra 216: Lift centring plate (K) again upwards.
•
Place the labels around the front sheet (H) and lead them below the mechanics to the rear.
•
Clamp the label material, with the handle (D) designated for it, at the rewinding roll (F).
•
In order to move the printhead (I) down, turn the pressure lever (J) in clockwise direction until it locks.
•
Adjust the limit stops (C) of the label guiding to the width of material.
•
Close the printer cover.
