Display; Front-Side; Backside; Designations - Reloop RMX60 DIGITAL Mode D'emploi

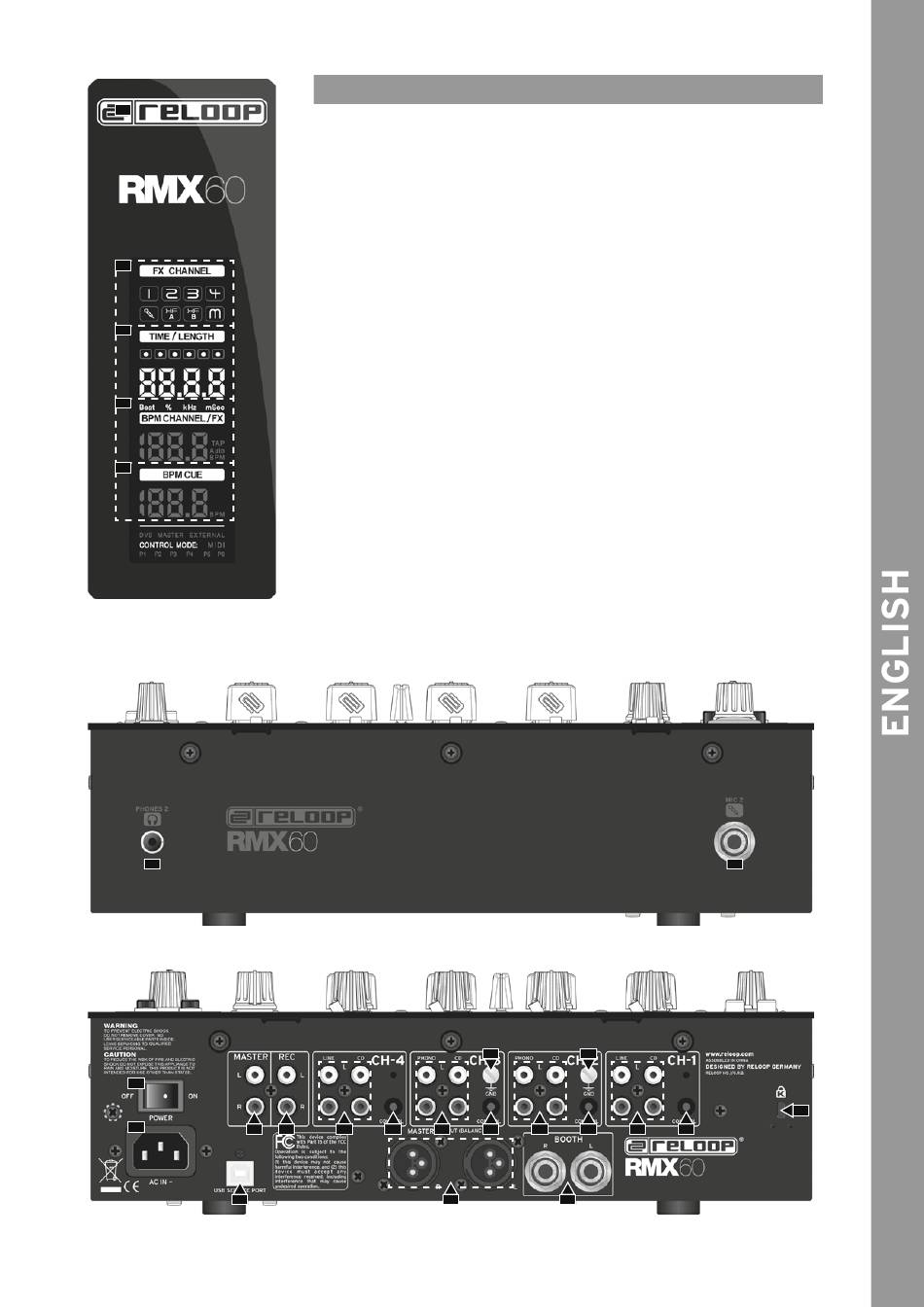

1.1.2 DISPLAY

38
38
39
40
41

1.1.3 FRONT-SIDE

45

1.1.4 BACKSIDE

57
47
48
55
1.2 DESIGNATION
1.2.1

SIGNAL CHANNELS

1. ....... Signal Input Select
2. ....... Gain Dial
3. ....... 3-Band Equalizer
4. ....... LEDs
5. ....... Filter
6. ....... Cue Button
7. ....... Linefader
8. ....... Crossfader Assign Switch
9. ....... Crossfader
10. ....... Crossfader Curve Dial
11. ....... Crossfader Start Switch
12. ....... Linefader Curve Dial
13. ....... Fader-Start Switch
14. ....... EQ Curve Switch
1.2.2

MIC CHANNEL

15. ....... Mic 1/AUX Level
16. ....... Level Control LED for DJ Mic 1/AUX
17. ....... Mic 2 Level
18. ....... Level Control LED for DJ Mic
19. ....... 2-Band Equalizer for DJ Mic
20. ....... Mic Switch
1.2.3

HEADPHONES SECTION

21. ....... Mono/Stereo Split Select Switch
22. ....... Cue EQ (Headphones Output Equalizer)
23. ....... Cue Mix (Cue/Master Signal Ratio)
24 ....... Cue Level (Volume Control Headpho-
nes Output)
1.2.4

MASTER SECTION

25. ....... Master Volume, adjusts Master Volume
26. ....... LED for Master Signal
27. ....... Mono/Stereo Switch for Booth Output
28. ....... Balance Dial for Master Signal
29. ....... Booth Volume
51 52 54 52
49
1.2.5

FX SECTION

30. ....... BeatFX Encoder
31. ....... FX Channel Select Switch
32. ....... Time Encoder
33. ....... Time Bar Buttons
34. ....... Tap Button
35. ....... Level/Depth Dial
36. ....... Effect ON/OFF Switch
37. ....... Display
1.2.6 DISPLAY
38. ....... Effect Display
39. ....... FX Channel Display
40. ....... Effect Bar Resolution
41. ....... Effect BPM Indicator
1.2.7

CONNECTIONS

42. ....... AUX
43. ....... MIC 1
44. ....... Headphones Output 1
45. ....... Headphones Output 2
46. ....... MIC 2
47. ....... Power Connection
48. ....... Master Out RCA
49. ....... Master Out Balanced
50. ....... Booth Out
51. ....... Record Out
52. ....... Channel Inputs
53. ....... GND
54. ....... Fader-Start Connection
55. ....... USB B
56. ....... Kensington
57. ....... ON/OFF Switch
53 53
54 52 54 52
50
46
56
54
15
