Delta Collins 100-DST Serie Instructions De Montage
Masquer les pouces
Voir aussi pour Collins 100-DST Serie:
- Consignes d'installation (12 pages) ,
- Mode d'emploi (12 pages) ,
- Manuel d'installation (12 pages)
Publicité
Liens rapides
Models/Modelos/Modèles
100-DST, 101-DST, 140-DST,
141-DST, 175-DST, 300-DST,
340-DST, 400-DST, 440-DST &
441-DST Series/Series/Seria
Write purchased model number here.
Escriba aquí el número del modelo comprado.
Inscrivez le numéro de modèle ici.
For easy installation of your
Delta faucet you will need:
• To READ ALL the instructions completely
before beginning.
• To READ ALL warnings, care, and
maintenance information.
Para instalación fácil de su llave
Delta usted necesitará:
• LEER TODAS las instrucciones
completamente antes de empezar.
• LEER TODOS los avisos, cuidados,
e información de mantenimiento.
Pour installer votre robinet
Delta facilement, vous devez:
• LIRE TOUTES les instructions avant
de débuter;
• LIRE TOUS les avertissements ainsi que
toutes les instructions de nettoyage et
d'entretien;

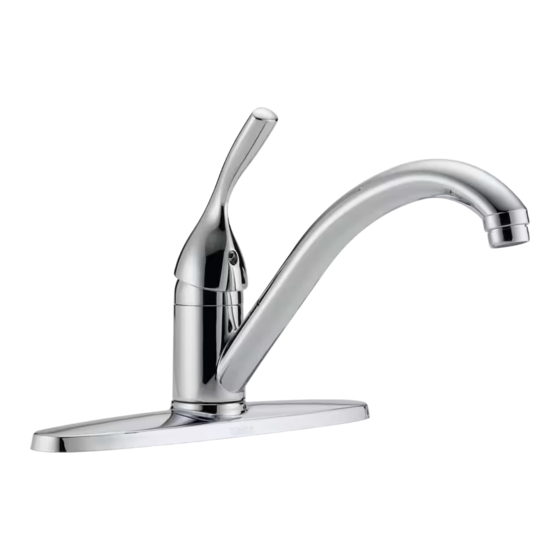

SINGLE HANDLE KITCHEN FAUCET
75106
LLAVE DE COCINA DE PALANCA
ROBINET DE CUISINE À UNE MANETTE
You may need/Usted puede necesitar/
Articles dont vous pouvez avoir besoin:
T E FLO N
1
T E FLO N
06/17/2019 Rev. D
Publicité
Manuels Connexes pour Delta Collins 100-DST Serie
Sommaire des Matières pour Delta Collins 100-DST Serie
- Page 1 You may need/Usted puede necesitar/ Articles dont vous pouvez avoir besoin: T E FLO N For easy installation of your Delta faucet you will need: T E FLO N • To READ ALL the instructions completely before beginning. • To READ ALL warnings, care, and maintenance information.
- Page 2 100 & 140 Series / Seria 300 & 340 Series / Seria 100 & 140 Series 300 & 340 Series SHUT OFF WATER SUPPLIES. Remove Insert sprayer and hose (1) down through SHUT OFF WATER SUPPLIES. Remove old faucet. old faucet. Slide gasket (1) over tubes (2) support assembly.
- Page 3 400 & 440 Series / Seria 400 & 440 Series SHUT OFF WATER SUPPLIES. Remove old faucet. Slide gasket Note: If you prefer not to use side sprayer, skip this step (1) over tubes (2) and install onto bottom of faucet. NOTE: If sink is and move to page 8.
- Page 4 101 & 141 Series / Seria 175 & 441 Series / Seria 175 & 441 Series 101 & 141 Series Note: If you prefer not to use side SHUT OFF WATER SUPPLIES. Remove old SHUT OFF WATER SUPPLIES. Remove old faucet.
- Page 5 “SNAP” ‘CHASQUIDO’ «CLAQUEMENT» For Sprayer Models Only Swing open lower clip (1). Pull down on diverter plug (2) to remove. Notice Discard diverter plug. Caution: Do not remove upper clip (3). Keeping lower clip (1) disengaged, insert diverter hose end (4) into diverter Incorrect clip assembly may cause water leaks and property damage.
- Page 6 Potential Problems and Remedies connection. Do not use pipe dope or other so in a way that allows a leak-free joint to be created. Delta is sealants on water line connections. Tubing is not cut perpendicular to the axis of the tube:...
- Page 7 Correct method Incorrect Installation Instalación Incorrecta Método Correcto Installation Incorrecte Bonne méthode Do not install sleeve NOTICE Ensure cut is straight. upside down. Failure to use plastic sleeve (ferrule) in the correct orientation will result in disconnection and possible water damage. No instale la manga Asegúrese que el corte 1.
- Page 8 Setting The Handle Limit Stop (Optional) This faucet includes an integrated handle limit stop that has two positions. Position 1, to the left, allows full handle motion (the full range between “all cold” to “all hot”). The faucet is set in position 1 in the factory. Position 2, to the right, allows half of the normal handle motion (“all cold”...
-
Page 9: Entretien
Maintenance Note: Do not attempt to disassemble cartridge (2). There are no repairable parts inside. If faucet exhibits very low flow: A. Remove and clean aerator (1) or B. SHUT OFF WATER SUPPLIES. Replace valve cartridge (2). When reinstalling Notice parts, make sure bonnet nut (3) is tightened securely with a wrench.* If faucet leaks from under handle: Remove handle and unthread trim cap (4). - Page 10 75106 Rev. D...
- Page 11 75106 Rev. D...
- Page 12 What You Must Do To Obtain Warranty Service or Replacement Parts. A warranty claim may be made and replacement parts may be obtained by calling 1 800 345 DELTA (3358) or by contacting us by mail or online as follows (please include your model number and date of If you have any questions or concerns regarding our warranty, please contact us as provided above or view our Warranty FAQs at www.
