Evidence of Conformity
-Declares under their own responsibility that all the pumps: Viron P300 Pool Pump, single phase,
manufactured since 01/10/08, independent of the serial number, are in compliance with
89/392/CEE Machine Directive Safety prescriptions, modified by the 91/368/CEE.
89/366/CEE Electromagnetic compatibility Directive, modified by the 91/263 CEE,
92/31/CEE Directive
73/23/CEE, Low voltage Directive, modified by the 93/68/CEE Directive
2000/14/EC Noise emission Directive
EN 60034/1 Rotating Machine
EN 610000/4/2 Electro Magnetic Immunity
EN 60446/1 Household Appliances
EN 60335-2-41/A1:2004

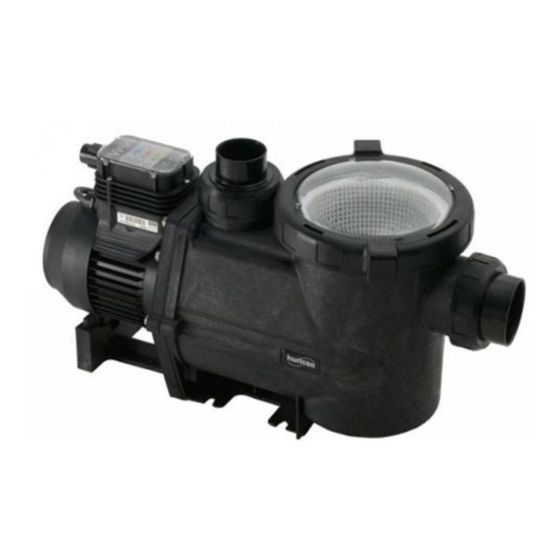

ASTRAL VIRON P300 PUMP SPECIFICATIONS – PRODUCT AND ACCESSORIES DESCRIPTION
The body of the pump is made of the latest generation thermoplastics. The pump is self-priming multispeed
with an output up to 1 hp, and are provided with single-phase motors. A pre-filter has been integrated into
the body of the pump to prevent the entry of any foreign bodies which could cause damage to the hydraulic
parts of the pump.
The motors supplied with the motor pump unit have been protected with IP-X5 protection and are adapted to
withstand hot atmospheres and high humidity levels.
Peter Wallace
Managing Director
Inst256 Installation and General Maintenance Manual – Viron P300 Pool Pump
AstralPool Australia Pty Ltd
ABN 97 007 284 504
48 Hanna Street
Noble Park, Vic 3174 Australia
Phone: (03) 9554 2200
Fax: (03) 9554 2270
Email:
sales@hurlcon.com.au
Web: www.hurlcon.com.au
1
