PANNELLO A-CHLORO AW96CL–HC897

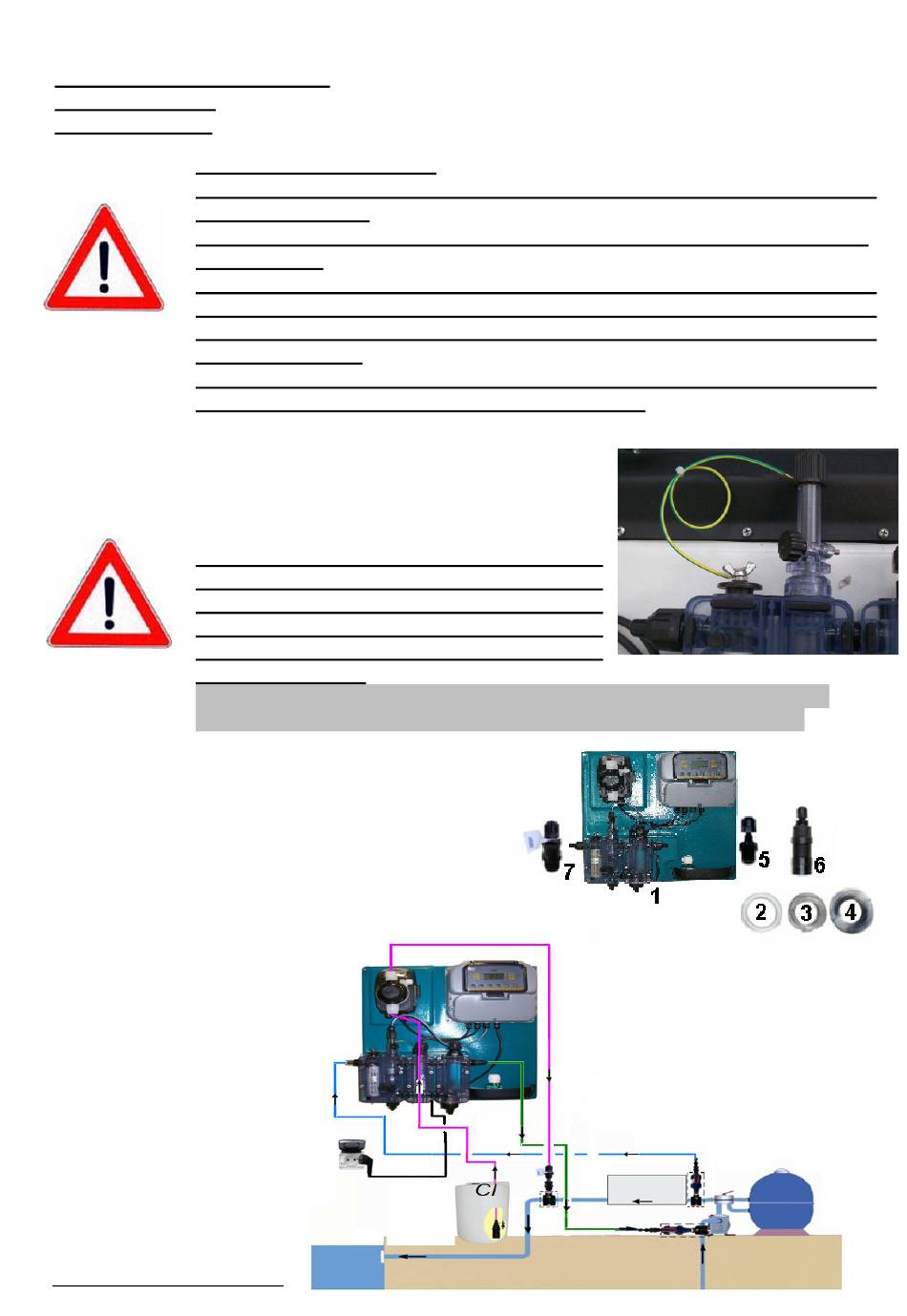

2.0 Technical Characteristics
2.1 General rules
Install the panel:
♦ In vertical position +/-15° .
♦ far from an hot source in dry places at maximum temperature of 45° C
and minimum 0° C.
♦ In a ventilated place and easily accessible by an operator for periodical
maintenance.
♦ At a suitable height above the chemical up to a maximum height of 1.5
meters. If for exigency of the plant it's necessary to install the pump
under the level of the chemical, you need to use an injection valve or an
anti siphon valve.
♦ Do not install the pump over the tank in presence of liquids that
emanate fumes unless it is hermetically closed.

2.2 Electrical characteristics

Power supply: 230 VAC 50/60 HZ

2.3 Electric connection

Before installation ensure that the supply
is adequately earthed and is fitted with a
suitably sensitive circuit breaker. Connect
the pump to the power supply respecting
the values you can see on the identify
label of the pump.
The modular probe holder grounding must not be connected to the
ground cable of the panel but to an external ground node (fig. A)

2.4 Standard Kit

1 A POOL CHLORO AW96CL-HC897
2 Injection pipe
3 Discharge pipe
4 Suction pipe
5 Fitting MG ½"
6 Foot filter
7 Injection fitting x2

2.5 Hydraulic Connection

ADSP7000612 04/08/2011 Rev.1.2
Fig.A
pag. 3
