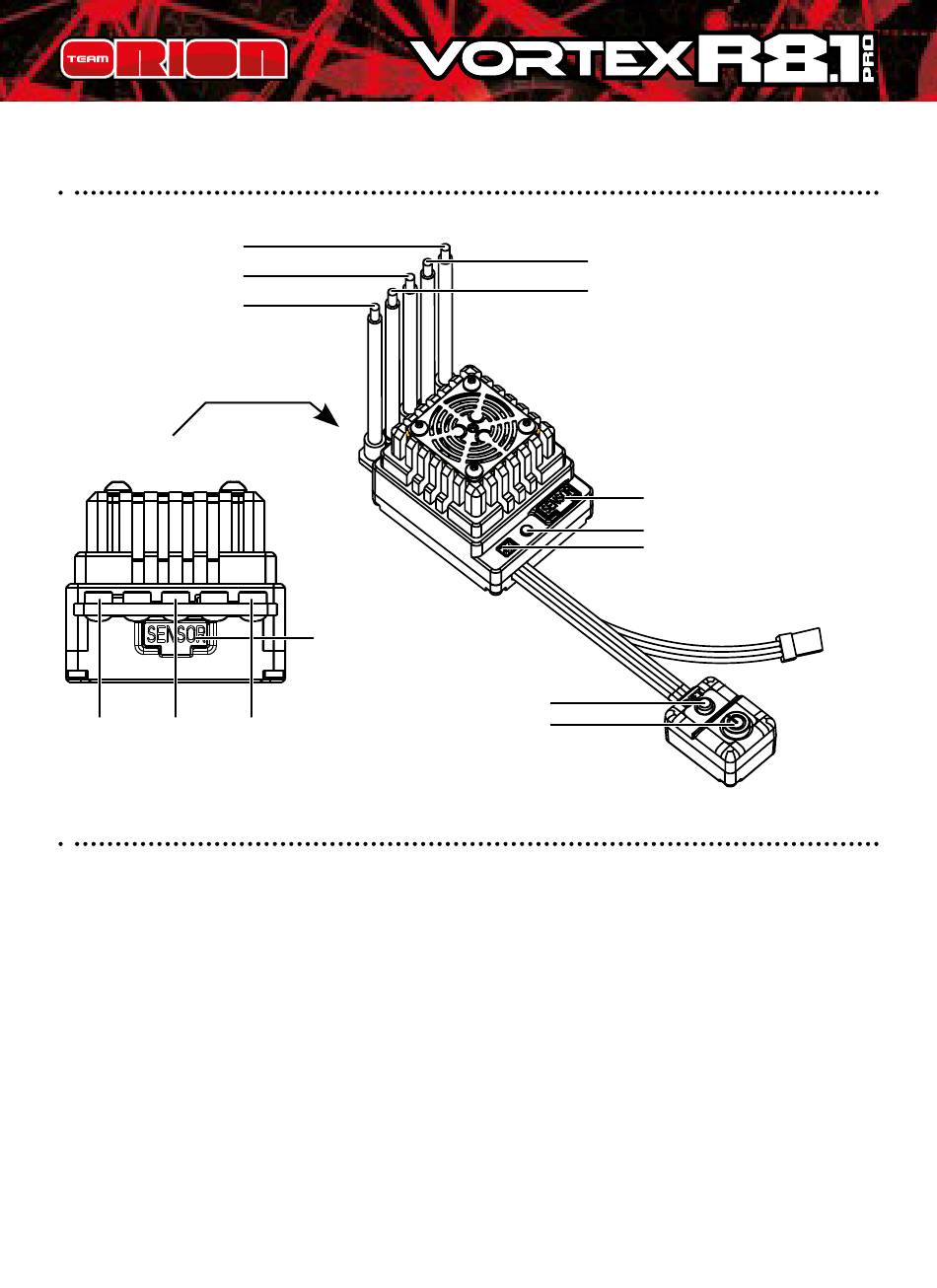

CONNECTIONS

C
B
A
Rear View
C B

MOTOR CONNECTION

Sensorless brushless motors
If the motor spins in the wrong direction, you can reverse
two of the motor wires or change setting #12
Sensor brushless motors
You must respect the ABC wire order and use a separate
sensor wire. Use setting #12 to change the motor rotation
direction.
WARNING! If you do not respect the ABC wire order, the
motor will not spin and you risk damaging the ESC.
6
Sensor
Port
A
-
+
Setup
On/Off
Copyright Team Orion © 2015
Programming
Port
LED
Fan Connector
RX
