WIRING INSTRUCTIONS

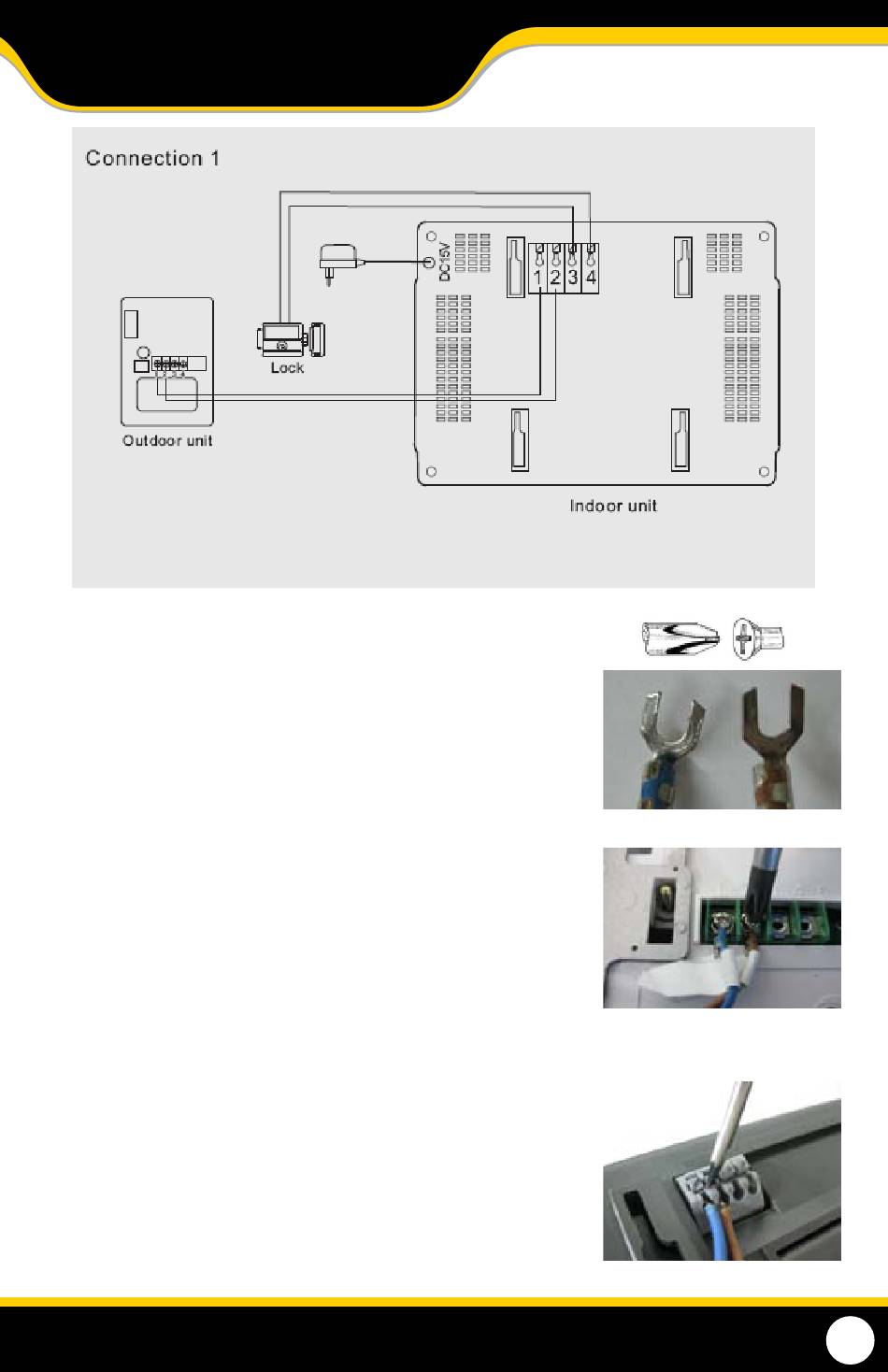

Connection 1 (Recommended)
Connecting the Camera – Note: You will need a philips head screwdriver
• Loosen the screw to the camera's positive connection (marked 1) by
turning the screw counter clockwise
• Note: Do not fully unscrew the screw, just loosen it enough to fit
the horseshow end of the 50ft wires
• Slide the Horseshoe end of the BLUE wire (marked 1) underneath the
Screw Terminal on the camera's positive connection (connection 1)
• Tighten up the screw to lock the blue wire into place
• Loosen the screw to the cameras negative connection (marked 2) by
turning the screw counter clockwise
• Note: Do not fully unscrew the screw, just loosen it enough to fit
the horseshow end of the 50ft wires
• Slide the Horseshoe end of the Brown wire (marked 2)underneath the
Screw Terminal on the camera's negative connection (marked 2)
• Tighten up the screw to lock the brown wire into place
Connecting the Monitor to Camera - Note: You will need a small flat
head screwdriver
• Using a screwdriver or similar object push down on the small grey box
above the hole marked as 1
• Insert the available end of the blue wire into the monitor's positive
camera connection (marked 1) and make sure it is completely
inserted
• Release the downwards pressure on the grey box and this should lock
the wire into place
