The last pages of this manual provide two examples
of the templates for correct perforation (DRILLING
TEMPLATE - A, DRILLING TEMPLATE - B).
Based on the desired configuration, you are advised
to use one of the perforation templates in the
manual.
If you want to connect a product from the
NXPTZ or NXPTZ SERIES2 range to COMB,
you must make a 32mm diameter hole in
the box.

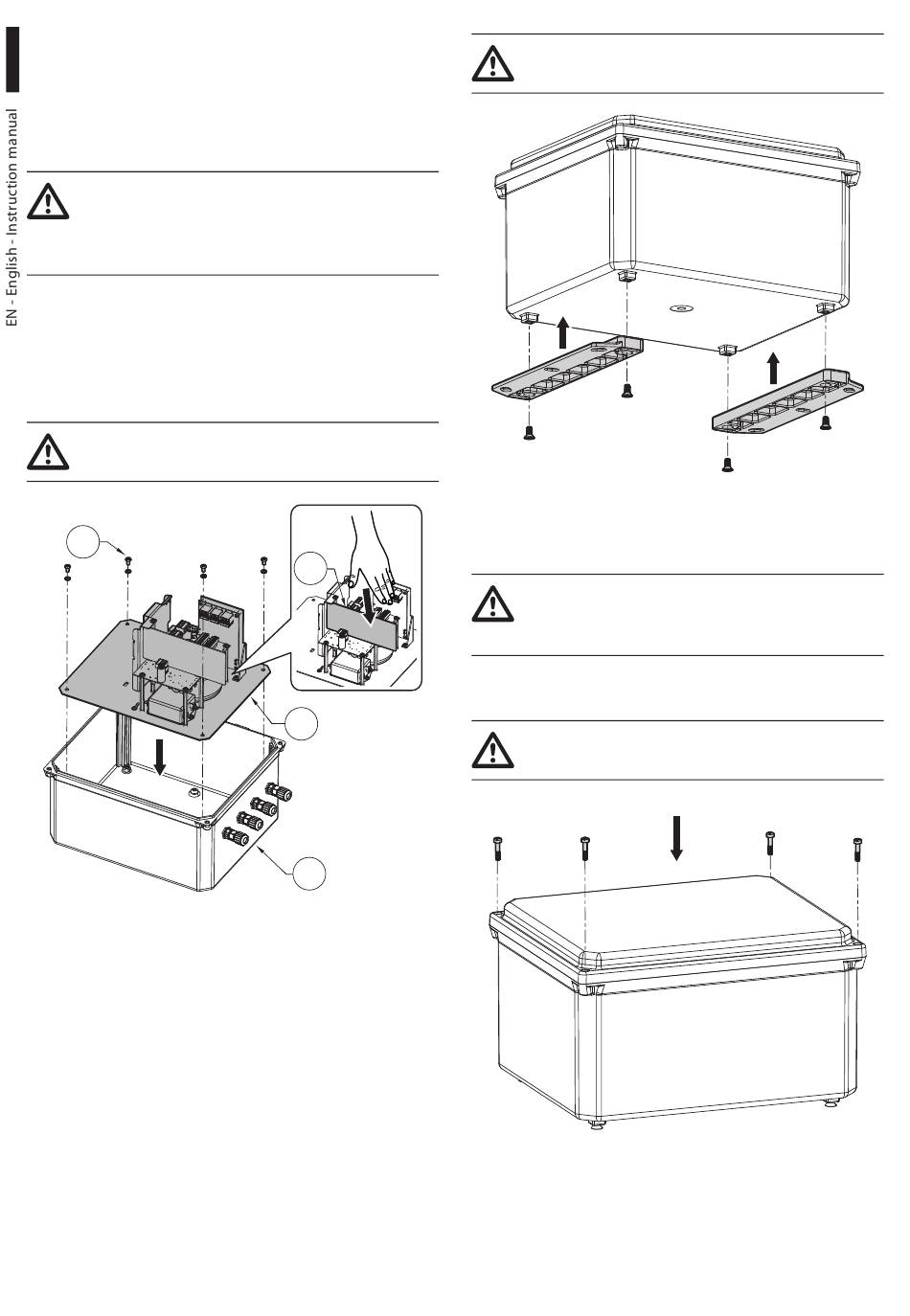

Once the desired hole is made, assemble the cable
glands (not supplied) and holding the board division
plate (03) re-insert the internal block (01) in the box
(04). Fasten the support plate of the internal block
(01) with the previously removed screws (02) (Fig. 9,
page 12).
Pay attention to the fixing. Tightening
torque: 2Nm.
02
Fig. 9

5.6 Fixing flanges assembly

Assemble the fixing flanges as illustrated in the figure,
using the screws supplied.
12
03
01
04
Pay attention to the fixing. Tightening
torque: 2Nm.
Fig. 10

5.7 Product closure

During product opening and closing
operations, be careful not to damage the
cover gasket.
Verify that there is no dirt or debris.
Close the cover with the four screws.
Pay attention to the fixing. Screws
tightening torque: 1Nm.
Fig. 11
