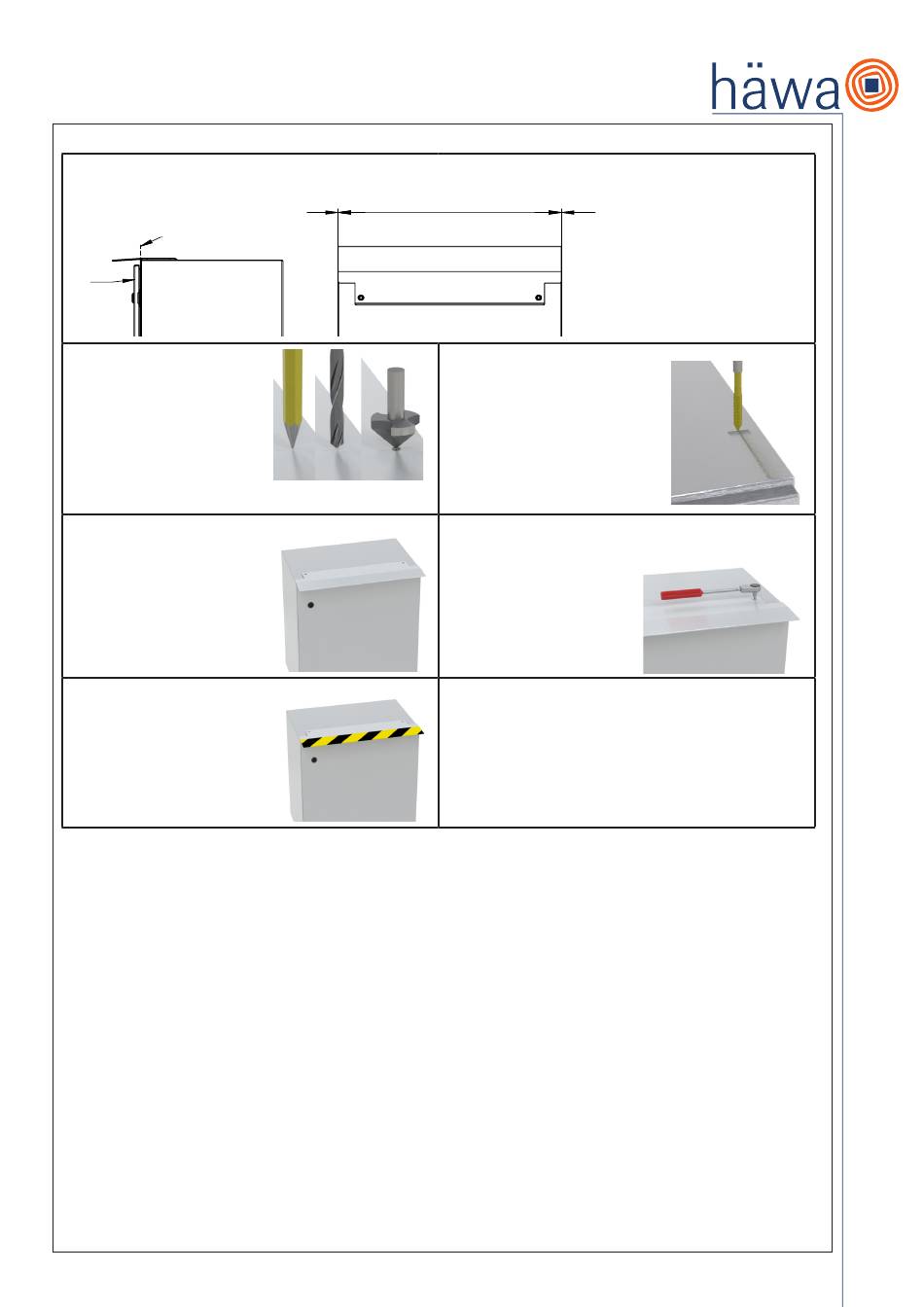

Mounting to häwa enclosures series 33 and third-party enclosures:
1. Align the depth and center the width of the rail and mark attachment holes
Kante auf
Align the edge of the rail
Vorderkante
to the front edge of the
Korpus ausrichten
enclosure body
Door
Tür
Enclosure Body Korpus
2. Punch-mark attachment holes
3. Drill Ø 5 mm hole
4. Deburr
Align the edge of
the rail to the front
5. Position and align the rail on the enclosure using the existing holes.
edge of the
enclosure body
Door
Enclosure body
7. Mark the rail if necessary (see Safety Instructions)
Alignez le bord de la
gouttière avec le
bord avant du corpus

Instructions for Inspection, Maintenance and Repair

Porte Corpus
Please check, if necessary as part of the revision specified by the operator, at least once a year:
- The product for damages, tight fit and proper function.
- The seals for damages and gap-free fit.
- The surface finish for damages.
- The perfect condition of the attachment.
Exchange damaged parts and use original häwa parts only.
When purchasing spare parts, please specify the product code or the spare part code to ensure identification.

Warranty

These instructions are subject to our General Terms and Conditions: https://www.haewa.com/company/imprint.html
Diese Zeichnung darf ohne unsere Genehmigung weder kopiert, noch vervielfältigt, noch Dritten zugänglich
We do not accept liability for printing errors.
gemacht werden. Zuwiderhandlungen verpflichten zu Schadenersatz und sind bei Vorsatz strafbar.

Service

You will find the location of the sales office responsible for your area on the last page.
Service phone number:
= Breite der Regenschiene
Width of the rain rail
= Width of the rain rail
= Largeur de la gouttière
+49 7353 98460
=
Additionally required for stainless steel enclosures: Drill M6 thread
=
6. Mounting of the rail on the enclosure roof
Torque sheet steel: 8 Nm, after the thread is completely tapped.
Torque stainless steel: 2 Nm
Use insert TX30 star bit
=
