TOOL MAINTENANCE & ACCESSORIES

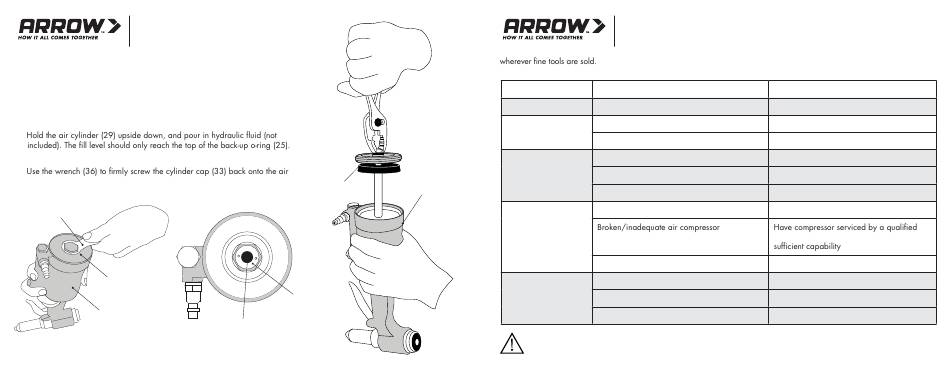

PRIMING
This power tool comes pre-primed with hydraulic oil. (Additional hydraulic oil is
not included for maintenance).
1. Use the wrench (36) to unscrew and remove the cylinder cap (33) from the
bottom of the riveter.
2. Use a pair of pliers (not included) to remove the piston assembly (30-33)
from air cylinder (29).
3.
4. Insert the piston assembly (30 -33) back into the air cylinder (29).
5.
cylinder (29)
Wrench (36)
Cylinder cap (33)
Air cylinder (29)
12
Piston Asm. (30-33)
Air piston
lock nut (30-3)
Back-up o-ring (25)
®
Arrow rivets, pneumatic tool oil and hydraulic oil are available at retail outlets, hardware stores, lumberyards and
PROBLEM
Jaws slipping
Jaws will not open
Stroke is too short
Air cylinder (29)
Weak pulling action
Leaking air
Obey all safety messages. Disconnect air supply before service.
Respecter tous les messages.
Observe todos los mensajes.
TOOL MAINTENANCE & ACCESSORIES
TROUBLE SHOOTING
POSSIBLE CAUSE LIKELY SOLUTION
Worn or damaged jaws Replace jaws
Loose nosepiece Tighten nosepiece
Dirty jaws Clean jaws
Rivet mandrel not properly inserted into rivet tool Fully insert rivet mandrel
Low hydraulic oil Prime rivet tool with hydraulic oil (see pg.12)
Rivet wrong size Use proper rivet length
Low air pressure Check regulator
technician or upgrade to compressor of
Low hydraulic oil Prime rivet tool with hydraulic oil (see pg.12)
Poor hose connections Reconnect using pipe thread seal tape
Damaged o-ring Replace o-ring
Dirty air valve or airline inlet Clean and lubricate with pneumatic tool oil
