POWER TOOL OPERATION

APPLICATIONS
Automotive repair,
watercraft repair, aluminum storm doors and windows,
aluminum sheds, HVAC and general home repair.
RIVETS
The Arrow RT90P pneumatic rivet tool is designed to use
Arrow aluminum, steel or stainless steel rivets in size
®
®
(5mm). For best results use Arrow rivets.
AIR SUPPLY
This pneumatic rivet tool is designed to operate on clean,
dry, regulated compressed air, at 90 psi. Do not connect
this rivet tool to a system with maximum potential air
pressure greater than 120 psi. It is preferable to include
15 feet of the tool, if possible.

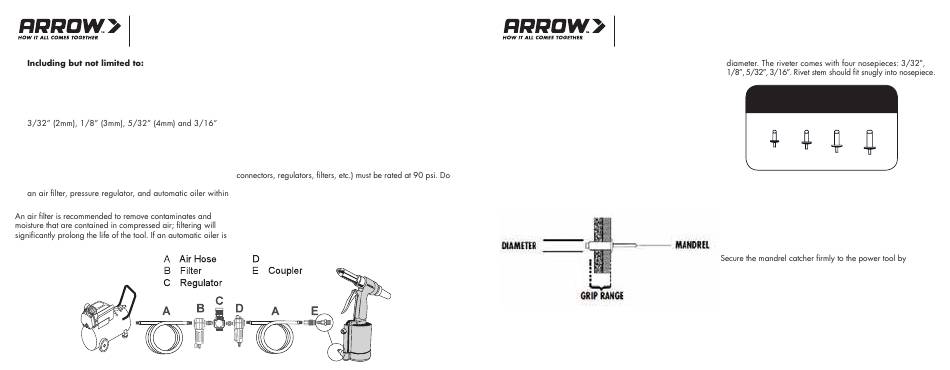

AIR CONNECTION SETUP
Compressor
8
not installed, place 3 to 5 drops of pneumatic tool oil into the
tool's air inlet at the beginning of each work day. (Pneumatic
tool oil not included).
ASSEMBLY
1. MAKE SURE YOU HAVE READ ALL SAFETY
INSTRUCTIONS.
2. The pneumatic rivet tool comes factory-equipped with a
male quick-release connector. The rivet tool must always
be connected to the air supply with a coupling that
removes all pressure when it is disconnected.
NOTE: all components used with this rivet tool (air hose,
not connect this rivet tool to a system with maximum potential
air pressure greater than 120 psi.
3. This tool comes completely assembled. Change nosepiece
as needed and user has option of assembling mandrel
catcher (See pg.9).
Oiler
POWER TOOL OPERATION
HOW TO DETERMINE PROPER RIVET
In choosing the proper rivet for a job, there are two basic
things to consider:
1. Material – select based on the strength needed, corrosion
resistance and material to be joined.
• Steel or stainless steel*– high strength. Use when
joining steel to steel.
• Aluminum – medium strength. Use with aluminum where
rust is a problem.
2. Size (SEE FIGURE 1)
• Diameter - Use larger diameters to create stronger joints.
• Grip Range - Select rivet with a grip range larger than
the thickness of materials to be fastened.
• NOTE: use washers when joining soft materials
like leather or when the hole is oversized
FIGURE 1
If there is no pre-existing hole, drill hole through
materials to be fastened in accordance with blind rivet
diameter.
• Select correct nosepiece in accordance with rivet
®
ARROW RIVETS
Aluminum, steel, stainless steel
3/32" 1/8" 5/32" 3/16"
2mm 3mm 4mm 5mm
SHORT SHORT MEDIUM LONG
HOW TO CHANGE NOSEPIECE
Make sure rivet tool is disconnected from air
supply when changing rivet nose heads. The RT90P
comes with a nosepiece wrench to remove and replace a
nosepiece into the rivet tool nose head. Make sure the new
nosepiece is tightened in place before use.
MANDREL CATCHER
tightening the FRAME CAP NUT. While securing turn the slot
in the mandrel catcher upward to avoid spilling used rivet
mandrels.
A WORD ABOUT ARROW ® RIVETS
®
Only Arrow knows the rivet tolerances required for best
performance of the RT90P™ PNEUMATIC RIVET TOOL. Only
®
Arrow rivets are made to these exact tolerances to ensure top
fastening performance. Accept no substitutes.
Always insist on Arrow ® rivets.
9
