Monogram ZKPN Instructions D'installation

Installation
Instructions
Before you begin - Read these instructions completely and carefully.
Note to Installer: Be sure to leave these instructions with the Consumer.
Note to Consumer: Keep these instructions with your Installation Instructions for future reference.
WARNING
To reduce the risk associated with choking, do not allow children under 3 years of age to
have access to small parts during the installation of this product.
This kit provides for the installation of a tubular stainless steel handle on a 3/4" overlay custom panel.

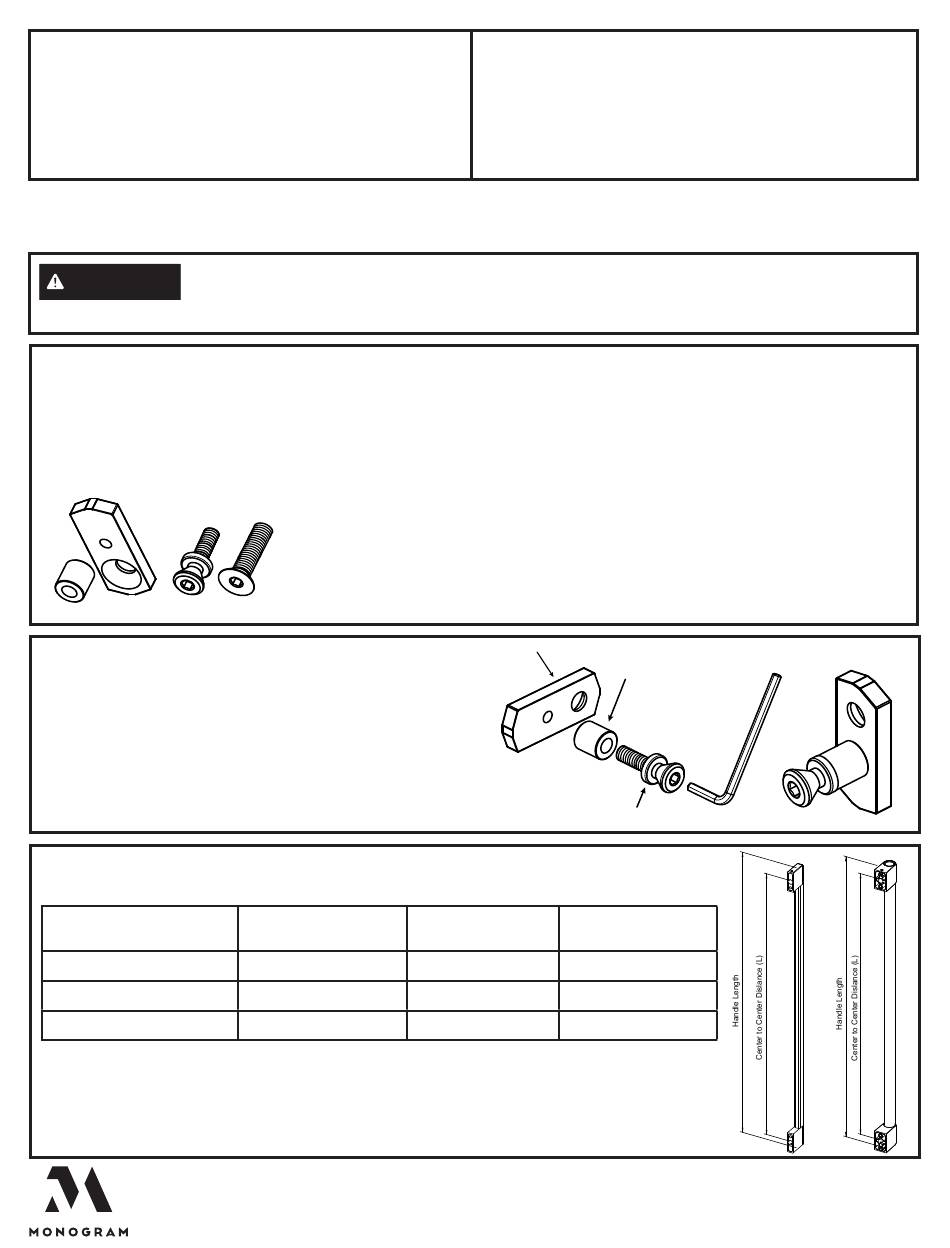

Parts List:
A - Spacer
B - Threaded bracket
C - Stud
D - 5/16 countersunk screw
A B C
This kit provides for the installation of a tubular
stainless steel handle on a 3/4" overlay custom panel.
Stud insert assembly:
• Assemble part A, B and C as illustrated
and create assembly E
A B
Handle Type
Statement/Minimalist
Statement/Minimalist
Statement/Minimalist
D
C D
Table 1
Handle Orientation
Vertical
Horizontal
Horizontal
Printed in United States
Handle Mounting Stud Kit
For Custom Panels
Tools and Materials Required:
Allen Key (Provided with the kit)
Drill, 1/2" and 11/32" drill bit and 1" router bit
Custom door panel
B
Safety glasses
A
Center punch
Hammer
Pencil
Measuring tape or scale
Monogram Statement or Minimalist handle collection
C
B
Center to center
Handle length
distance (L)
32-1/32" (81.36 cm) 34.-13/32" (87.40 cm)
27-1/8" (68.88 cm) 29-1/2" (74.93 cm)
33-1/16" (84.00 cm) 35-7/16" (90.04 cm)
ZKPN
E
A
C
SCALE 2.000
31-1000561 01-21 GEA
E
