PCR4500

OPERATING INSTRUCTIONS

Power Button
1
Press the POWER button (1) to turn the unit on
or off.
Volume Control
2
Press the VOLUME > button (2a) to increase
the volume or the VOLUME < button (2b) to
decrease the volume.
AM/FM Band Selector
3
Press the BAND button (3) to switch the radio
band between "AM" and "FM".
Manual Tuning Control
4
Rotate the TUNE knob (4) to the left or right to
select the desired radio station. When tuning in
a station, always adjust the control so that you
are receiving the full signal and are on the
center of the broadcast frequency. If the radio is
not on frequency, you could experience noise
and reception problems.
Select Button (SEL)
5
The SEL button is used to select the audio
function (volume, bass, treble, balance or fade)
to be adjusted using the VOLUME control (2).
Press the SEL button (5) once to set the unit for
volume adjustment ("Vo" will appear on the
display panel). Press the button additional
times to select bass adjustment ("bA" on
display panel), treble adjustment (7), balance
(b), fader (F), and volume (Vo) again. The
display will return to the normal indication 5
seconds after the last adjustment or when
another function is activated.
Bass Control
5
To adjust the bass level, first select the Bass
mode by pressing the SEL button (5) until "bA"
appears on the display panel. Within five
seconds, press the VOLUME buttons (2a and
2b) to adjust the bass response from a

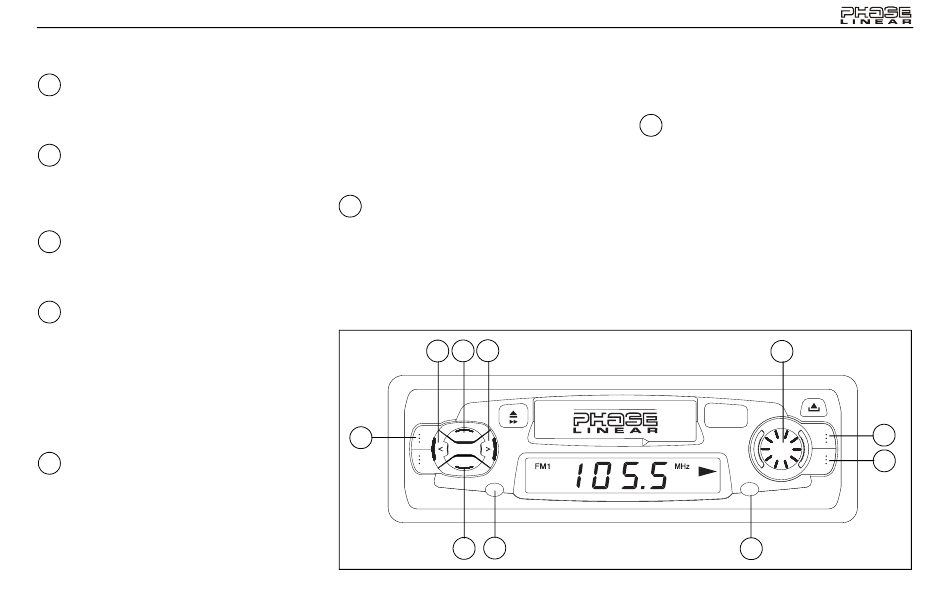

6
2b 2a
5 MO/ST
SEL
VOLUME
DSP
BAND
TAPE
3 12
7
minimum of "bA -7" to a maximum of "bA 7".
"bA 0" represents a flat response.
Treble Control
5
To adjust the treble level, press the SEL button
(5) until "7" appears on the display panel. Within
five seconds, press the VOLUME buttons (2a
and 2b) to adjust the treble from a minimum of
"7 -7" to a maximum of "7 7". "7 0" represents a
flat response.
AM / FM / CASSETTE
PCR4500
POWER
1
4
RELEASE
8
MUT
TUNE
7
LOC
