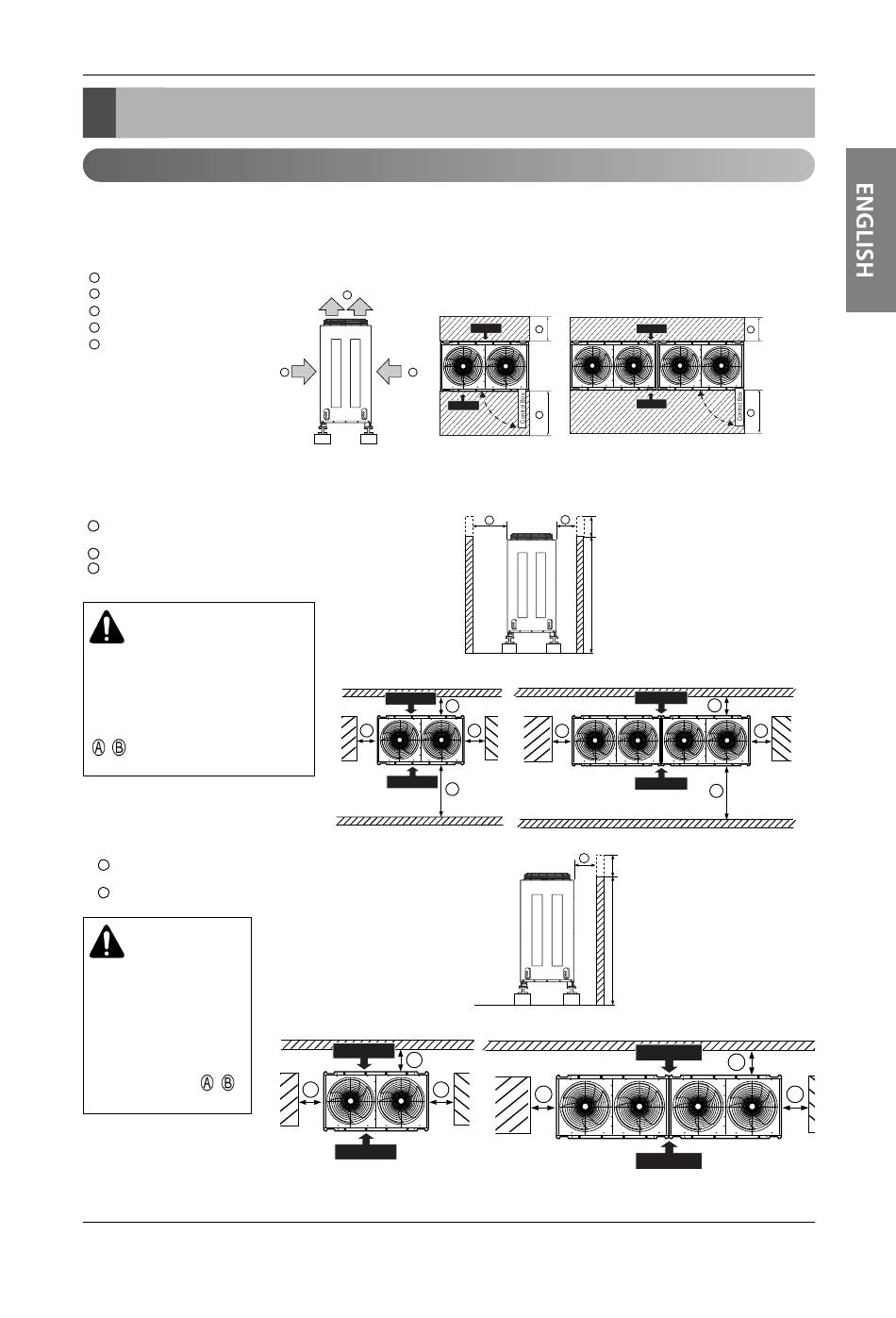

Installation Space

Individual Installation
I Basic space required
A space of at least 250mm(9-13/16 inch) is necessary at the back for inlet air. Taking servicing, etc. from the
rear into account, a space of about 915mm(36 inches) should be provided, the same as at the front.
915mm(36 inches) or more (Control box is open/close type)
A
250mm(9-13/16 inch) or more
B
Top discharge (open in principle)
C
D Front inlet (open in principle)
E Rear inlet (open in principle)
I When inlet air enters from right and left sides of unit
915mm(36 inches) or more
A
(Control box is open/close type)
B 250mm(9-13/16 inch) or more
150mm(5-7/8 inch) from the wall
C
CAUTION
Wall height(H) must not exceed
height of the product. If the wall
height is higher than the whole
height of product by (h), Add (h) to
, .
A 250mm(9-13/16 inch) or more
(350mm(13-3/4 inch)or more at the coastal area.)
150mm(5-7/8 inch) from the wall
B
CAUTION
Wall height(H) must not
exceed height of the
product. If the wall
height is higher than the
whole height of product
by (h), Add (h) to , .
C
D E
Front Side
< Side view >
Rear Side
B
C
Front Side
A
Rear Side
A
B B
Front Side
Rear Side
Rear Side
B
Front Side
A
< Top view >
A B
h
H
< Side view >
C C
< Top view >
A
h
H
< Side view >
B
< Top view >
Installation Manual 17
