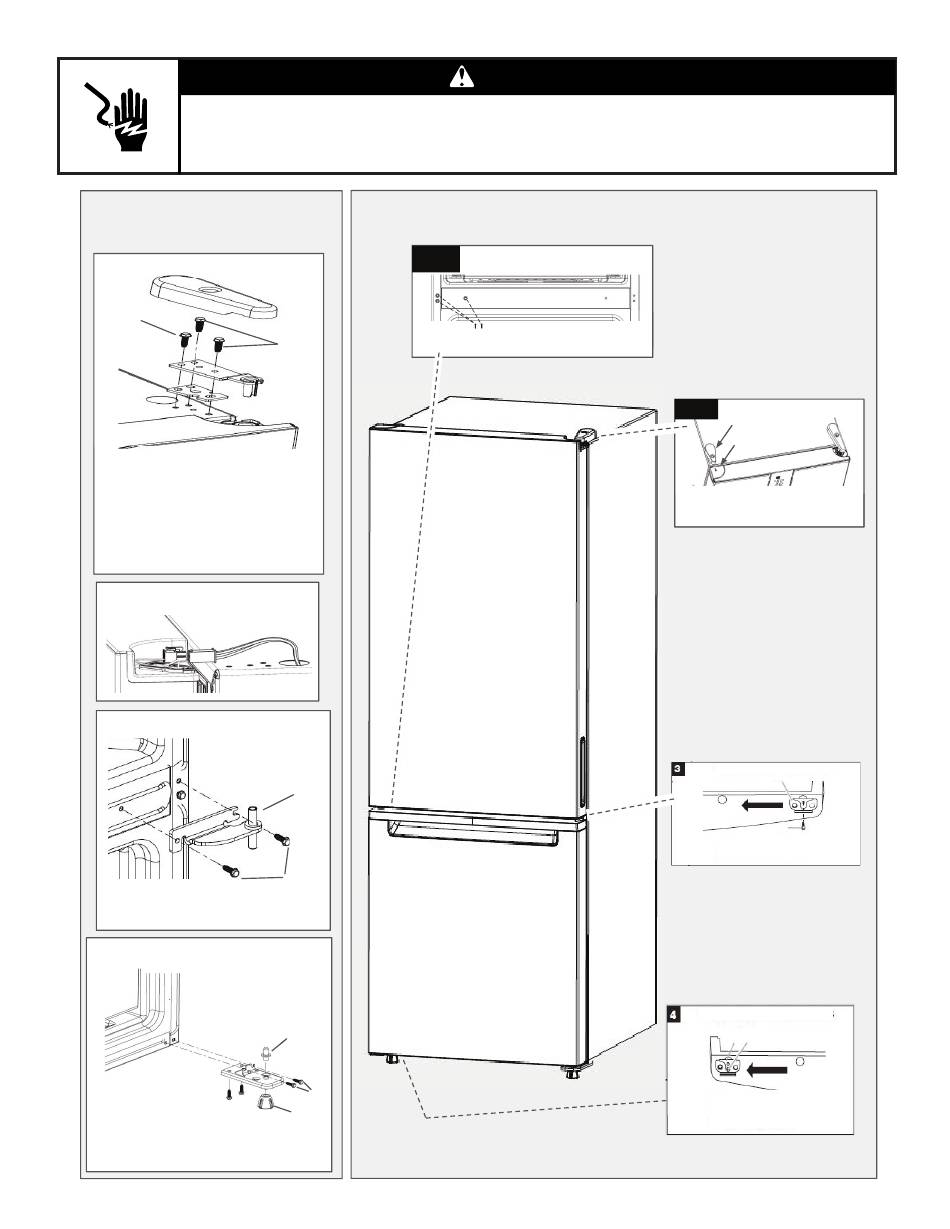

DOOR REMOVAL AND
REPLACEMENT
Top Hinge
A
B
C
A. 5/16" Hex-Head Hinge Screws
B. Top Hinge
C. Spacer
In case your refrigerator has
electronic control on the door
disconnect the cables and
connect them on the other side
Wiring plug
Center Hinge
A. Center Hinge
B. 5/16" Hex-Head Hinge Screws
Bottom Hinge
A. Bottom Hinge
B. 5/16" Hex-Head Hinge Screws
C. Leveler
03-Dec-2019 18:58:20 EST | RELEASED
Disconnect power before removing doors.
Failure to do so can result in death or electrical shock.
A
A
B
A
B
C
In some European factories the letter "W" of the part code mentioned herein will be automatically
WARNING
Electrical Shock Hazard
DOOR SWING REVERSAL (OPTIONAL)
1-1
A
A. 5/16" Hex-Head Hinge
Screws and Washers
9
replaced by the number "4000" (e.g. "W12345678" becomes "400012345678")
1-2
A
B
A. Cabinet Hinge Cover
B. Door Hinge cover
Removal of Door Stops
A
B
A. Door Stop
B. Door Stop Screw
Reinstallation of Door
Stops
A B
A. Door Stop
B. Door Stop Screw
