Electrical connection

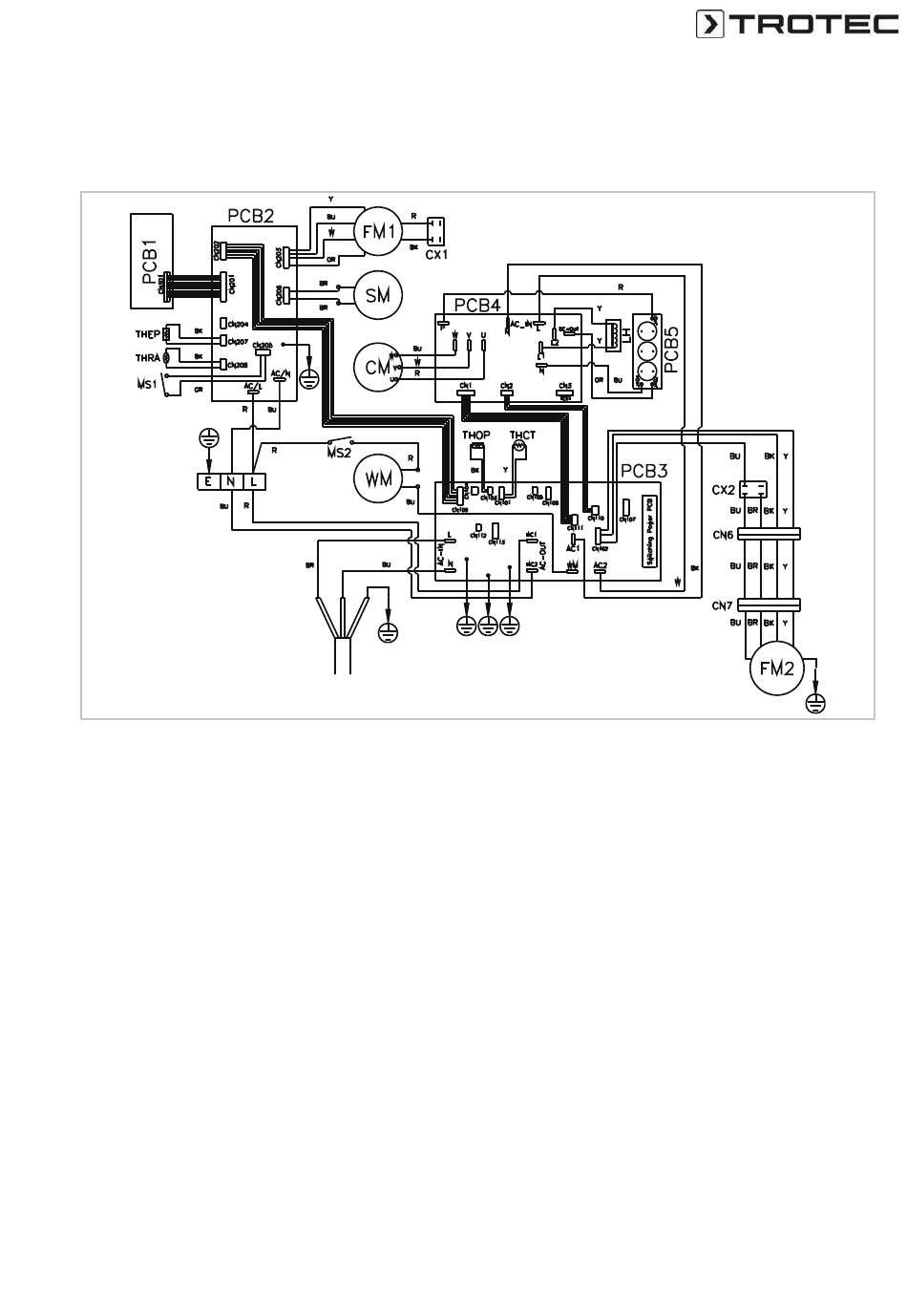

Electrical connection diagram
Fig. 17: Electrical connection diagram
PCB1 Control board
PCB2 Main board
SM Swing motor
FM1 Vaporiser fan
FM2 Condenser fan
WM Condensate pump
CM Compressor
OLP Compressor excessive temperature protec-
tion
CX1 Condenser, vaporiser fan
CX2 Condenser, condenser fan
CX3 Condenser compressor
RT Sensor circulating air temperature
CT Sensor frost protection
MS1 Microswitch alarm (container full)
MS2 Microswitch condensate pump
Colour code:
BK Black
BR Brown
BU Blue
GR Gray
OR Orange
R Red
W White
Y Yellow
