To Learn One Address On Wall Switch (Unique Addressable Control) - Ebode RMV Guide De L'utilisateur

Receiver - Wall-Mounted Shutter Module
Please bear in mind to shut off general mains in the electrical panel.
To connect the in-wall switch
How to connect Live + Neutral Input
L : stands for input Live 230V - 50 Hz
N : stands for input Neutral 230V - 50Hz
Wiring up Live +
Neutral outputs
N : Neutral
C : Never connect C : only for low voltage
How to install wall mount switch
Wall insert box : dia. 65mm, 40mm deep
1.Gently take off paddle from wall switch.
2.Wire up Wall Switch within wall insert box, then fix receiver
along with provided screws again wall insert box.
Please note that the general mains in the electrical panel
should be turned on again before you start programming.
To learn one address on wall switch (unique
addressable control)
An address is made of a HOUSE code and UNIT code, please refer
to the manual of the transmitter to properly fix the code to learn
by the receiver.
The following procedure consists of learning one (or even more
than one) address from the transmitter into the receiver RMV.
July 2009
CONNECTING BLOCK

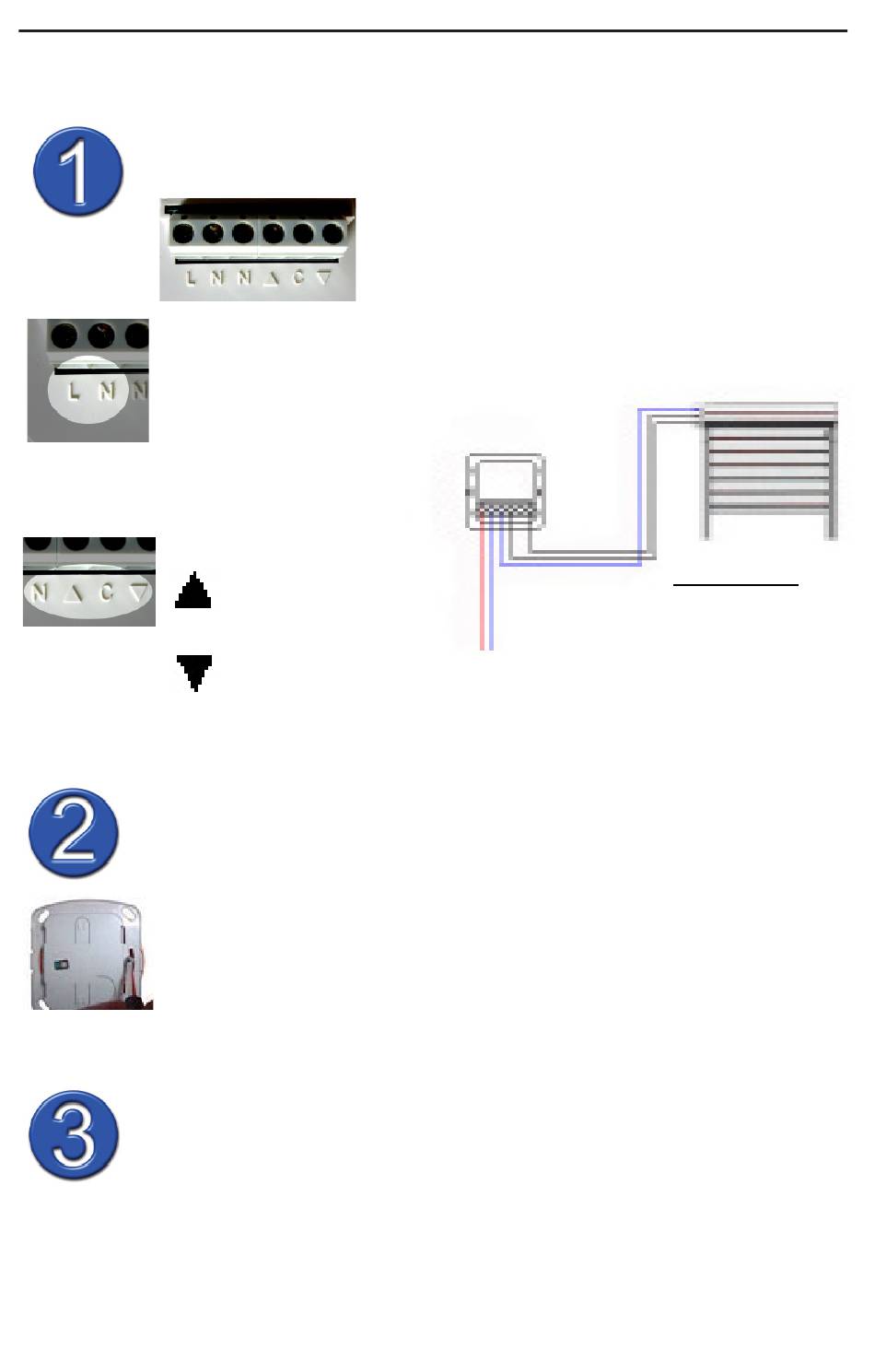

Connect all wires as indicated (refer to wiring
diagram 1)
LIVE UP output to
Motorization
LIVE DOWN output to
Motorization
.
Ph N
page 6
Ref : RMV
Schematic 1
.
RMV
