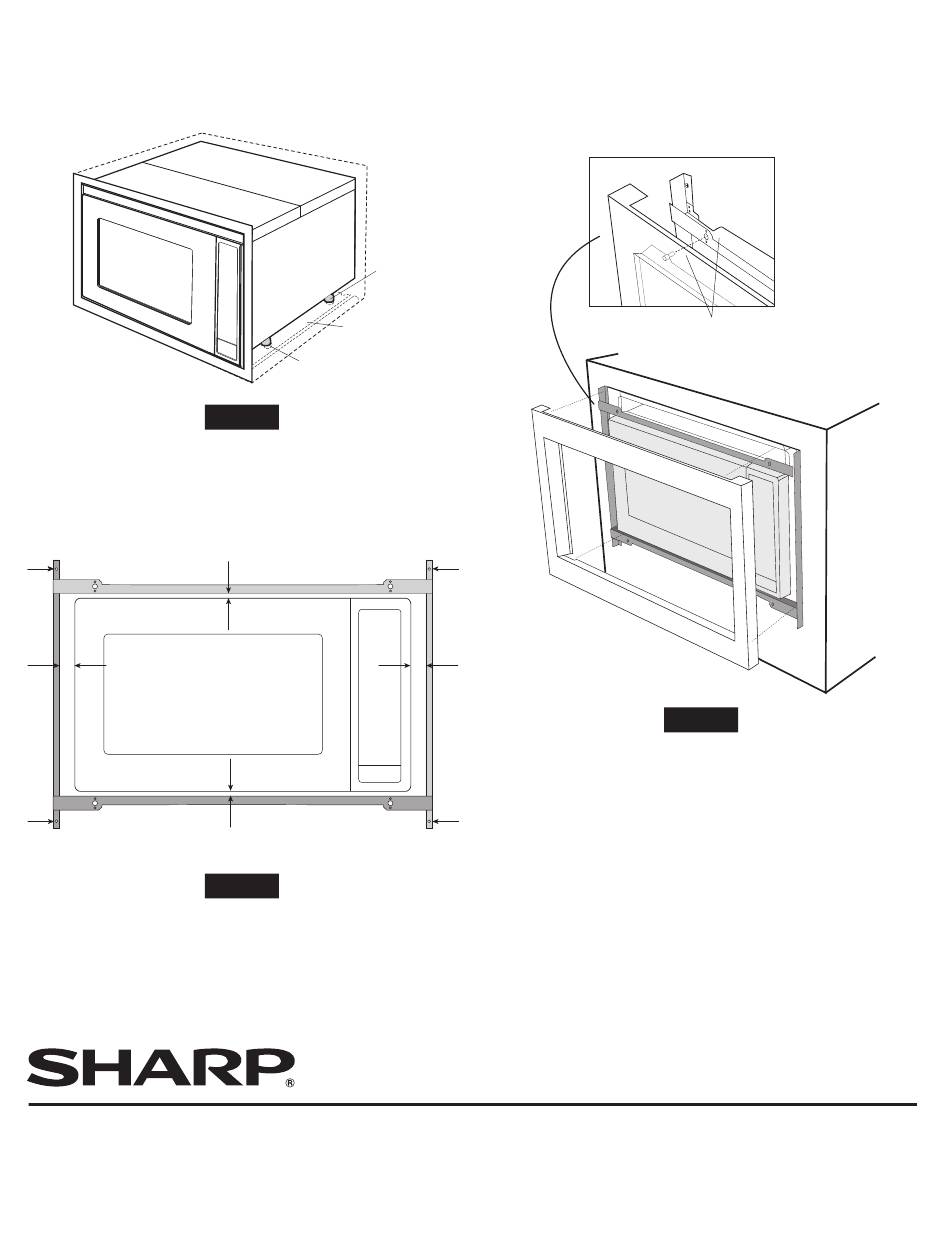

C. CABINET INSTALLATION: Avoid pinching the cord
between the oven and the wall. Adjust the position of the
oven so that the feet of the oven are fitted into the holes
of the Bottom Duct Assembly. See Figure 8.
D. BACK FRAME INSTALLATION: Position back frame equal
space top to bottom, side to side. Mark for 4 holes, center
punch and pre-drill with 1/16" drill bit. Secure frame with 4
SCREWS (G). See Figure 9.
MOUNTING HOLES
EQUAL GAP
SIDE TO SIDE
EQUAL GAP TOP, BOTTOM
MOUNTING HOLES
SHARP ELECTRONICS CORPORATION
1 Sharp Plaza Suite 1, Mahwah, New Jersey 07495-1123, U.S.A.
SHARP ELECTRONICS OF CANADA LTD.
335 Britannia Road East Mississauga, Ontario L4Z 1W9, Canada
E
FOOT
BOTTOM
DUCT
ASSEMBLY
DUCT RECESS
Figure 8
MOUNTING HOLES
MOUNTING HOLES
Figure 9
E. FRONT FRAME INSTALLATION: Place the FRONT FRAME
onto the BACK FRAME and align ball studs and receivers.
Secure the FRONT FRAME to the BACK FRAME by firmly
pushing the front frame onto the back frame engaging the
four (4) snap attachments. See Figure 10.
For any other assistance or information about this kit,
in USA please call Sharp's Customer Assistance Center at
4
SNAP
ATTACHMENT
Figure 10
1-800-BE-SHARP (1-800-237-4277)
In Canada, call 905-568-7140
