INSTALLATION INSTRUCTIONS
For Sharp Built-in Kit Models RK-94S27 or RK-94S30
THIS KIT IS UL APPROVED TO ALLOW CERTAIN MICROWAVE OVENS TO BE INSTALLED
ABOVE ANY ELECTRIC WALL OVEN. PLEASE SEE THE OPERATION MANUAL
REGARDING APPROVED BUILT-IN APPLICATIONS.
IMPORTANT:
This Built-in Kit is designed for and approved only for those Sharp
Microwave Ovens specifying Built-In Kit RK-94S27 or RK-94S30.
Refer to operation manual for approved models or www.sharpusa.
com\trimkits
PLEASE READ THESE INSTRUCTIONS THOROUGHLY BEFORE
BEGINNING INSTALLATION!
• Always DISCONNECT THE PLUG of the microwave oven from the
electrical outlet before installing the Built-in Kit. Remove the Carou-
sel turntable from the oven cavity.
• Because the kit includes metal parts, due caution should be used
in handling and installation to avoid the possibility of injury.
A
DUCT (A)-1
B
DUCT (A)-2
C
DUCT (A)-3
D
DUCT (B)
E
DUCT (C)
F
G
H
I
J
K
L
ITEM
A
DUCT (A)-1
PDUC-0259WRW0
B
DUCT (A)-2
PDUC-B127MRP0
C
DUCT (A)-3
PDUC-A734WRW0
D
DUCT (B)
PDUC-0260WRW0
E
DUCT (C)
PDUC-A274WRW0
F
BOTTOM DUCT ASSEMBLY
FDUC-B099MRK1A
G
M3.9-16MM PAN HEAD TAPPING
SCREW, ZINC
XOPS740P16000
H
WOOD SCREW
XTSS740P20000
I
CABINET SCREW/ CLEAR
XOTS740P12000
J
FRONT FRAME
RK-94S27: FDECAB229MRK0
RK-94S30: FDECAB227MRK0
K
BACK FRAME
RK-94S27: FDECAB230MRK0
RK-94S30: FDECAB226MRK0
L
CUSHION SHEET
PCUSGB059MRP0

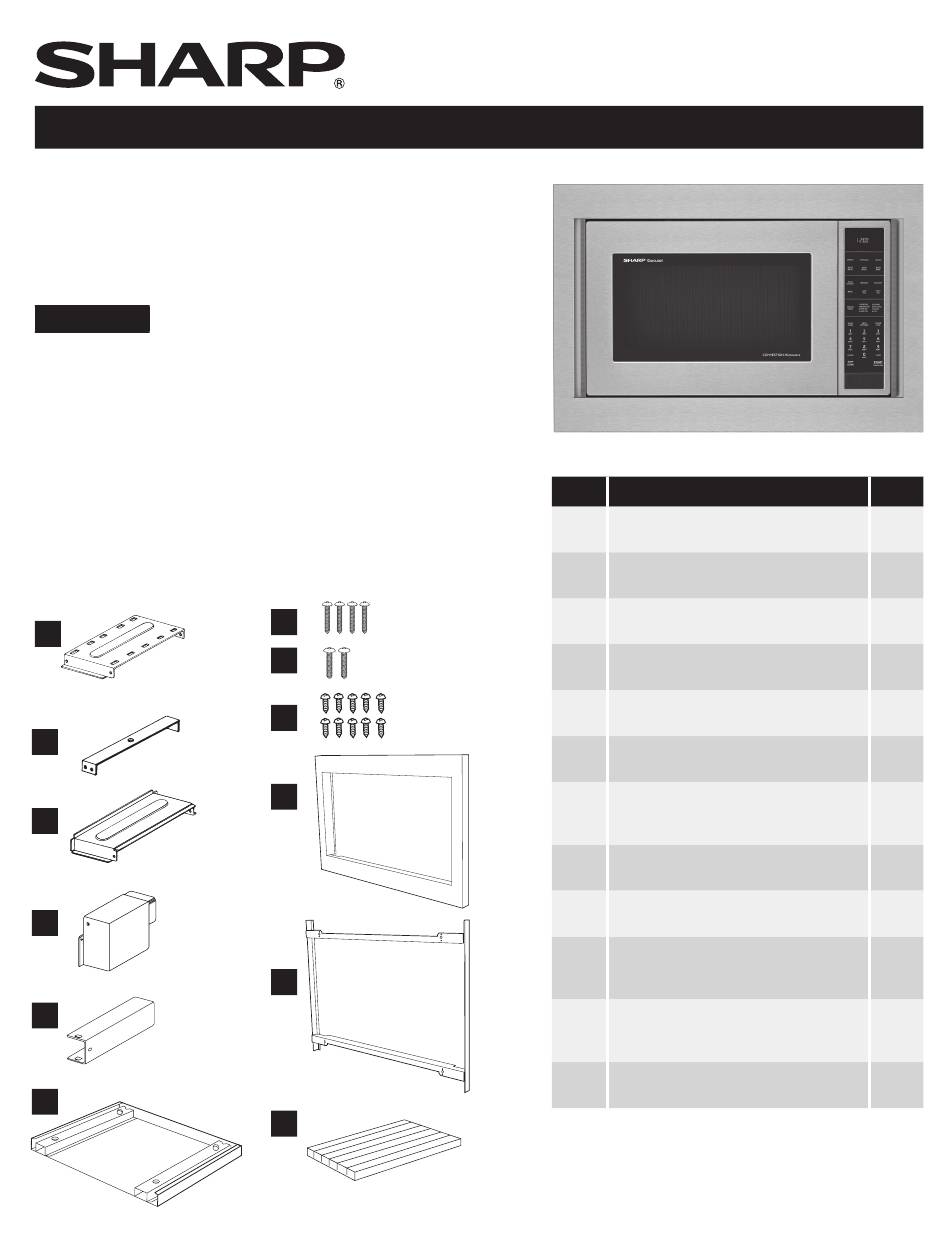

Check list for parts when unpacking. Note J. Front
Frame and K. Back Frame are shipped attached.
Snap apart before installation.
1
PART NAME
QTY
1
1
1
1
1
1
4
2
10
1
1
1
E
