Function and features

The splitter allows to take the AS-i voltage from the M12 socket (cur-
rent rating 2 A).
Mounting
Disconnect the installation.
Mounting of the lower part
Select a plane mounting surface. Screw the lower part onto the
mounting surface, the screws are not supplied.
Insert the AS-i flat cable (yellow) into the cable duct. Ensure correct
positioning of the cable in the profiled slot.
Mounting of the upper part / locking
Place the upper part. It can be locked on both sides using a screwdriv-
er (see drawing) or a sufficiently large pipe wrench. Press the upper
part onto the lower part. The M12 connector can then be connected,
tightening torque 0.8 Nm.
Removal of the upper part / unlocking
Apply two screwdrivers to the housing and press them down simulta-
neously.

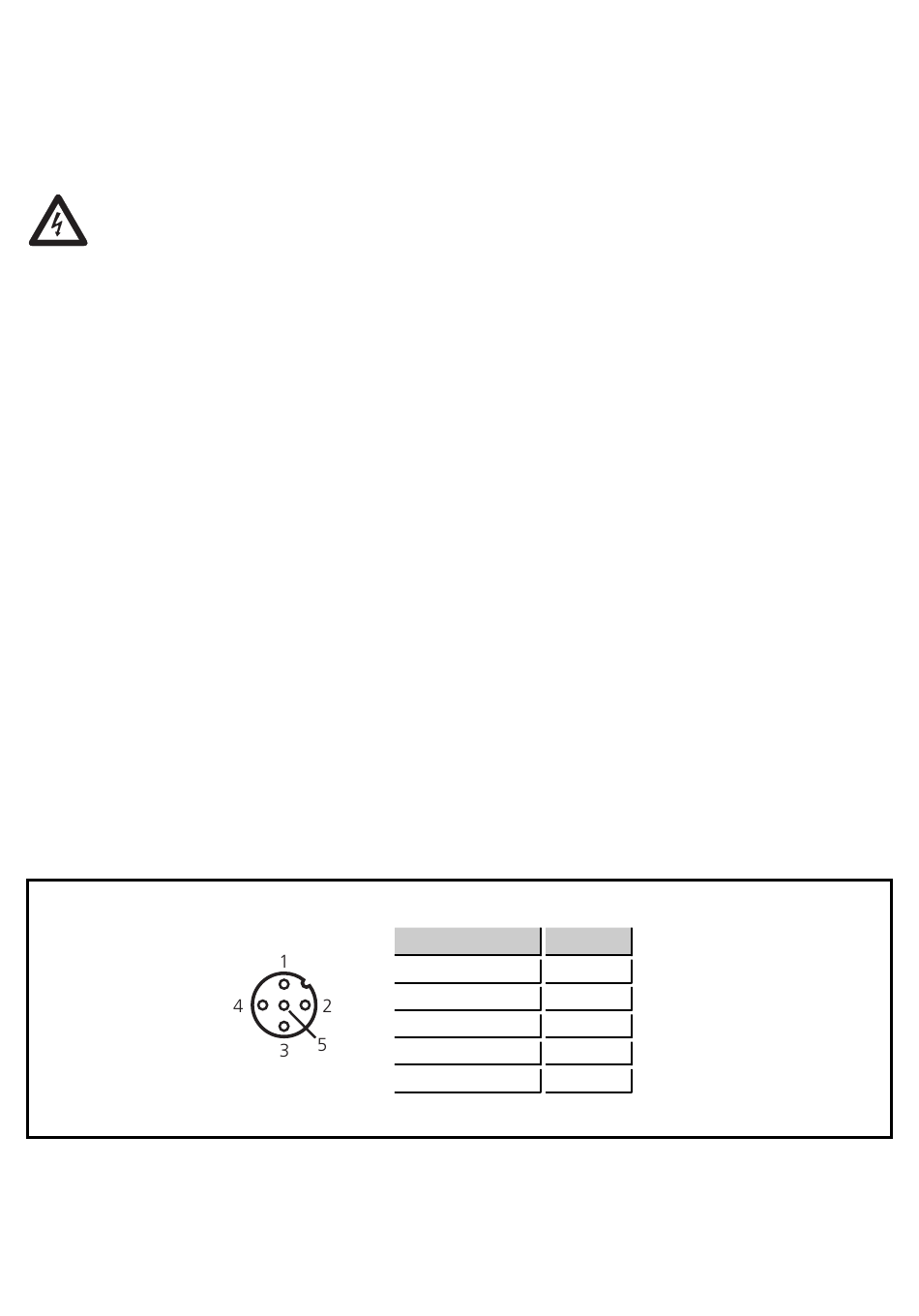

Pin connection
M12 socket Pin
AS-i +
-
AS-i -
-
-
1
2
3
4
5
3
