Fitting and Removing the Display

Precaution:
• To prevent failure, be sure to turn the ignition switch or system power OFF before fitting or
removing the display. Also take care not to grip the screen or buttons too firmly or to drop the
display.
• Do not let any water get on the terminals on the display or on the cable and do not allow the ter-
minals to be shorted by a metal object or the like. This can cause system breakdown.
• Be careful not to touch terminals on the display or on the cable. Doing so may cause connection
failures. If any terminals are stained, wipe them with a clean dry cloth.

To fit the display

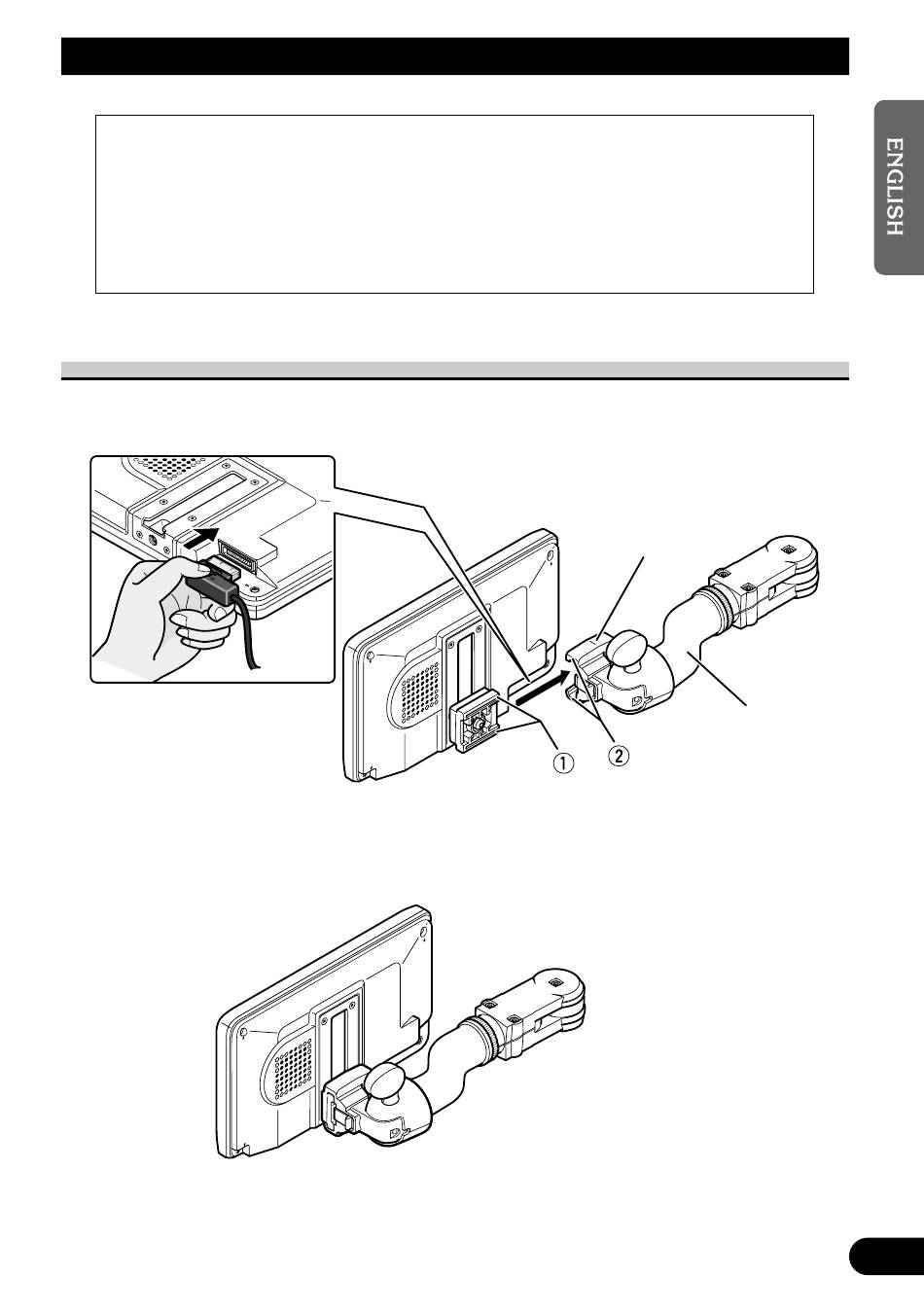

1. Fit part 1 of the display into the grooves 2 of the base.
Connect the cable to the
display.
2. Slide the display until it clicks into place.
Base
Mounting arm
(supplied)
