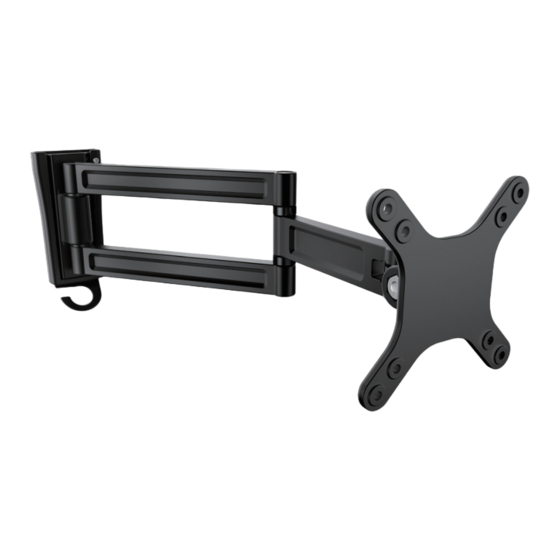

Wall-Mount Monitor Arm
- Dual Swivel
ARMWALLDS
FR: Guide de l'utilisateur - fr.startech.com
DE: Bedienungsanleitung - de.startech.com
ES: Guía del usuario - es.startech.com
NL: Gebruiksaanwijzing - nl.startech.com
PT: Guia do usuário - pt.startech.com
IT: Guida per l'uso - it.startech.com
For the latest information, technical specifications, and support for
this product, please visit www.StarTech.com/ARMWALLDS.
Manual Revision: 12/04/2018
*actual product may vary from photos
Publicité
Table des Matières
Manuels Connexes pour StarTech ARMWALLDS
Sommaire des Matières pour StarTech ARMWALLDS
- Page 1 Wall-Mount Monitor Arm - Dual Swivel ARMWALLDS *actual product may vary from photos FR: Guide de l’utilisateur - fr.startech.com DE: Bedienungsanleitung - de.startech.com ES: Guía del usuario - es.startech.com NL: Gebruiksaanwijzing - nl.startech.com PT: Guia do usuário - pt.startech.com IT: Guida per l’uso - it.startech.com For the latest information, technical specifications, and support for this product, please visit www.StarTech.com/ARMWALLDS.
- Page 2 StarTech.com. Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to which this manual applies by the third-party company in question. Regardless of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby...
- Page 3 Warning statements Mensagens de aviso Make sure to assemble this product according to the instructions. Failure to do so might result in personal Certifique-se de que monta este produto de acordo com as instruções. O incumprimento pode resultar injury or property damage. em ferimentos pessoais ou danos de propriedade.
-
Page 4: Table Des Matières
Table of Contents Warnings ..............................i Introduction ....................1 Product dimensions ..........................1 Technical specifications .......................... 2 Package contents ............................3 Requirements ............................. 5 Installation ....................5 Attach the mounting plate to a wall ....................5 Attach a monitor to the display arm ....................6 Adjust the angle of the monitor ...................... -
Page 5: Introduction
Introduction Product dimensions 70° 90° 90° 90° Instruction manual... -
Page 6: Technical Specifications
Technical specifications Type of measurement Measurement VESA mounting hole pattern 75x75 100x100 Rated load Up to 15 kg (33 lb.) Tilt +450 to -450 Screen size Between 330 mm and 686 mm (13 in. and 27 in.) Swivel +900 to -900 Instruction manual... -
Page 7: Package Contents
Package contents Display arm Mounting plate Qty: One Qty: One 2.5 mm hex key 4 mm hex key Qty: One Qty: One 5 mm hex key Set screw Qty: One Qty: One Instruction manual... - Page 8 M4x14 mm screws M5x14 mm screws Qty: Four Qty: Four Mounting screws Screw anchors Qty: Two Qty: Two Instruction manual Qty: One Instruction manual...
-
Page 9: Requirements
ARMWALLDS or to provide specific mounting instructions for your wall structure. 1. Use the holes in the mounting plate as a template and use a pencil to mark the location on the wall where you want to attach the wall mount. -
Page 10: Attach A Monitor To The Display Arm
Warning! Attaching the monitor is a two-person job. Do not attempt to complete this task by yourself. To accommodate different monitor sizes, the ARMWALLDS comes with two sets of screws that are different lengths and diameters. To select the appropriate screws for the type of monitor that you’re using, complete the following: •... - Page 11 4. Carefully lift up the display arm with the monitor attached and slide the display arm into the mounting plate. (figure 3) figure 3 Display arm Mounting plate 5. Insert the set screw into the mounting plate and display arm. 6.
-
Page 12: Adjust The Angle Of The Monitor
7. Run the monitor cable through the cable-management hook on the bottom of the mounting plate. (figure 5) figure 5 Cable-management hook Adjust the angle of the monitor To position the monitor, do either of the following: • Use the 5 mm hex key to loosen the screw in the monitor mount. Move the monitor and then tighten the screw again. -
Page 13: Technical Support
Limitation of liability In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their officers, directors, employees or agents) for any damages (whether direct or indirect, special, punitive, incidental, consequential, or otherwise), loss of profits, loss of business, or any pecuniary loss, arising out of or related to the use of the product exceed the actual price paid for the product. - Page 14 StarTech.com is an ISO 9001 Registered manufacturer of connectivity and technology parts. StarTech.com was founded in 1985 and has operations in the United States, Canada, the United Kingdom and Taiwan servicing a worldwide market.
