INSTALLATION INSTRUCTIONS
5.2
Connections
Install the dishwasher so as to allow ease of access to the electrical and hy-
draulic connections through the adjacent unit. These connections must never
be behind the dishwasher.
The inlet and drain hoses can be pointed in all directions. make sure that they
are not bent, crushed or too tight. Tighten the ring nut after pointing the hoses
in the required direction.

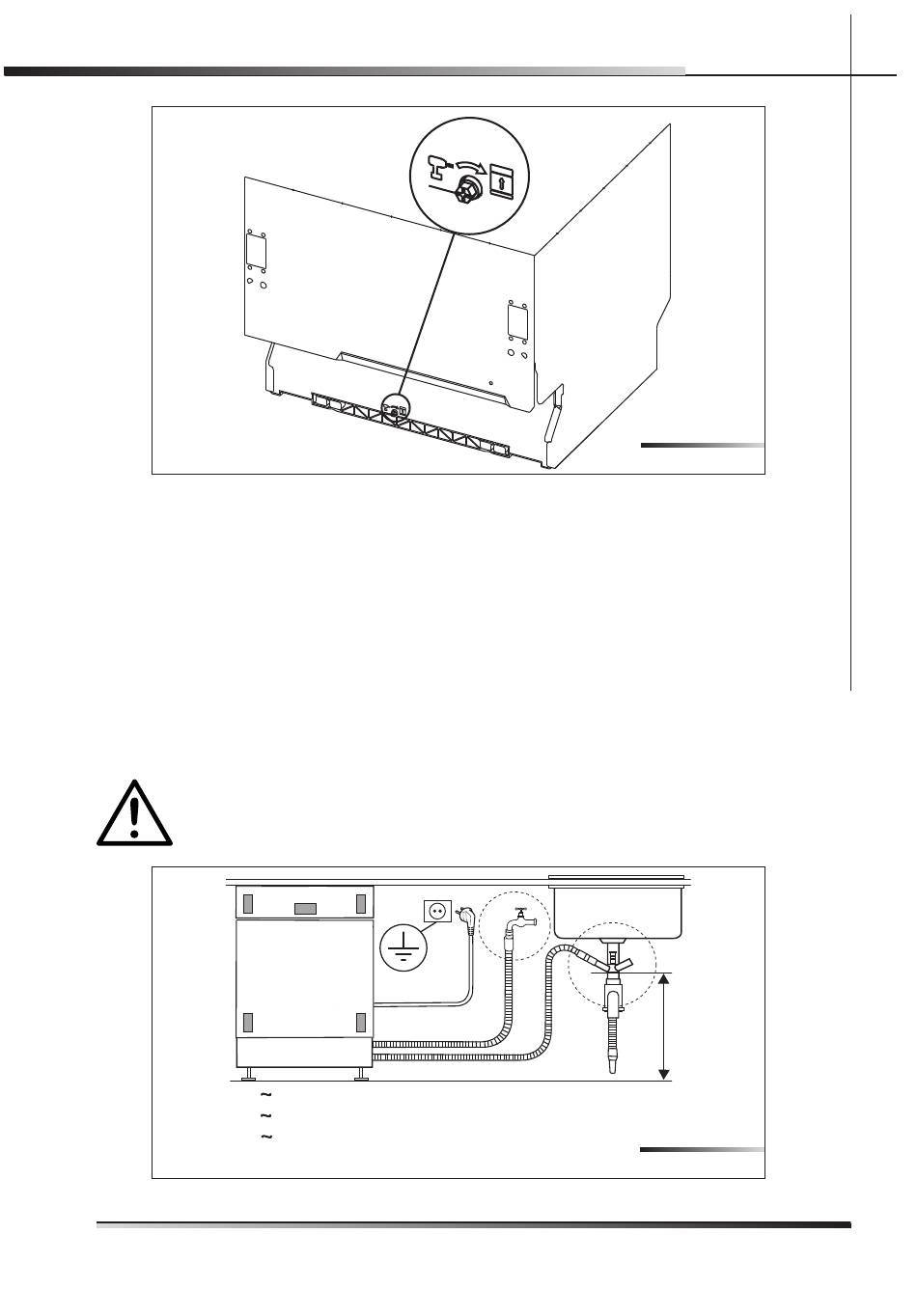

Figure 5-03 indicates the distances to maintain between the dishwasher and
the various connections.
FIRE HAZARD!
DO NOT COVER OR CRUSH THE CORD PLUG.
A =
B =
C =
D = min. 400 mm / 16"
Rev 0.0
A
B
1200 mm / 47"
1500 mm / 59"
1600 mm / 63"
C
Fig. 5-02
D
Fig. 5-03
13
EN
