3.1 Kit supplied with dishwasher (DWTPC10FI)

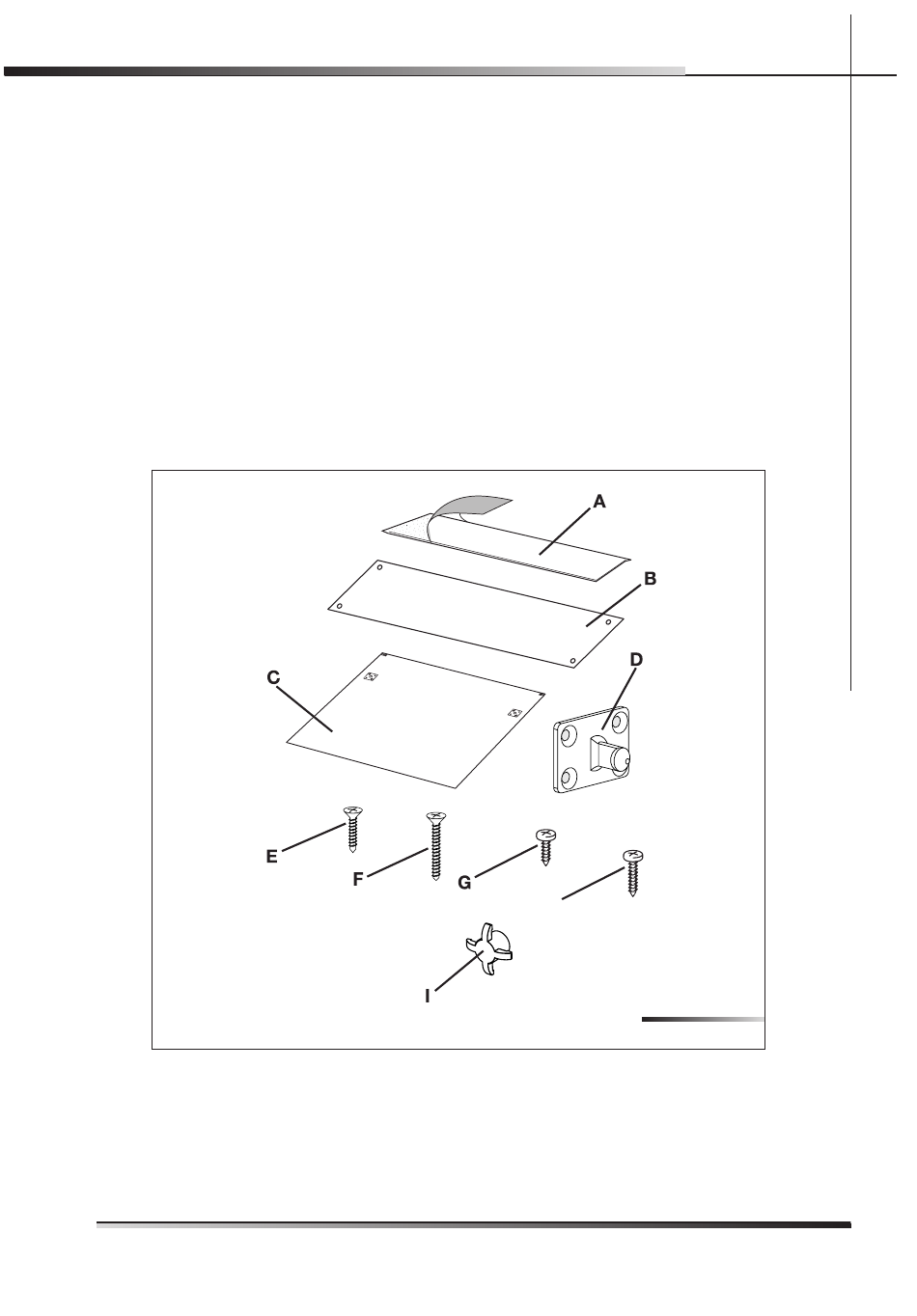

The kit supplied with the dishwasher comprises:
• 1 adhesive steam guard (depending on the model) (ref. A fi g. 3-02);
• 1 steel adhesive steam guard (depending on the model) (ref. B fi g. 3-02)*;
• 1 template for door panel (ref. C fi g. 3-02);
• 2 hooks for door panel (ref. D fi g. 3-02);
• 8 screws for securing the door panel hooks (ref. E fi g. 3-02);
• 2 screws for securing the door (ref. F fi g. 3-02);
• 4 screws for fi xing the dishwasher to the adjacent walls (ref. G fi g. 3-02);
• 2 upper fi xing screws (ref. H fi g. 3-02);
• 2 screw caps (ref. I Fig. 3-02);
Accessories A and G also provided with the model DWTPC5FC
H
Fig. 3-02
* The adhesive protection is suitable for kitchens with worktops that do not allow the
steel protection to be fi xed with screws (e.g.:+ marble or masonry), but it can be also
used with other materials.
