Getting started

≥ Turn off all equipment before connection and read the appropriate operating instructions.
≥ Do not connect the AC power supply cord until all other connections are complete.
≥ Insert the plugs of the cables to be connected all the way in.
≥ Do not bend cables at sharp angles.

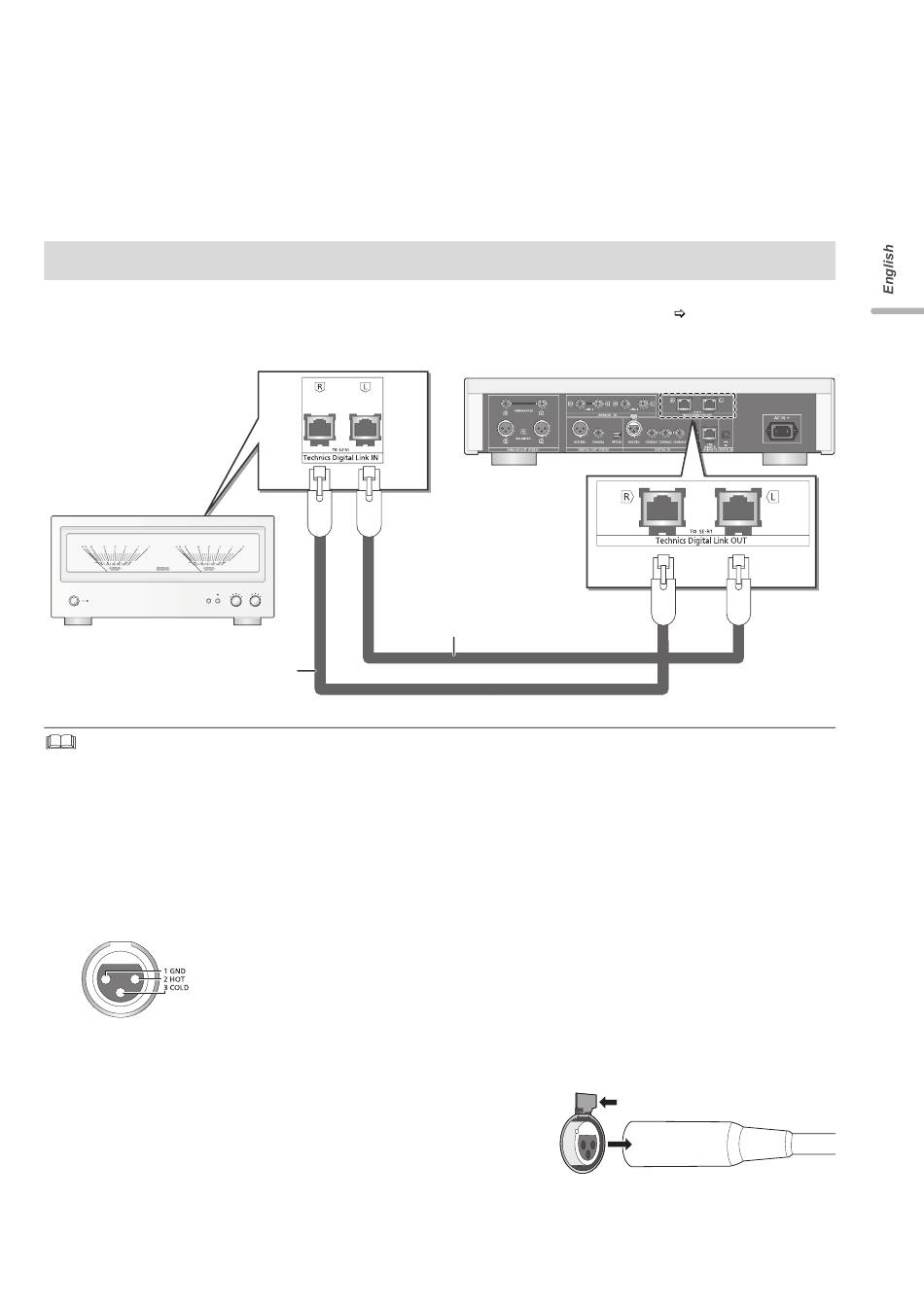

System control connection to an SE-R1
≥ You can output digital audio signals from this unit and play back music.
≥ You can automatically link this unit with the SE-R1 and operate them easily with the remote control. (
SE-R1
Cable for system control
(not supplied)
≥ Use category 7 or above straight LAN cables (STP) when connecting to peripheral devices.
≥ We recommend using cables with a length of 3 m (9.9 ft) or less.
≥ The system terminal and the LAN port are identical in shape. Be careful not to mistakenly connect either of the cables for system control
connected to the system terminal of the SE-R1 to the LAN port.
≥ Do not connect an SE-R1 in any other way than described above.
∫ Polarity of the balanced audio terminals
Insert the cable pins so that their polarities match the polarities of the holes.
∫ To disconnect the balanced cables
Pull out the cables while pressing [PUSH] at the top of the terminals.
Cable for system control
(not supplied)
