SECTION 6 |

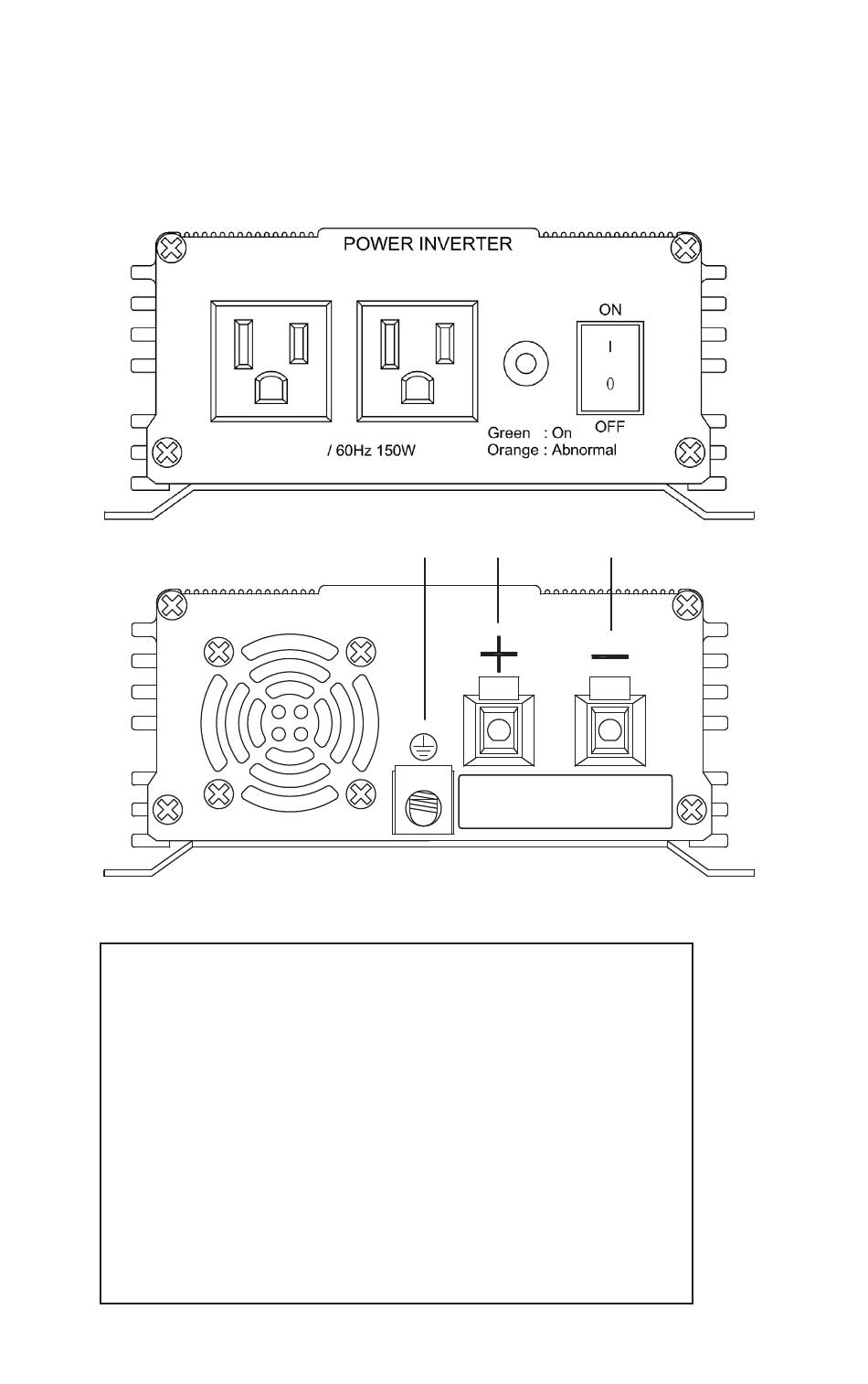

6.1 FRONT AND BACK LAYOUTS
PST-150: Front
4
PST-150: Back
LEGEND
1. NEMA5-15R Outlet
2. Status LED - Power "ON" (GREEN)
Status LED - Abnormal (ORANGE)
3. ON/OFF Switch
4. Air-exhaust openings for cooling fan
(cooling fan is behind this opening)
5. Grounding Terminal
6. Positive DC Input Terminal
7. Negative DC Input Terminal
8. Air-suction slots for cooling fan (At the bottom. Not shown)
Fig. 6.1: Layout of PST-150-12 and PST-150-24

Layout

1
1
120VAC
2
5 6
WARNING: REVERSE POLARITY WILL
DAMAGE THE UNIT.
AVERTISSEMENT : INVERSION DE
POLARITÉ PEUT ENDOMMAGER L'UNITÉ.
3
7
SAMLEX AMERICA INC. | 17
