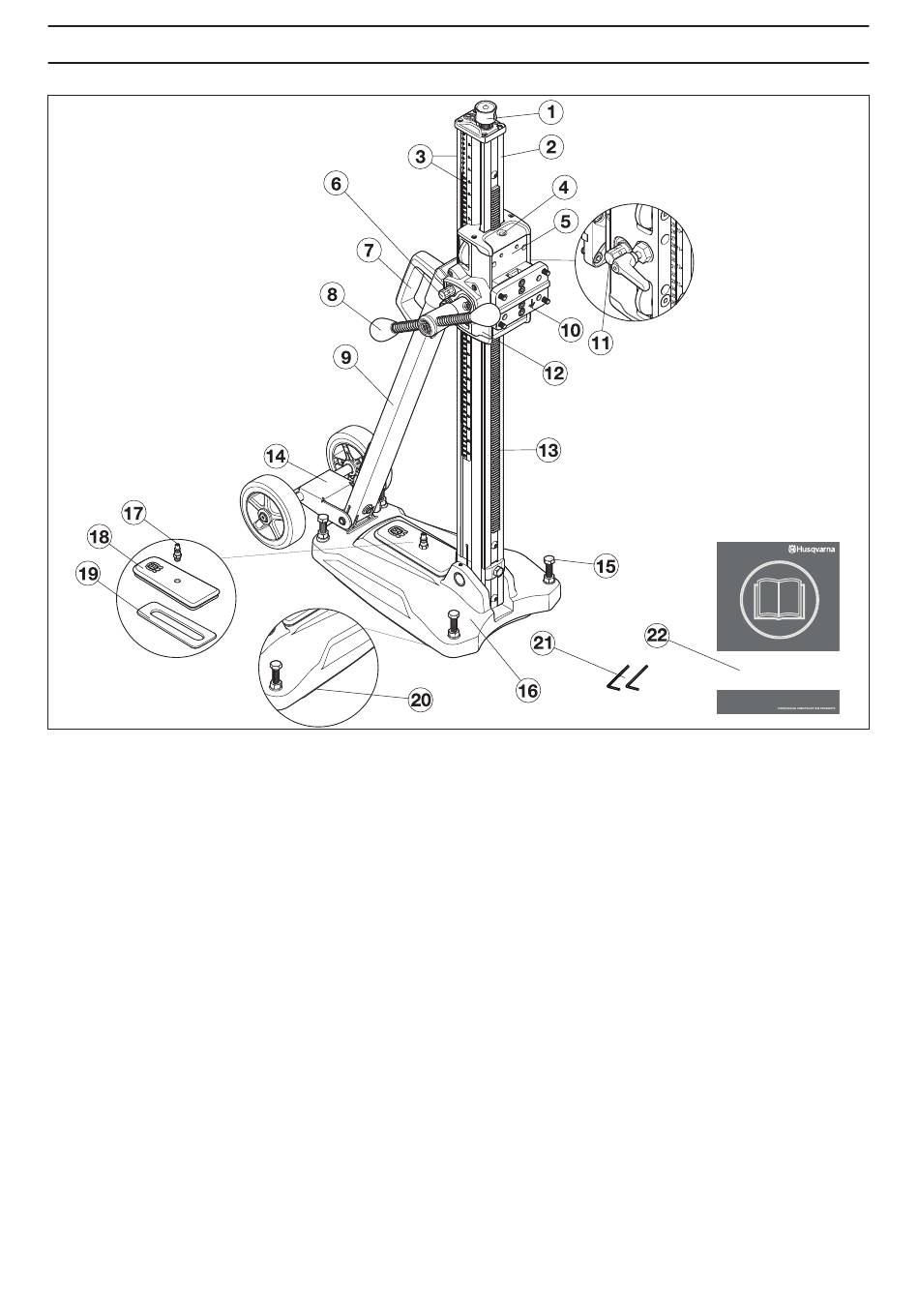

What is what on the stand?

1 Jacking screw
2 Drill column
3 Depth and tilt scale
4 Vertical and horizontal level indicator
5 Carriage
6 Locking screw, column tilt
7 Carrying handle
8 Feed lever
9 Back support
10 Quick mounting
11 Carriage lock

WHAT IS WHAT?

12 Gear box
13 Gear rack
14 Wheel set (removable)
15 Leveling adjustment screws
16 Base plate with integrated vacuum function
17 Quick coupling for vacuum pressure
18 Vacuum cover
19 Gasket, vacuum cover
20 Gasket, base vacuum suction
21 Allen key (3 mm, 4 mm)
22 Operator's manual
